Vishay Bridge Rectifier 50 V 50 A 4-Pin Single Surface Mount DFS Package DF005S-E3/77

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 50 V 50 A 4-Pin Single Surface Mount DFS Package DF005S-E3/77

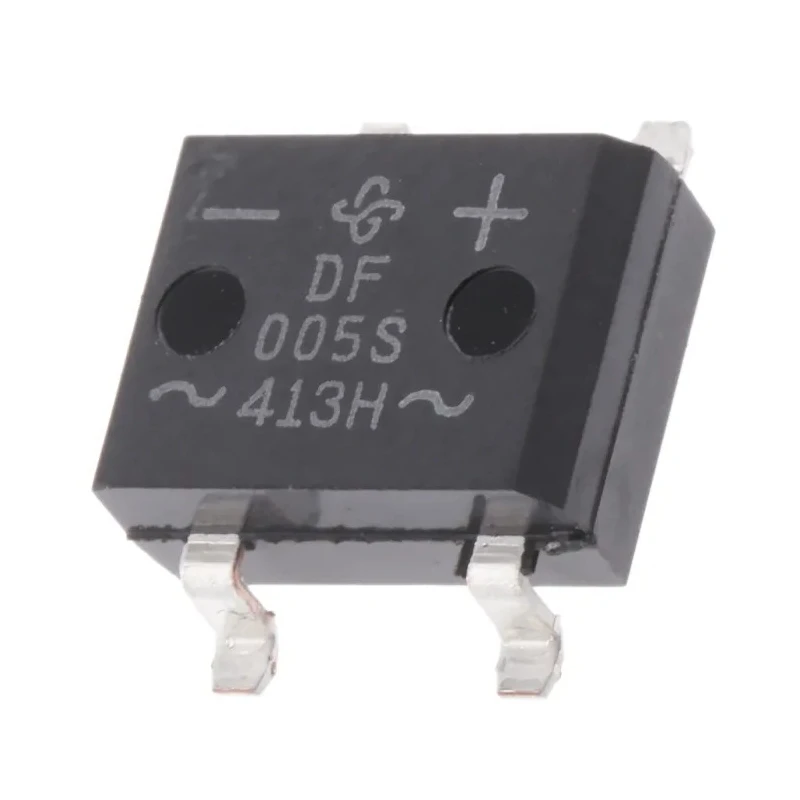

Name: Vishay Bridge Rectifier 50 V 50 A 4-Pin Single Surface Mount DFS Package DF005S-E3/77
Brand: Vishay
SKU: 127793
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	DF005S-E3/77
Width	6.5mm
Mount Type	Surface
Series	DF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	50V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V

Key Features

Features a DFS package ideal for reliable PCB surface mounting.
Handles a forward current of 1 ampere with a peak reverse voltage of 50 volts.
Maximum operating temperature is rated at 150°C for robust thermal performance.
Supports high surge current with peak non-repetitive forward surge current of 50 amperes.
Compact device dimensions measuring 8.51 mm length, 6.5 mm width, and 3.3 mm height.
Low peak forward voltage drop of 1.1 V ensures efficient rectification.
Operates reliably under a wide temperature range from -55°C to 150°C.
Low peak reverse current leakage of 5 μA enhances device efficiency.

Product Description

Vishay DF005S-E3/77 Bridge Rectifier is a compact and reliable semiconductor device designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification in single-phase applications. Packaged in a DFS surface mount package, it offers excellent thermal performance and space-saving installation suitable for high-density printed circuit boards.

Equipped to handle a forward current of 1 A and peak reverse voltage of 50 V, this device also supports high surge currents up to 50 A, making it well suited for industrial and power electronics applications requiring robust performance under transient conditions. Its low forward voltage drop of 1.1 V helps maximize efficiency of power conversion.

The rectifier operates reliably across a broad temperature range from -55°C to 150°C, ensuring stable performance in demanding environments. The device's peak reverse current leakage is minimal at 5 μA, minimizing power losses and contributing to energy-efficient electronics.

Manufactured in China, this bridge rectifier is ideal for use in automated manufacturing settings due to its surface mount design, facilitating quick and precise placement on circuit boards. It is commonly employed in power supplies, industrial control systems, and electronic instrumentation requiring efficient full-wave rectification.

Features a DFS package for compact PCB surface mounting. Rated for forward current of 1 A and peak reverse voltage of 50 V. Supports peak surge current up to 50 A for transient robustness. Operates efficiently with a low forward voltage drop of 1.1 V.

Wide operating temperature from -55°C to 150°C enhances versatility. Low leakage current of 5 μA reduces energy loss. Compact dimensions enable space-saving PCB design. Ideal for automated assembly and industrial electronics applications.

Enables reliable full-wave rectification in power conversion circuits. High thermal performance for demanding environments.

This Vishay bridge rectifier is a vital component for industrial, power supply, and manufacturing applications requiring reliable AC to DC conversion with high surge current capability and low power loss. Explore Vishay products and Bridge Rectifiers on EnvMart for efficient and durable electronic components.
