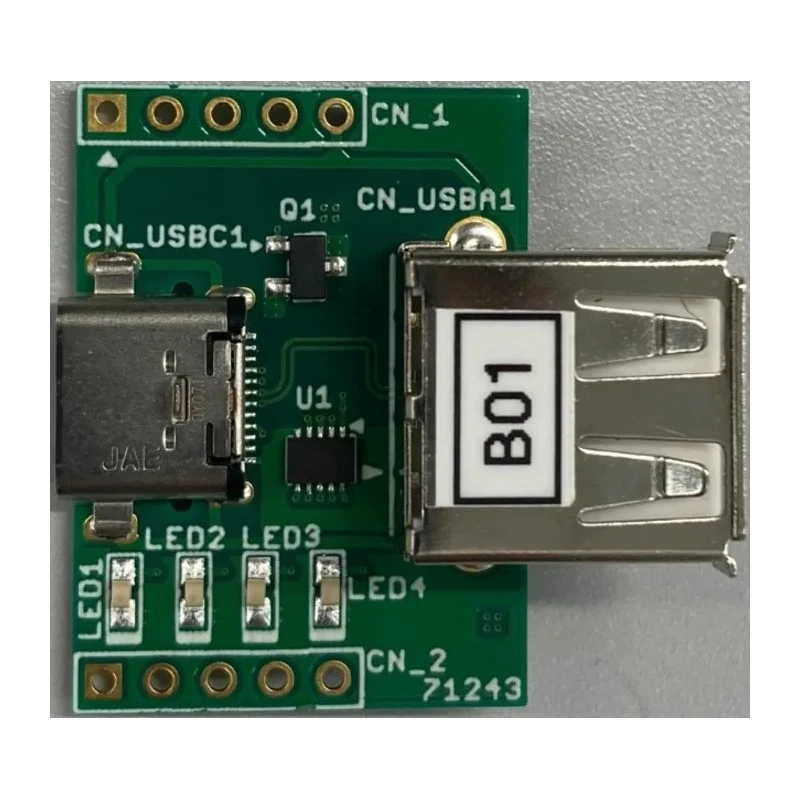

ROHM Type C Detector for Sink Evaluation Kit BD91N01NUX EVK for Type-C Cable BD91N01NUX

ROHM BD91N01NUX Type C Detector Evaluation Kit (Model BD91N01NUX EVK) is designed specifically for assessing Type-C cable behavior in sink device applications. The Evaluation Board utilizes the BD91N01NUX stand-alone Type-C detector integrated circuit.

This EVK setup includes a Type-A receptacle that receives power from a source device connected via the Type-C VBUS receptacle, allowing evaluation of Type-C source devices. The device eliminates the need for an external power supply by operating solely on VBUS power, simplifying evaluation setups.

Engineers can evaluate Type-C features by connecting USB Type-A captive cables or devices such as a mouse or USB memory stick to the Type-A port provided. The kit adheres to the USB Standard and connected source requirements, ensuring compliance with industry standards.

This evaluation kit is suitable for development engineers in electronics, power management, and USB device manufacturing, enabling thorough testing of Type-C sink functionalities. This evaluation kit contains the BD91N01NUX stand-alone Type-C detector IC.

Includes a Type-A receptacle powered by Type-C VBUS source device connection. Requires no external power supply for operation. Validates USB Type-C cable and device connectivity for sink applications. Complies with USB Standard for source devices.

Ideal for development and testing of USB Type-C sink devices. Explore more power management and electronic development tools in our Electronics & Electricals category at EnvMart.
