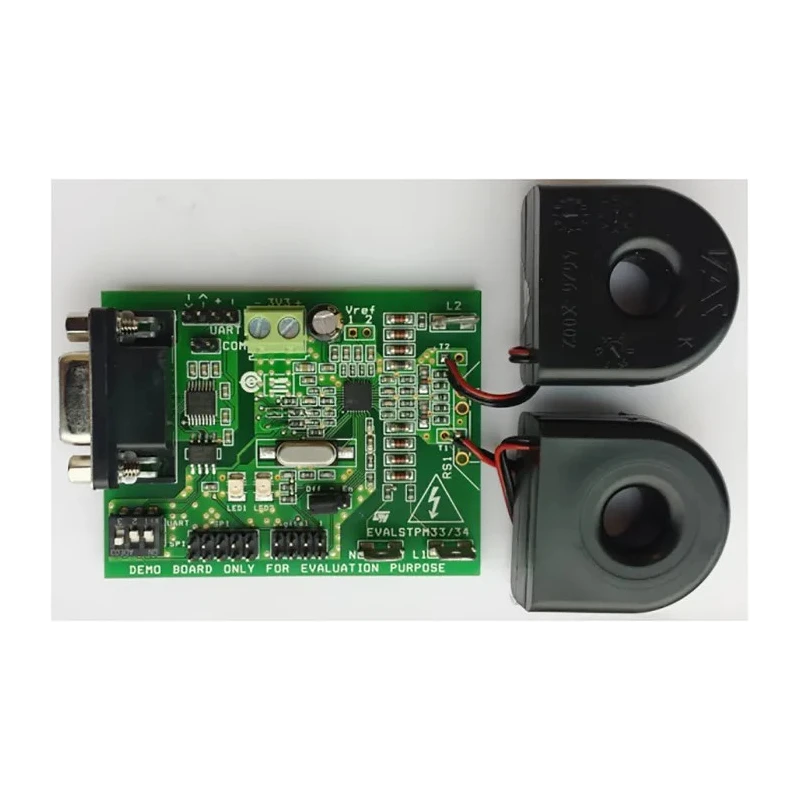

STMicroelectronics Energy Metering Evaluation Board for STPM34 Power Line System EVALSTPM34
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVALSTPM34 |
| For Use With | Power Line System |
| Standards/Approvals | RoHS |
| Featured Device | STPM34 |
| Kit Name | Energy Metering Evaluation Board |
Key Features
- Features 2 CTs enabling accurate measurement of active and reactive power.
- Provides programmable LEDs to output measured power directly on the board.
- Interfaces with PC via isolated RS232 port or USB through STEVAL-IPE023V1 tool.
- Supports SPI/UART connections for microcontroller integration and development.
- Operates reliably in ambient temperatures from -40 to +85 °C and frequency range 50/60 Hz ± 10%.
- Certified RoHS compliant and manufactured in Italy.
Product Description
STMicroelectronics EVALSTPM34 Energy Metering Evaluation Board is engineered as a high-precision class 0.2, dual-phase energy metering tool specifically tailored for power line systems with nominal voltage ranging from 140 to 300 V(RMS) and nominal current ratings of 5 A to 100 A(RMS). It accurately measures active and reactive power, displaying results via two programmable LEDs on the board.
The evaluation board is compatible with PC-based evaluation software and can be interfaced through an isolated RS232 port or the STEVAL-IPE023V1 USB isolated interface tool, facilitating seamless configuration and data acquisition. Additionally, SPI and UART pins enable direct connection to microcontrollers, thus supporting application development and integration.
Designed to perform reliably within industrial and laboratory temperature conditions from -40 °C up to +85 °C, and operating over a frequency range of 50/60 Hz ± 10%, the board is ideal for power measurement tasks in harsh environments. Its robust construction and adherence to RoHS standards ensure environmental compliance.
This board finds applications in electrical power monitoring, industrial instrumentation, and development projects requiring precise energy metering for power line systems. It is an essential development tool for engineers designing or testing energy metering solutions.
Features 2 CTs enabling accurate measurement of active and reactive power. Provides programmable LEDs to output measured power directly on the board. Interfaces with PC via isolated RS232 port or USB through STEVAL-IPE023V1 tool.
Supports SPI/UART connections for microcontroller integration and development. Operates reliably within -40 to +85 °C ambient temperature range and 50/60 Hz ± 10% frequency. RoHS compliant and manufactured in Italy. Explore the comprehensive range of Evaluation Boards and sensor development tools available at EnvMart for industrial, laboratory, and development applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EVALSTPM34 is engineered as a high-precision class 0.2 energy metering tool, allowing for accurate measurement of active and reactive power.
It supports a nominal voltage range from 140 to 300 V(RMS).
The board can measure nominal current ratings from 5 A to 100 A(RMS).
It can interface with a PC via an isolated RS232 port or through USB using the STEVAL-IPE023V1 isolated interface tool.
It operates reliably in ambient temperatures from -40 °C to +85 °C.
It supports a frequency range of 50/60 Hz ± 10%.
It supports SPI and UART connections for direct integration with microcontrollers.
The evaluation board features two programmable LEDs that output the measured power directly on the board.
Yes, it is certified RoHS compliant, ensuring it meets environmental standards.
It is designed for applications in electrical power monitoring, industrial instrumentation, and development projects requiring precise energy metering for power line systems.
This evaluation board is manufactured in Italy.
The featured device on this board is the STPM34.
