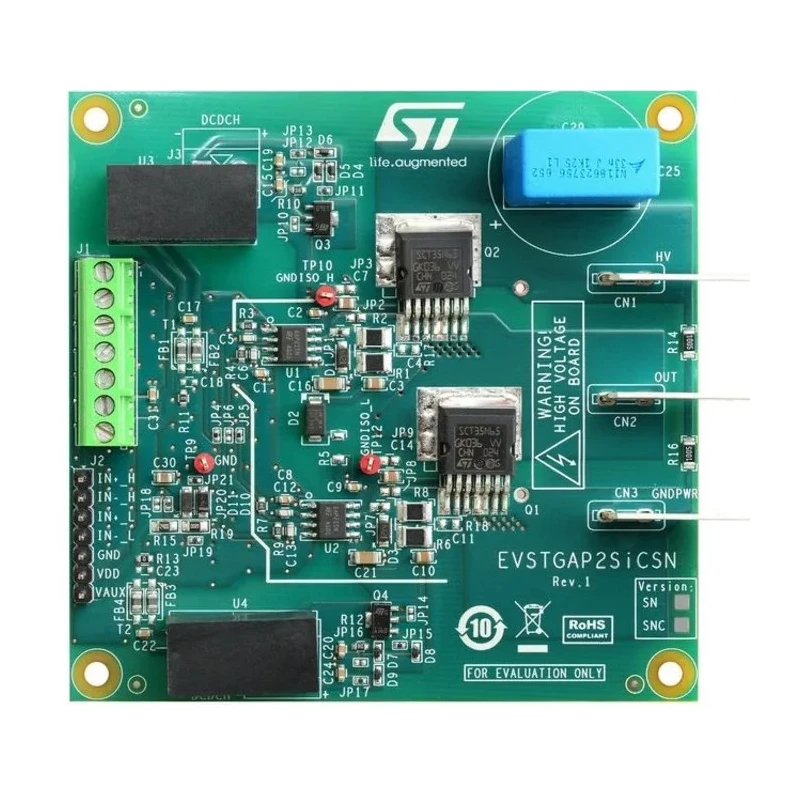

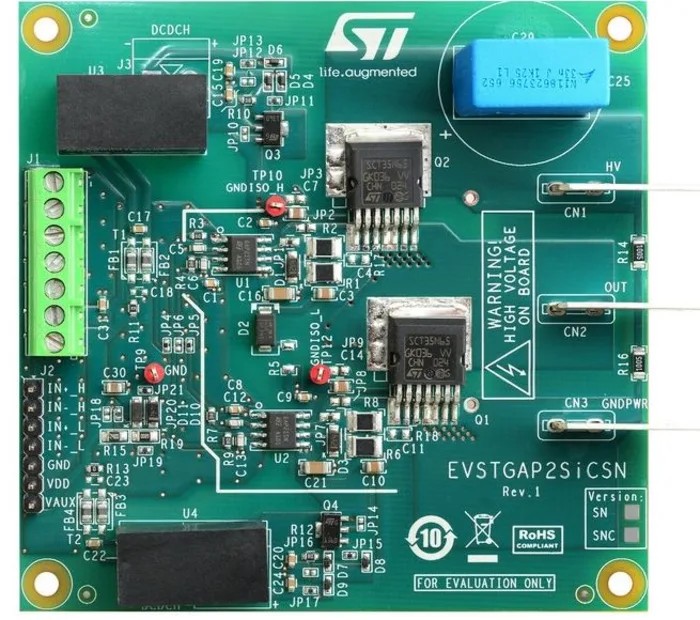

STMicroelectronics Demonstration Board for STGAP2SICSN Isolated 4 A Single Gate Driver EVSTGAP2SICSN
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | EVSTGAP2SICSN |
| For Use With | STGAP2SICSN Gate Driver |
| Kit Classification | Evaluation Board |
| Featured Device | STGAP2SICSN |
| Kit Name | Demonstration board for STGAP2SICSN isolated 4 A single gate driver |
Key Features
- The board supports high power inverter applications such as motor drivers in industrial environments.
- Features a half-bridge configuration with 4 A current capability and rail-to-rail outputs.
- Includes short propagation delay of 75 ns for fast switching performance.
- Incorporates negative gate driving and temperature shutdown protection for safety.
- Kit is classified as an evaluation board for development and testing purposes.
Product Description
The STMicroelectronics EVSTGAP2SICSN demonstration board is designed to evaluate the STGAP2SICSN isolated single gate driver with a 4 A current drive capability. This board targets industrial and high power inverter applications, such as motor drivers equipped with silicon carbide (SiC) power switches.
The gate driver features rail-to-rail outputs providing excellent drive performance. A short propagation delay of 75 ns ensures high-speed switching and efficiency. Additional functionalities include negative gate driving and thermal shutdown protection, enhancing reliability and protecting the device during operation.
This evaluation board allows engineers to test and integrate the STGAP2SICSN driver into their systems effectively, making it suitable for power management applications in the industrial electronics sector.
The board supports 4 A peak current suitable for driving SiC power MOSFETs. Short propagation delay minimizes switching losses during operation. Negative gate drive capability protects devices from false triggering. Thermal shutdown prevents damage from overheating conditions.
Ideal for development in motor control and power inverter systems.
STMicroelectronics demonstration boards are widely used across industrial and power electronics applications, including HVAC systems, manufacturing automation, and motor drive solutions.
Explore more evaluation boards and semiconductor solutions in EnvMart’s Motor Driver and Evaluation Board categories for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This board supports a peak current capability of 4 A, making it suitable for driving SiC power MOSFETs in high power inverter applications.
The gate driver features a short propagation delay of 75 ns, ensuring high-speed switching performance.
It is designed for industrial applications, particularly for motor drivers and high power inverters equipped with silicon carbide (SiC) power switches.
Yes, it incorporates negative gate driving and thermal shutdown protection to enhance reliability and prevent damage during operation.
This board is classified as an evaluation board, intended for development and testing purposes.
The featured device of this demonstration board is the STGAP2SICSN gate driver.
The country of origin for this demonstration board is India.
The gate driver features rail-to-rail outputs, ensuring excellent drive performance for connected devices.
It is primarily used for testing and integrating the STGAP2SICSN driver into systems for power management applications.
The model number of this evaluation board is EVSTGAP2SICSN.
Yes, it is widely used in various industrial applications, including HVAC systems, manufacturing automation, and motor drive solutions.
The board supports a half-bridge configuration, which is common in high power inverter applications.
