STMicroelectronics VNH7070AS Evaluation Board Motor Driver for VNH7070AS H-Bridge

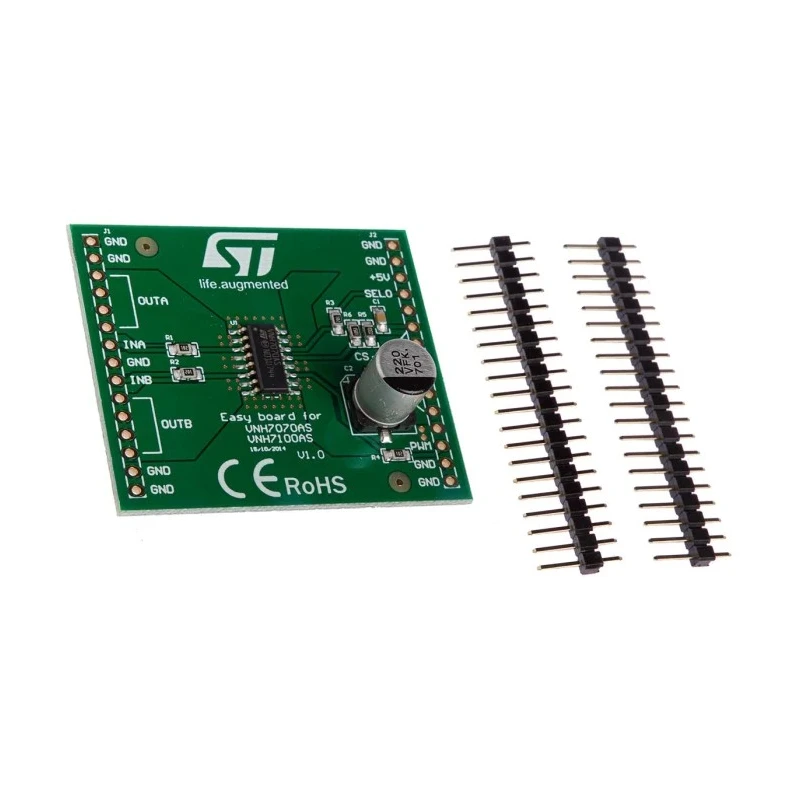

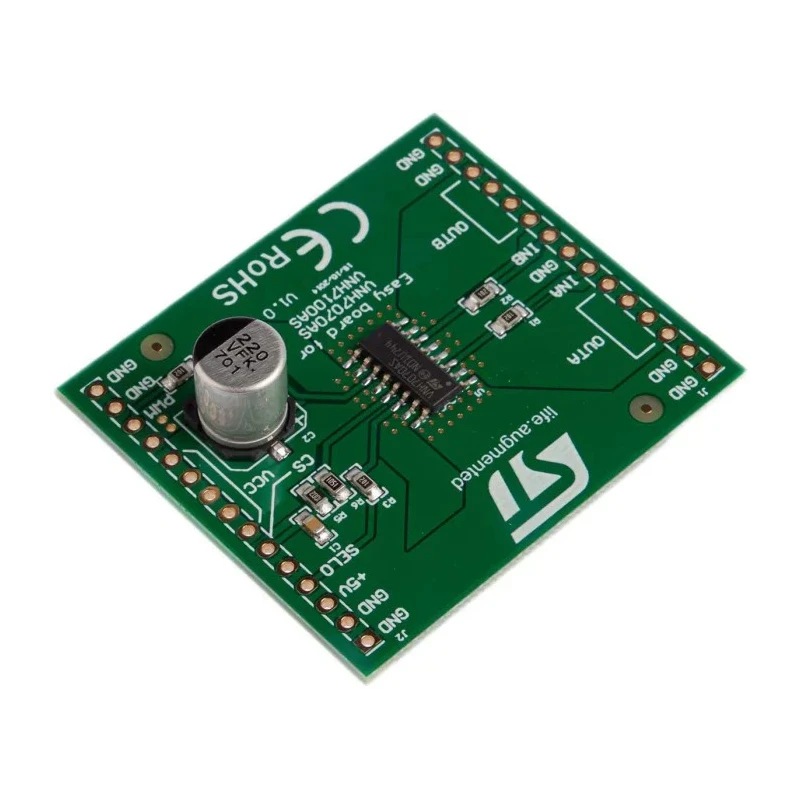

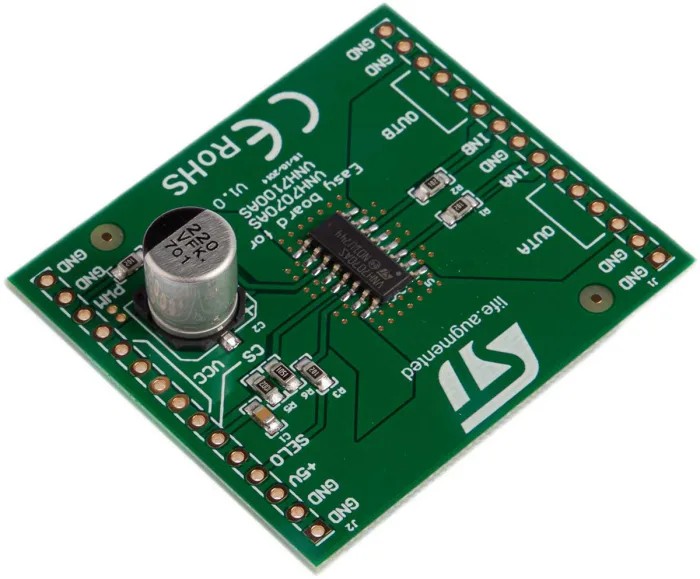

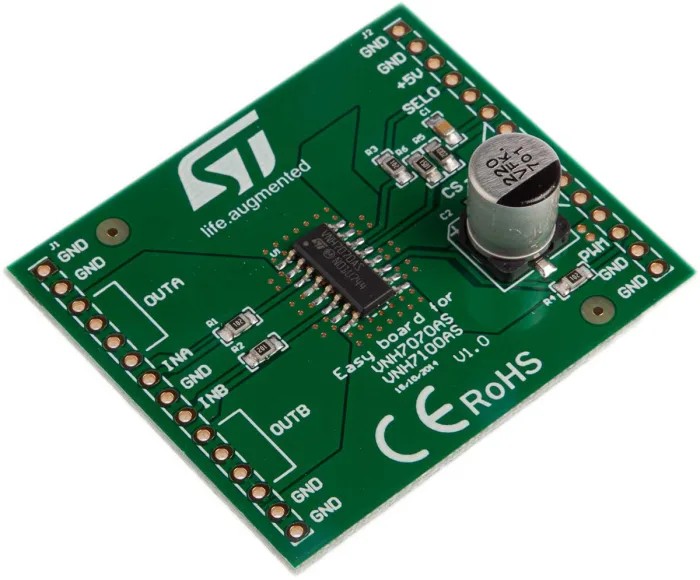

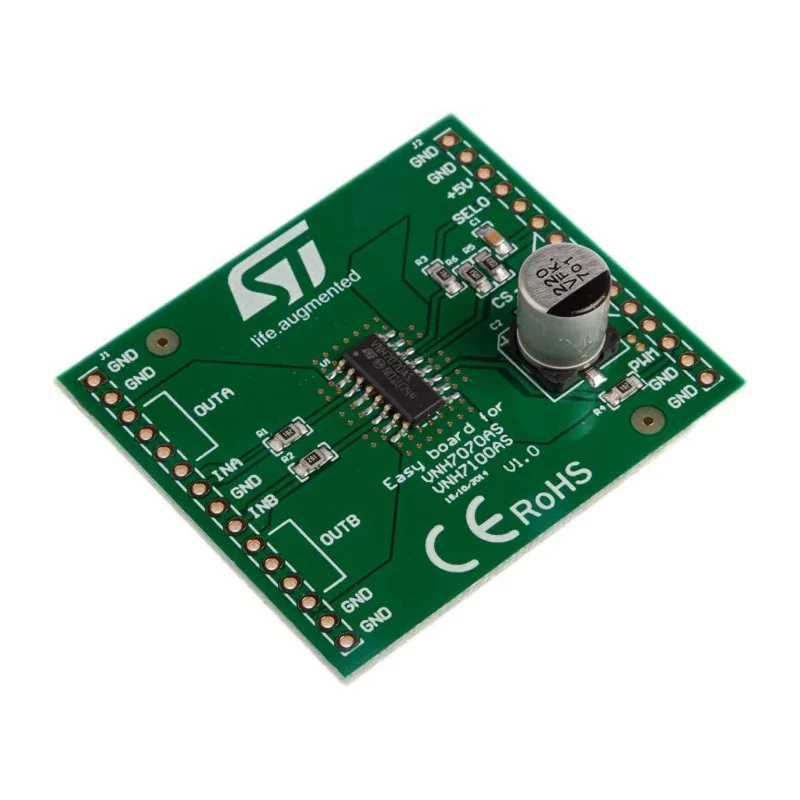

STMicroelectronics VNH7070AS Evaluation Board EV-VNH7070AS is designed as a motor driver for the VNH7070AS H-Bridge. This evaluation board features a compact design integrating a dual monolithic high-side driver with two low-side switches built using ST proprietary VIPower® M0 technology. It offers a low on-state resistance of 70 milliohms per channel and operates over a voltage range of 4 V to 28 V, supporting output currents up to 15 A. The device simplifies prototyping by providing all necessary electrical components on board, allowing direct connection to load, power supply, and microcontroller without additional external circuitry.

This evaluation board is suitable for a broad range of industrial and commercial applications such as factory automation, motor control for fans and pumps, HID ballasts, and power supply units. Its efficient design with integrated thermal heat-sinking facilitates robust operation under demanding conditions. The board is RoHS compliant, ensuring adherence to environmental standards.

Applications include DC-DC and DC-AC converters, industrial and home appliance motor drivers, and robotics. The ease of integration and comprehensive feature set make it valuable for engineers developing motor driver solutions.

Low on-state resistance of 70 milliohms per channel enhances efficiency. Wide operating voltage from 4 V to 28 V accommodates various motor types. High output current capability of up to 15 A supports demanding loads. Integrated dual monolithic drivers reduce system complexity.

ST VIPower® M0 technology ensures effective power management and protection. Simplified connections enable rapid development and testing. Thermal heat-sinking improves reliability in prolonged use. Ideal for industrial automation, robotics, and power electronics development.

Explore more Evaluation Boards and motor driver products to support your engineering and development needs at EnvMart.
