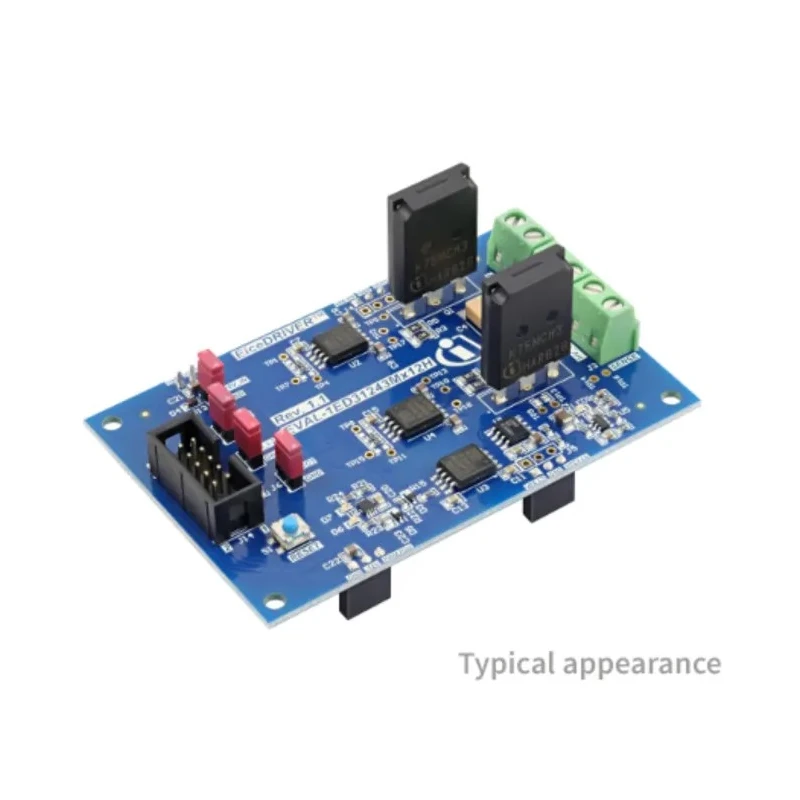

Infineon Evaluation Board MOSFET for 1ED3124MX12H in Half-Bridge Configuration with TRENCHSTOP IGBT EVAL1ED3124MX12HTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | EVAL1ED3124MX12HTOBO1 |
| For Use With | Motors |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | 1ED3124MX12H |
| Kit Name | Evaluation Board |
Key Features
- The board features a half-bridge configuration with two 1ED3124MU12H gate driver ICs.
- Includes TRENCHSTOP IGBT IKQ75N120CH3 as power switches for high efficiency.
- Incorporates an additional gate driver IC for isolated over-current feedback from high voltage side to logic control side.
- Equipped with a fast operational amplifier functioning as a comparator for over-current detection.
- Integrated filters reduce the need for external filtering components.
- Tight propagation delay enables minimum dead time and reduces harmonic distortion.
- UL 1577 certification supports superior application safety and high isolation capability.
- Suitable for 1500 V DC solar inverter applications and advanced motor controls.
Product Description
Infineon EVAL1ED3124MX12HTOBO1 is an advanced evaluation board MOSFET designed specifically for motor applications and double-pulse testing. It comprises a half-bridge configuration utilizing two 1ED3124MU12H gate driver ICs to control power switches like IGBTs and SiC MOSFETs. The board includes the TRENCHSTOP IGBT IKQ75N120CH3, which ensures efficient switching performance. An additional gate driver IC facilitates isolated over-current feedback from the high voltage side to the logic control domain, enhancing safety and control precision.
The evaluation board integrates a fast operational amplifier acting as a comparator for precise over-current detection. This setup minimizes external component requirements by incorporating integrated filters, which effectively reduce electromagnetic noise and improve system reliability. Tight propagation delay characteristics provide minimal dead time, optimizing system efficiency and reducing harmonic distortion in the motor drive signals.
Certified to UL 1577 standards, the board offers high isolation capability, making it suitable for demanding industrial applications such as 1500 V DC solar inverters and motor control systems. Its design ensures superior application safety and operational robustness in power management scenarios.
The half-bridge configuration with dual gate driver ICs enables precise motor control. TRENCHSTOP IGBT IKQ75N120CH3 provides efficient power switching capabilities. Isolated over-current feedback enhances protection and system monitoring.
Fast comparator operational amplifier ensures reliable over-current detection. Integrated filtering reduces electromagnetic interference effectively. Minimal dead time improves efficiency and lowers harmonic distortion. UL 1577 certification ensures high safety and isolation standards.
Ideal for industrial applications including solar inverter motor drives.
This Infineon Evaluation Board is essential for industrial, manufacturing, robotics development, power management, HVAC, and renewable energy sectors. It supports engineers in validating MOSFET gate driver setups and optimizing motor controller designs. Explore more electronic components and power management devices within EnvMart’s comprehensive portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board features a half-bridge configuration utilizing two 1ED3124MU12H gate driver ICs to control power switches such as IGBTs and SiC MOSFETs.
It includes the TRENCHSTOP IGBT IKQ75N120CH3 as the power switch for efficient switching performance.
The board is certified to UL 1577 standards, ensuring high safety and isolation capabilities.
It is suitable for 1500 V DC solar inverter applications and advanced motor control systems.
It incorporates a fast operational amplifier functioning as a comparator for precise over-current detection, along with an additional gate driver IC for isolated feedback.
The board integrates filters that effectively reduce electromagnetic noise, minimizing the need for additional external filtering components.
It is primarily used for validating MOSFET gate driver setups and optimizing motor controller designs in various industrial applications.
The country of origin for this evaluation board is India.
It complies with RoHS standards, ensuring that it meets environmental regulations regarding hazardous substances.
The model number of this evaluation board is EVAL1ED3124MX12HTOBO1.
This evaluation board is designed for use with motors in various applications, including robotics and power management.
The tight propagation delay enables minimal dead time, optimizing system efficiency and reducing harmonic distortion in motor drive signals.
