TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 2A Output Current TSR 2-24120

Free Delivery in India | Lowest Global Shipping Charges

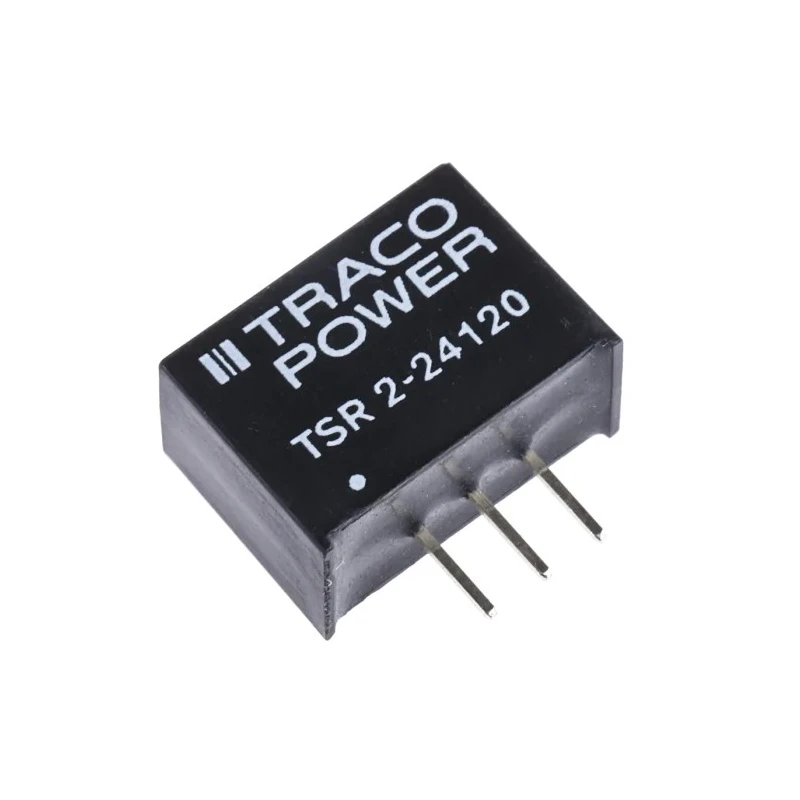

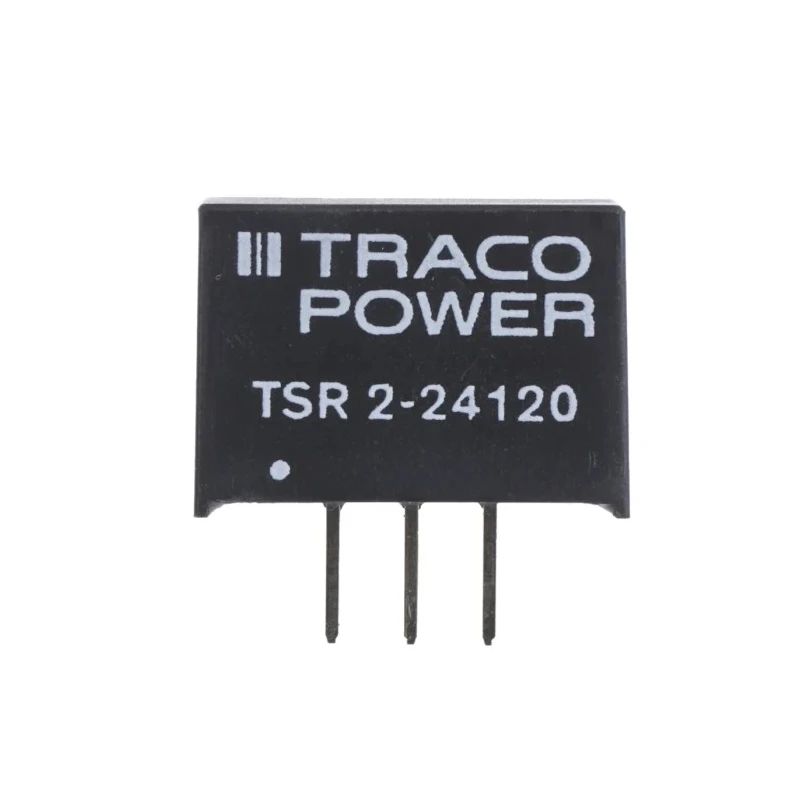

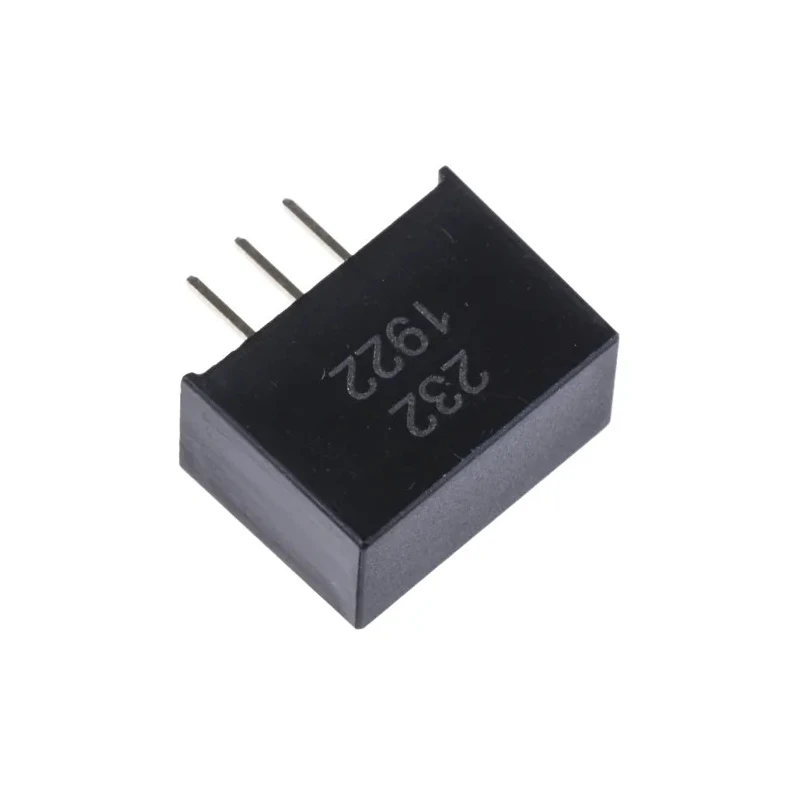

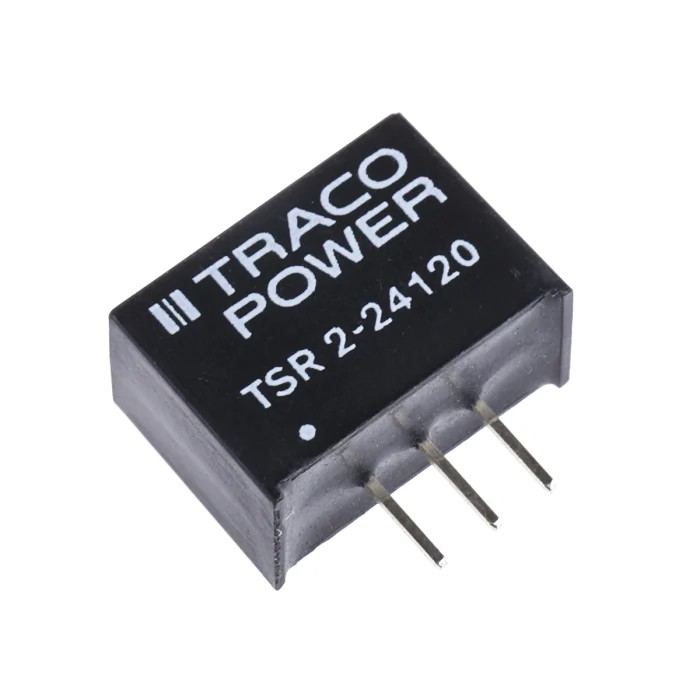

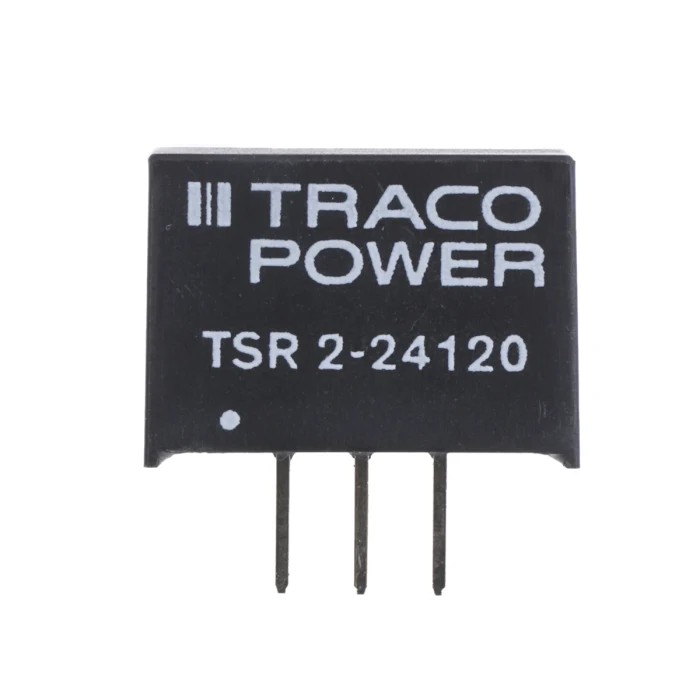

TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 2A Output Current TSR 2-24120

Name: TRACOPOWER Switching Regulator Through Hole 12V DC Output Voltage 2A Output Current TSR 2-24120
Brand: TRACOPOWER
SKU: 149641
Price: 179.26 USD
Availability: InStock



Category Switching Regulator Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Efficiency	95%
Length	14mm
Model	TSR 2-24120
Depth	10.1mm
Gross Weight	2.6g
Width	7.5mm
Mount Type	Through Hole
Series	TSR 2
Output Current	2A
Maximum Operating Temperature	85°C
Package Type	SIP-3
Load Regulation	1 %
Minimum Operating Temperature	-40°C
MTBF	13520000h
Number of outputs	1
Ripple and Noise	75mV Pk-Pk
Maximum Input Voltage	36V dc
Line Regulation	0.5 %
Standards/Approvals	UL 94 V-0, UL 60950-1, IEC/EN 60950-1, MIL-STD-810F
Minimum Input Voltage	15V
Output Voltage 1	12V dc

Key Features

Supports input voltage range from 15V to 36V DC.
Maintains 95% efficiency with low ripple and noise of 75mV Pk-Pk.
Continuous short-circuit protection with automatic recovery enhances reliability.
Operates in extreme temperatures from -40°C to +85°C.
Compact SIP-3 package with through-hole mounting for easy PCB integration.
Pin-compatible with LMxx linear regulators for quick system upgrades.
Robust construction meeting UL 94 V-0 and IEC/EN standards ensures durability.
Mean time between failures (MTBF) exceeds 13 million hours for long-term use.

Product Description

TRACOPOWER TSR 2-24120 is a high-performance switching regulator delivering 12V DC output voltage at 2A output current. It is designed for through-hole mounting on PCBs and packaged in a compact SIP-3 form factor.

This regulator supports an input voltage range of 15V to 36V DC and achieves an efficiency of 95%, minimizing power losses and improving system reliability. The built-in capacitors reduce ripple and noise to just 75mV peak-to-peak, ensuring smooth and clean power delivery.

Featuring continuous short-circuit protection with automatic recovery, this model prevents downtime and safeguards connected equipment. The device functions reliably across a wide operating temperature range from -40°C to +85°C, suited to harsh industrial and aerospace environments.

Constructed to meet international standards such as UL 94 V-0, UL 60950-1, and IEC/EN 60950-1, the TSR 2-24120 offers exceptional safety and durability. With a mean time between failures (MTBF) of over 13 million hours, it guarantees long service life in critical applications.

Pin-compatible with popular LMxx linear regulators, it facilitates effortless upgrades in existing designs. Typical applications include industrial electronics, aerospace engineering, and medical equipment where stable and efficient power conversion is critical.

Supports input voltage range from 15V to 36V DC. Maintains 95% efficiency with low ripple and noise of 75mV Pk-Pk. Continuous short-circuit protection with automatic recovery enhances reliability. Operates in extreme temperatures from -40°C to +85°C.

Compact SIP-3 package with through-hole mounting for easy PCB integration. Pin-compatible with LMxx linear regulators for quick system upgrades. Robust construction meeting UL 94 V-0 and IEC/EN standards ensures durability.

Mean time between failures (MTBF) exceeds 13 million hours for long-term use. Ideal for industrial electronics, medical equipment, and aerospace engineering applications. Explore a diverse catalog of Switching Regulators and power management products at EnvMart for optimized power solutions in your industrial and electronic projects.
