STMicroelectronics Evaluation Board EVALST-ISOSD61L with 16 bit ADC Resolution EVALST-ISOSD61L

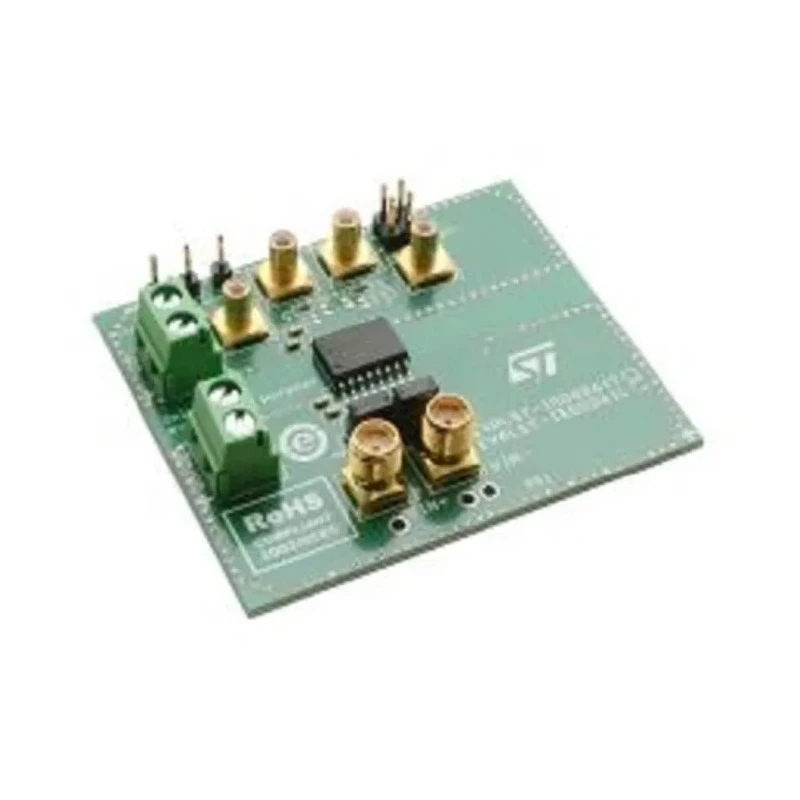

STMicroelectronics EVALST-ISOSD61L Evaluation Board is a fully featured development platform designed to allow users to evaluate all functionality of the ISOSD61L isolated analogue to digital converter with 16 bit resolution. The ISOSD61L device incorporates a 1-bit sigma-delta modulator whose output buffer is separated from the input interface circuitry by a galvanic isolation barrier, enhancing signal integrity and safety.

This evaluation board supports low voltage differential signalling and offers galvanic isolation rated at 6 kV, providing robust protection against voltage spikes and noise in industrial environments. It can accommodate an external clock input up to 25 MHz, enabling high-speed data acquisition.

The device supports a ±320 mV full scale differential input signal range, enabling precise analogue measurements, and provides a high common-mode transient immunity of 30 kV per microsecond, which ensures reliable performance even in electrically noisy conditions.

The EVALST-ISOSD61L board is suitable for industrial, laboratory, and embedded system applications where isolated analogue to digital conversion is required for high-accuracy measurement and control. This evaluation platform facilitates rapid prototyping and testing of the ISOSD61L device features, making it ideal for signal conversion development tools.

Designed for ISOSD61L isolated ADC evaluation. Galvanic isolation provides 6 kV protection. Supports external clock input up to 25 MHz. Offers ±320 mV differential input signal range. High common-mode transient immunity of 30 kV/μs.

1-bit sigma-delta modulator architecture. Low voltage differential signalling for signal integrity. Explore the full range of signal conversion development tools and Evaluation Boards to complement this product on EnvMart.
