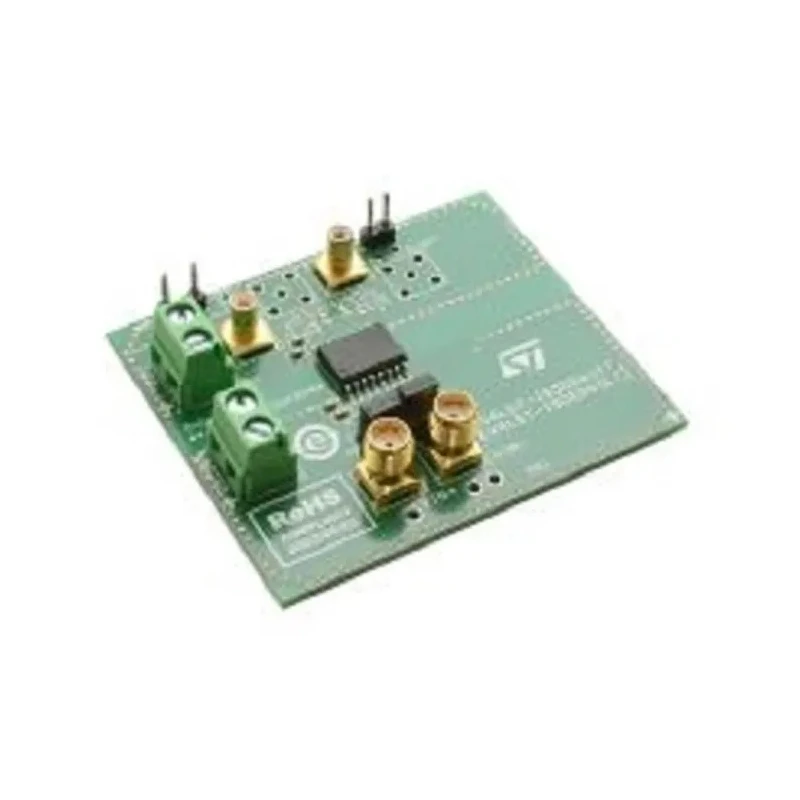

STMicroelectronics Evaluation Board 16-bit Resolution ADC with 6 kV Galvanic Isolation EVALST-ISOSD61T
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | STMicroelectronics |
| Model | EVALST-ISOSD61T |
| For Use With | ISOSD61 |
| Standards/Approvals | RoHS |
| Featured Device | ISOSD61 |
| Kit Name | EVALST-ISOSD61T |
| Converter Type | ADC |
Key Features
- The board supports a 16-bit resolution ADC with no missing codes.
- The ISOSD61 device incorporates a 1-bit sigma delta modulator and galvanic isolation.
- Provides galvanic isolation up to 6 kV for safe signal conversion.
- Accepts up to 25 MHz external clock input for flexible operation.
- Supports a full scale differential input signal range of ±320mV.
- Designed for use with the ISOSD61 device for isolated signal conversion applications.
- Ideal for industrial, laboratory, and electronic development use cases.
Product Description
STMicroelectronics EVALST-ISOSD61T evaluation board is designed to comprehensively evaluate the ISOSD61 isolated analogue to digital converter, featuring a 16-bit resolution with no missing codes to ensure precise digital representation of analogue signals.
The board integrates the ISOSD61 device, a 1-bit sigma delta modulator with an output buffer electrically isolated by a galvanic isolation barrier up to 6 kV, which provides safety and noise immunity in critical signal measurement applications.
This evaluation board supports an external clock input frequency of up to 25 MHz, enabling flexible timing configurations for various application requirements. The differential input signal range (+/- 320 mV full scale) allows for accurate measurement of small amplitude signals.
This product is intended for use in industrial electronic design, development labs, and educational settings where evaluation of isolated analogue to digital conversion is required. It offers a reliable platform for testing and integration with the ISOSD61 device.
With RoHS compliance and robust build quality, the EVALST-ISOSD61T is suitable for applications requiring electrical isolation and high resolution digital conversion. The board delivers 16-bit ADC resolution with zero missing codes for accuracy.
Includes galvanic isolation of 6 kV to enhance signal integrity and safety. Supports up to 25 MHz external clock frequency for versatile operation. Full scale differential input ±320mV allows precise analogue signal measurement.
Designed for full functional evaluation of the ISOSD61 converter device. Applications range from industrial monitoring to academic research and development. RoHS compliant evaluation board ensuring environmentally safe usage.
Explore the full range of signal conversion development tools available at EnvMart. This Evaluation Board by STMicroelectronics complements our extensive portfolio of semiconductor and development products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board features a 16-bit resolution ADC with no missing codes, ensuring precise digital representation of analog signals.
It supports an external clock input frequency of up to 25 MHz, allowing for flexible timing configurations.
The board accepts a full scale differential input signal range of ±320 mV, enabling accurate measurement of small amplitude signals.
This evaluation board provides galvanic isolation up to 6 kV, enhancing signal integrity and safety in critical measurement applications.
It is designed for use with the ISOSD61 isolated analogue to digital converter, allowing for full functional evaluation of the device.
Yes, this evaluation board is RoHS compliant, ensuring environmentally safe usage.
It is suitable for industrial electronic design, development labs, and educational settings where evaluation of isolated analogue to digital conversion is required.
The board features an ADC (Analog to Digital Converter) type, specifically the ISOSD61 device.
The country of origin for this evaluation board is India.
The ISOSD61 device incorporates a 1-bit sigma delta modulator and provides isolated signal conversion, ensuring safety and noise immunity.
Yes, it includes features such as galvanic isolation and a 16-bit ADC resolution with zero missing codes for accurate signal measurement.
The kit name for this evaluation board is EVALST-ISOSD61T, which is designed for evaluating the ISOSD61 device.
