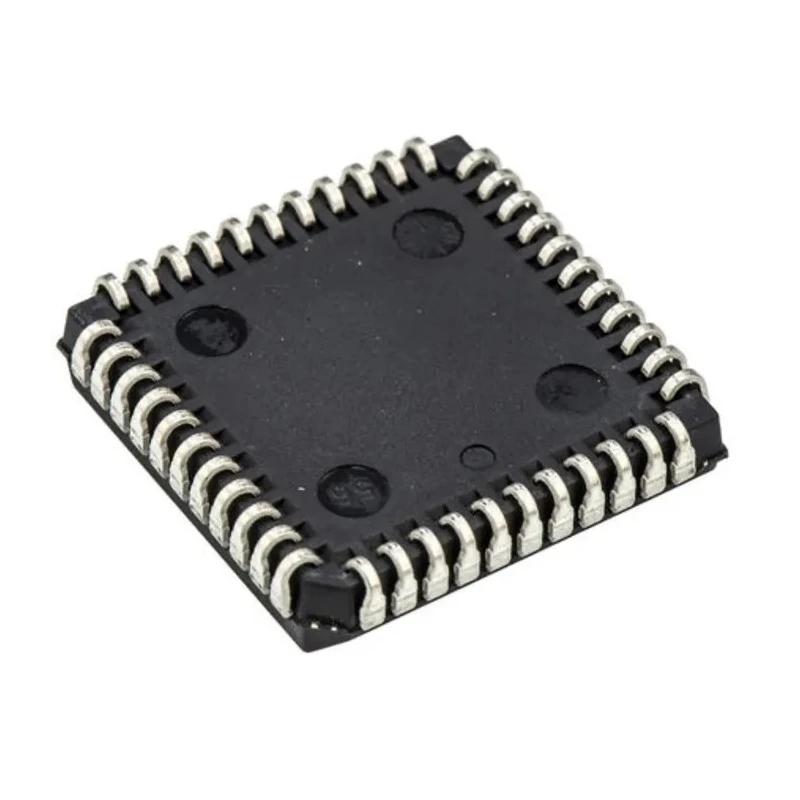

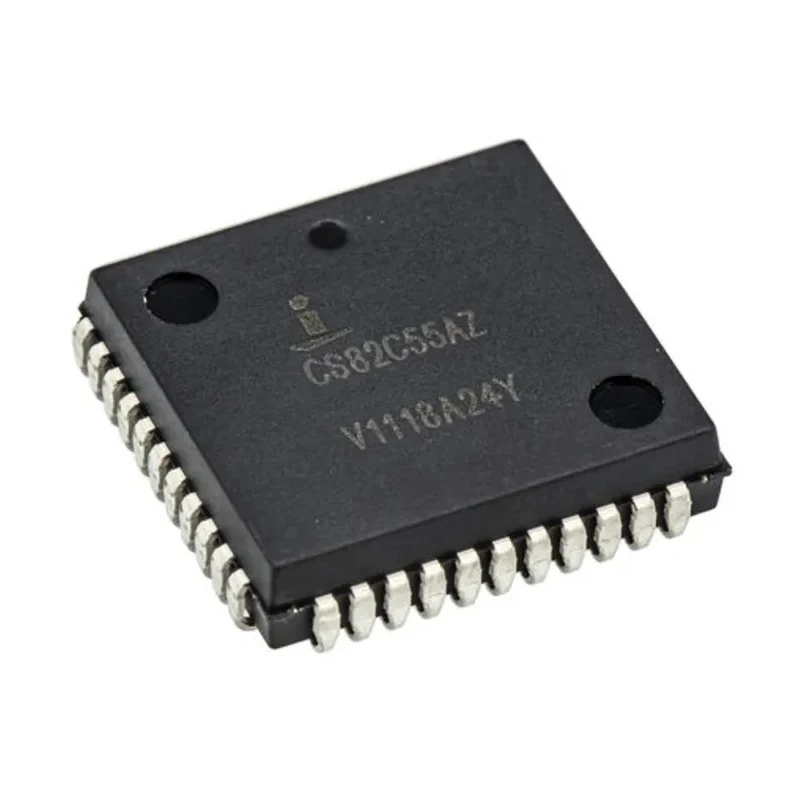

Renesas Electronics IO Controller 24 I/O, 44-Pin PLCC Package CS82C55AZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 4.57mm |
| Length | 16.66mm |
| Model | CS82C55AZ |
| Mount Type | Surface |
| Series | 82C55A |
| Maximum Operating Temperature | 70°C |
| Package Type | PLCC |
| Sub Type | I/O Controller Interface |
| Minimum Operating Temperature | 0°C |
| Interface Type | TTL |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Number of I/O Channels | 24 |
| Intersil CS82C55AZ, Input Output Controller, 44-Pin PLCCBrand | Intersil |
Key Features
- Supports 24 I/O channels for versatile peripheral interfacing.
- Surface mount package type enhances PCB space efficiency.
- TTL interface type ensures compatibility with common logic levels.
- Operates within temperature range of 0°C to 70°C suitable for various environments.
- Compact 44-pin PLCC packaging with dimensions 16.66 mm length by 4.57 mm height.
- Maximum supply voltage rated at 5.5V for stable operation.
- Includes series 82C55A CMOS programmable peripheral interface.
- Designed for parallel interface peripheral applications.
Product Description
Renesas Electronics CS82C55AZ is a 24-channel input/output controller packaged in a 44-pin PLCC format. It supports TTL interface communication and operates within a supply voltage range of 4.5V to 5.5V. This device provides reliable peripheral control and interfacing capabilities essential for semiconductor and electronic component applications.
The controller is designed for surface mount PCB applications, offering a compact form factor with dimensions measuring 16.66 mm in length and 4.57 mm in height. It operates efficiently in ambient environments from 0°C up to 70°C, making it suitable for industrial and commercial electronic assemblies.
This IC belongs to the series 82C55A family of CMOS programmable peripheral interfaces known for stable operation and parallel interface support. It excludes features such as LAN control, PCI support, IDE controller functionality and serial ATA interfaces, focusing instead on general-purpose I/O control.
24 input/output channels enable flexible peripheral connections. Surface mount PLCC package saves board space and simplifies assembly. TTL interface ensures compatibility with standard logic voltage levels. Wide operating temperature range for dependable performance.
Compact physical dimensions support modern PCB design constraints. CMOS technology provides low power consumption and enhanced reliability. Parallel interface peripherals compatibility for diverse applications. Not suitable for automotive or PCI-LAN specific purposes.
Ease of integration makes it ideal for semiconductor and industrial electronics.
This Renesas Electronics CS82C55AZ IO controller is suited for use in industrial machines, measuring instruments, and other electronic control systems requiring programmable peripheral interfaces. It supports improvements in production efficiency via reliable device operation. Explore EnvMart’s range of semiconductor input/output controllers to find compatible components for your industrial and manufacturing automation needs.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the CS82C55AZ is rated at 5.5V.
This model supports 24 input/output channels for versatile peripheral interfacing.
The CS82C55AZ is packaged in a 44-pin PLCC format, which is suitable for surface mount applications.
It operates efficiently within a temperature range of 0°C to 70°C.
This unit uses a TTL interface type, ensuring compatibility with common logic levels.
The dimensions of this model are 16.66 mm in length and 4.57 mm in height.
This IO controller belongs to the 82C55A series of CMOS programmable peripheral interfaces.
No, this model is not suitable for automotive or PCI-LAN specific purposes.
The minimum supply voltage required for this model is 4.5V.
It supports surface mounting, which enhances PCB space efficiency.
This model is designed for parallel interface peripheral applications in industrial machines and electronic control systems.
The country of origin for the CS82C55AZ is India.
