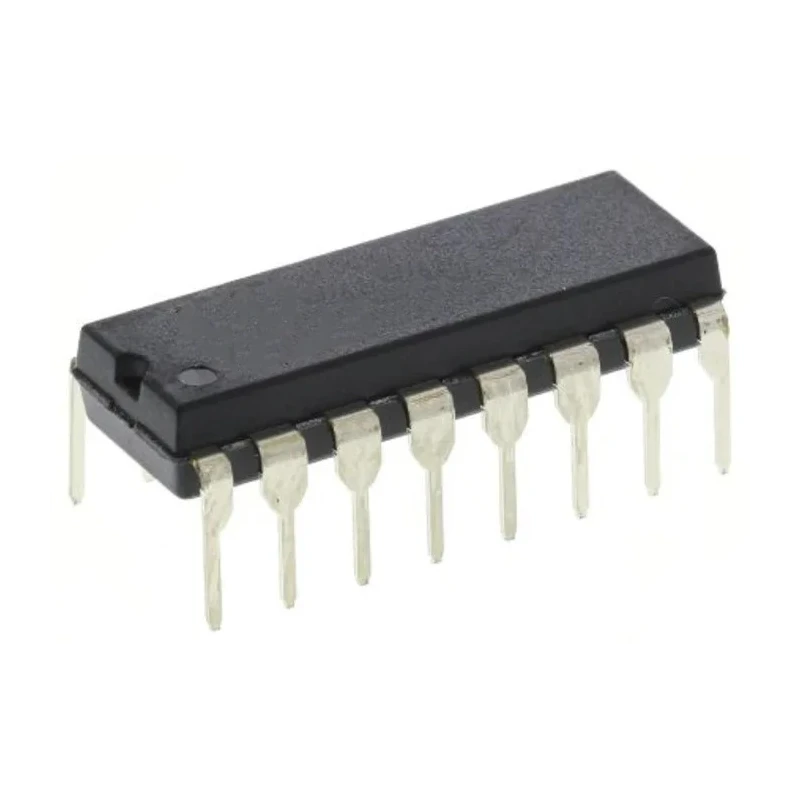

Renesas Electronics Line Transceiver 3 State Inverting TTL CMOS 16-Pin PDIP HIN232ECPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 5.33mm |
| Length | 19.68mm |
| Model | HIN232ECPZ |
| Width | 8.25mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | HIN232E |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS/TTL |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 15mA |
Key Features
- Operates with a single 5V power supply for convenience and efficiency.
- Compatible with TTL and CMOS input logic families.
- Provides a maximum propagation delay time of 10 microseconds at CL.
- Designed for through-hole mounting with a compact PDIP package.
- Supports operating temperatures from -40°C to 85°C for industrial use.
- Low supply current of 15mA ensures minimal power consumption.
- Complies with RS-232E and V.28 signal standards, ensuring compatibility in serial communication.
- Ideal for applications lacking +/-12V power availability.
Product Description
Renesas Electronics HIN232ECPZ is a line transceiver IC designed for serial communication applications requiring RS-232E and V.28 standard compliance. It operates on a single 5V supply voltage and supports TTL and CMOS input logic, making it versatile for interfacing between different logic families.
This transceiver features a 3 state output and inverting polarity suitable for reliable data transmission and reception. Its 16-pin PDIP package ensures easy through-hole mounting and integration in a variety of electronic systems.
The device has a maximum propagation delay time of 10 microseconds at capacitive load, enabling efficient signal timing for high-speed data communication. Operating temperature ranges from -40°C to 85°C, allowing use in industrial and commercial environments.
The HIN232ECPZ has a low power consumption with supply current of 15mA, contributing to energy-efficient designs. Dimensions are compact with length of 19.68mm, width of 8.25mm, and height of 5.33mm. It is not designed to meet automotive standards.
This transceiver is particularly useful in applications where the typical +/-12V power supply for RS-232 communication is not available, given its onboard voltage doubler and inverter circuitry.
Operates from a single +5V power supply for simplified power design. Supports both TTL and CMOS input logic families. 3 state output ensures flexible line driving capability. Inverting logic polarity suitable for standard RS-232 communication protocols.
Through-hole mountable 16-pin PDIP package type for easy PCB integration. Wide operating temperature range from -40°C up to +85°C for robust industrial performance. Low supply current consumption of 15mA for energy efficient applications.
Compatible with RS-232E and V.28 standards for serial interface communication. Compact physical dimensions suited for dense electronic assemblies.
This product is ideal for industrial, electronic manufacturing, and embedded system applications requiring reliable serial data transceivers. Browse our Electronics Components category for related line interface ICs and semiconductors to fulfill your system design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V.
It operates within a temperature range of -40°C to 85°C, suitable for industrial applications.
This unit is compatible with both TTL and CMOS input logic families.
The maximum propagation delay time is 10 microseconds at capacitive load.
It comes in a 16-pin PDIP package type designed for through-hole mounting.
The supply current for this model is 15mA, contributing to low power consumption.
The output type is a 3 state output, providing flexible line driving capabilities.
The dimensions are 19.68mm in length, 8.25mm in width, and 5.33mm in height.
It complies with RS-232E and V.28 signal standards for serial communication.
The polarity type is inverting, suitable for standard RS-232 communication protocols.
It is particularly useful in applications where +/-12V power supply for RS-232 communication is not available.
The country of origin for this product is India.
