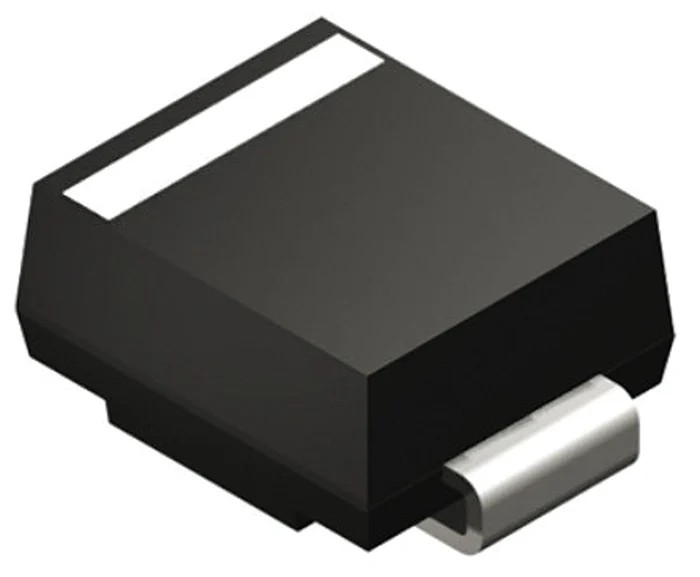

HY Electronic Corp Schottky Barrier Rectifier Diode 100 V 5 A Surface Mount DO-214AA SS510B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS510B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 850mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Maximum continuous forward current of 5 A ensures durability under high current loads.
- Peak reverse repetitive voltage rated at 100 V provides reliable operation in power rectification.
- Compact DO-214AA package type with dimensions of 4.7 mm length and 3.94 mm width.
- Operating temperature range from -55°C to 150°C makes it suitable for wide temperature environments.
- Polarity is clearly indicated by a cathode band for proper installation.
- Designed with epitaxial construction and metal-semiconductor junction with guarding for improved performance.
- Compatible with applications including free-wheeling, inverters, and polarity protection circuits.
- Constructed with a moulded plastic case complying with UL 94V-0 flammability classification for safety.
Product Description
HY Electronic Corp SS510B is a high-performance Schottky barrier rectifier diode engineered for surface mount technology. It supports a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 100 V, making it ideal for power electronics applications requiring efficient current flow and minimal loss.
This diode is packaged in a durable DO-214AA form factor offering compact dimensions of 4.7 mm length, 3.94 mm width, and 2.23 mm height. Its operating temperature range spans from -55°C to 150°C, allowing it to function reliably in industrial, automotive, and commercial electronics environments.
Featuring epitaxial construction and a metal-semiconductor junction with guarding, the SS510B provides low forward voltage drop of 850 mV, enhancing circuit efficiency. The diode's polarity is easily identified by a cathode band for correct mounting.
This diode finds versatile use in free-wheeling diodes in inductive loads, inverter circuits, and polarity protection in power supplies. Its moulded plastic case complies with UL 94V-0 fire safety standards, ensuring safe operation.
Maximum forward current of 5 A for robust current handling. Peak reverse voltage rating of 100 V for enhanced protection. DO-214AA surface mount package for compactness. Wide operating temperature range from -55°C to 150°C.
Low forward voltage drop increases efficiency. Polarity marking for easy identification. Suitable for industrial, automotive, and electronic circuit applications. Flame retardant plastic case adhering to UL 94V-0 standards.
Explore the range of HY Electronic Corp Schottky diodes at EnvMart for reliable power and semiconductor electronic components.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the SS510B is 5 A, allowing it to handle high current loads effectively.
This diode has a peak reverse repetitive voltage rating of 100 V, providing reliable operation in power rectification applications.
The DO-214AA package of this model has dimensions of 4.7 mm in length, 3.94 mm in width, and 2.23 mm in height.
The operating temperature range for this diode is from -55°C to 150°C, making it suitable for various environmental conditions.
The polarity of the SS510B is clearly indicated by a cathode band, ensuring proper installation.
It is designed with epitaxial construction and a metal-semiconductor junction, which enhances its performance.
This diode is compatible with applications such as free-wheeling, inverters, and polarity protection circuits.
The maximum forward voltage drop for the SS510B is 850 mV, which contributes to increased circuit efficiency.
The peak non-repetitive forward surge current rating for this model is 150 A, allowing it to handle brief surges without damage.
This diode is constructed with a moulded plastic case that complies with UL 94V-0 flammability classification for safety.
The SS510B features a pin count of 2, suitable for surface mount applications.
The peak reverse current rating for the SS510B is 50 mA, indicating its performance under reverse voltage conditions.
