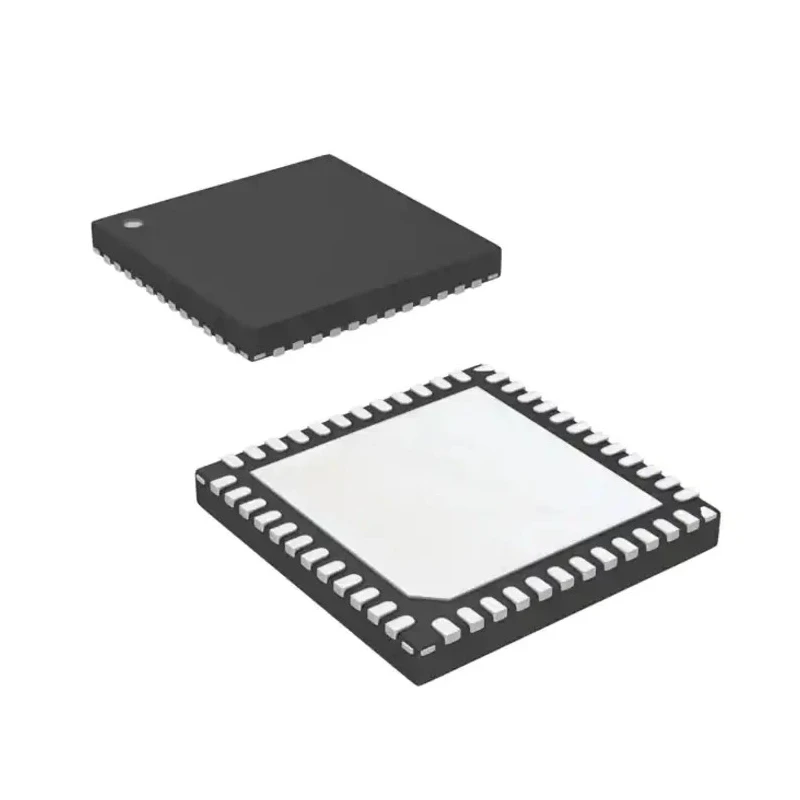

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3-3.6V 48-Pin QFN UPD720202K8-701-BAA-A

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3-3.6V 48-Pin QFN UPD720202K8-701-BAA-A

Name: Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3-3.6V 48-Pin QFN UPD720202K8-701-BAA-A
Brand: Renesas Electronics
SKU: 173289
Price: 6.18 USD
Availability: InStock



Category Electronics Components Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	850μm
Length	7mm
Model	UPD720202K8-701-BAA-A
Mount Type	Surface
Series	UPD720202
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	USB Host Controller IC
Minimum Operating Temperature	0°C
Interfaces	USB debugging capability on all super speed ports
Pin Count	48
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3.3V
Maximum Data Rate	12Mbps
Number of Transceivers	1
USB Specification	USB 3.0
Supported Protocols	USB 3.0

Key Features

This USB host controller supports USB 3.0 and xHCI 1.0 specifications for high-speed data transfer.
The device operates within a temperature range of 0°C to 85°C ensuring robust performance.
It offers USB debugging capability on all super speed ports and supports USB legacy function.
The surface mount 48-pin QFN package provides a compact footprint ideal for mobile computing devices.
Compliant with PCI Express Base Specification revision 2.0 and supports ExpressCard standard.

Product Description

Renesas Electronics UPD720202K8-701-BAA-A USB Controller is a 1-channel USB 3.0 host controller designed to meet USB 3.0 and xHCI 1.0 specifications. Operating with a dual supply voltage range from 3.3 V to 3.6 V, it is packaged in a compact 48-pin QFN surface mount form factor with a height of 850 μm and length of 7 mm.

This USB controller supports a maximum data rate of 12 Mbps and operates reliably within the temperature range of 0°C to 85°C. It does not include ESD protection but features USB debugging capability on all super speed ports and supports legacy USB functions, making it versatile for integration in mobile and computing devices such as laptops and notebooks.

Designed for low power consumption and compactness, this device reduces power usage and the PCB footprint in designs. The controller complies with the PCI Express Base Specification Revision 2.0 and supports latency tolerance reporting and ExpressCard standards, enhancing its compatibility in various industrial and commercial computing applications.

This USB host controller supports USB 3.0 and xHCI 1.0 specifications for high-speed data transfer. The device operates within a temperature range of 0°C to 85°C ensuring robust performance. It offers USB debugging capability on all super speed ports and supports USB legacy function.

The surface mount 48-pin QFN package provides a compact footprint ideal for mobile computing devices. Compliant with PCI Express Base Specification revision 2.0 and supports ExpressCard standard.

This product is widely used in industrial electronic assemblies, mobile computing devices, consumer electronics, and embedded systems where USB 3.0 interface functionality is required. The compact design and efficient power management make it suitable for integration in electronics demanding low power consumption and small form factor.
