onsemi 1 2-Input NOR Logic Gate, 5-Pin SOT-23 NC7S02M5X

Free Delivery in India | Lowest Global Shipping Charges

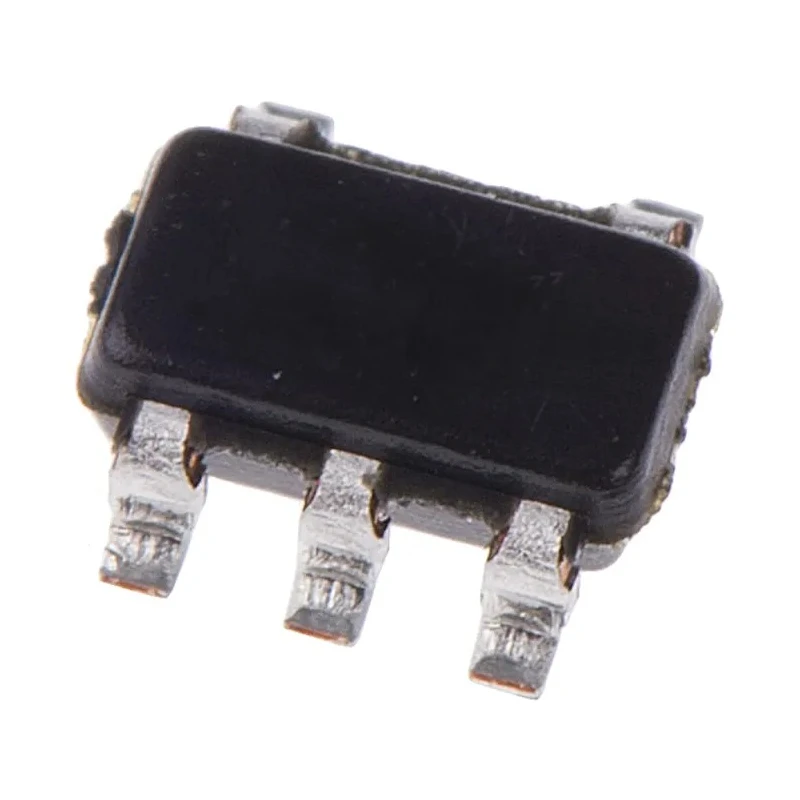

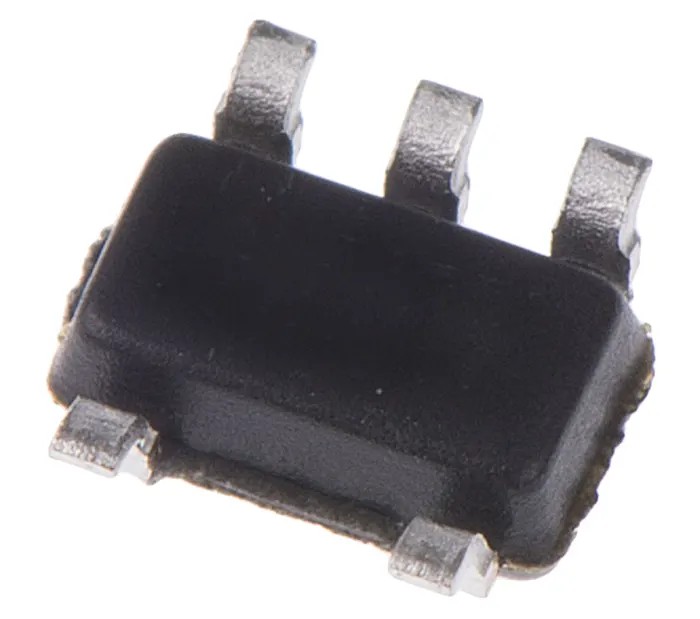

onsemi 1 2-Input NOR Logic Gate, 5-Pin SOT-23 NC7S02M5X

Name: onsemi 1 2-Input NOR Logic Gate, 5-Pin SOT-23 NC7S02M5X
Brand: onsemi
SKU: 207489
Price: 0.26 USD
Availability: InStock



Category Logic Gate Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.3mm
Length	3mm
Model	NC7S02M5X
Mount Type	Surface
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Maximum Supply Voltage	6V
Logic Family	TinyLogic HS
Logic Function	NOR
Minimum Supply Voltage	2V
Maximum High Level Output Current	-2.6mA
Maximum Propagation Delay Time @ CL	21ns
Maximum Low Level Output Current	2.6mA
Number of Inputs per Gate	2

Key Features

Operates at supply voltages from 2V to 6V for flexible power options.
Single element NOR gate with two inputs designed for efficient logic operations.
Small package size with dimensions 3 mm length and 1.3 mm height sets a space-saving footprint.
Maximum propagation delay time of 21 ns ensures high-speed switching performance.
Designed to operate across a wide temperature range from -40°C to 85°C for industrial reliability.
CMOS input type with TinyLogic HS family low power consumption and high-speed characteristics.
Surface mount device suitable for automated assembly on PCBs in industrial and electronics manufacturing.
Maximum output currents ±2.6 mA to drive suitable loads efficiently.

Product Description

The onsemi NC7S02M5X is a single 2-input NOR logic gate IC housed in a compact 5-pin SOT-23 surface mount package. Featuring CMOS input technology from the TinyLogic HS family, this device provides advanced high-speed operation combined with low power consumption. It supports a wide operating voltage range from 2V up to 6V, enabling use in various low voltage electronics and industrial control applications.

The gate exhibits a maximum propagation delay of 21 nanoseconds at capacitive load, ensuring fast switching suitable for timing critical systems. Designed for use in environments ranging from -40°C to 85°C, it offers robustness for industrial, automotive non-certified, and commercial electronics applications.

The small footprint of 3 mm length and 1.3 mm height allows for efficient PCB layout optimization, reducing routing complexity and electromagnetic interference. Its maximum output current of ±2.6 mA supports driving small loads or cascading into subsequent logic stages. The device lacks Schmitt Trigger input functionality, making it suitable for standard logic signal processing.

This part from the TinyLogic HS family complies with general semiconductor principles without specific standards or automotive certifications, making it ideal for a broad range of industrial, laboratory, and consumer electronics projects requiring NOR logic functionality.

Operates at supply voltages from 2V to 6V. Single 2-input NOR gate for logic operations. 5-pin SOT-23 surface mount package. Maximum propagation delay of 21 ns. Operating temperature range from -40°C to 85°C. CMOS input type with low power TinyLogic HS technology.

Output current ±2.6 mA maximum. Non-Schmitt Trigger input device. Suitable for industrial and electronic manufacturing applications.

Evaluate onsemi NC7S02M5X for your next electronics design requiring reliable, compact, and efficient NOR Logic Gate components. Explore additional logic family ICs in our semiconductor category for a full suite of logic functions.
