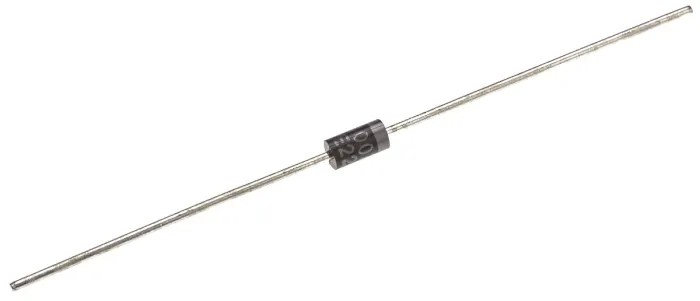

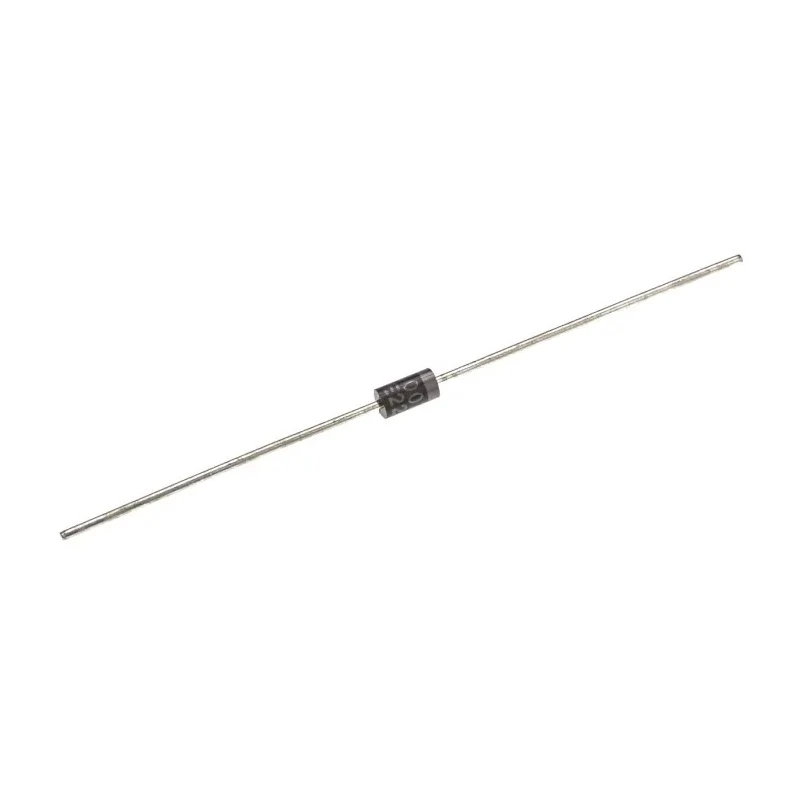

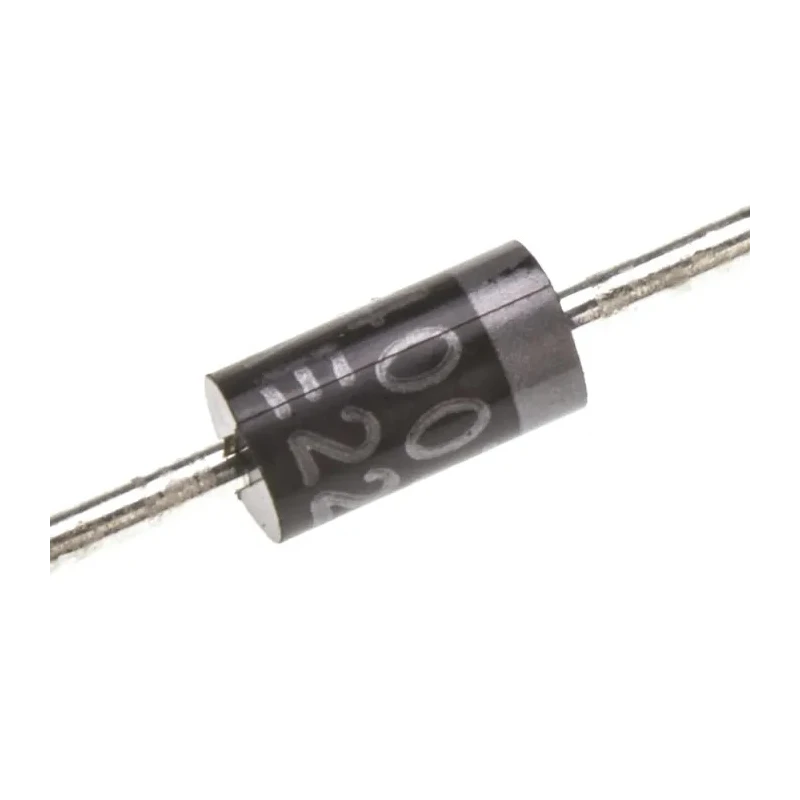

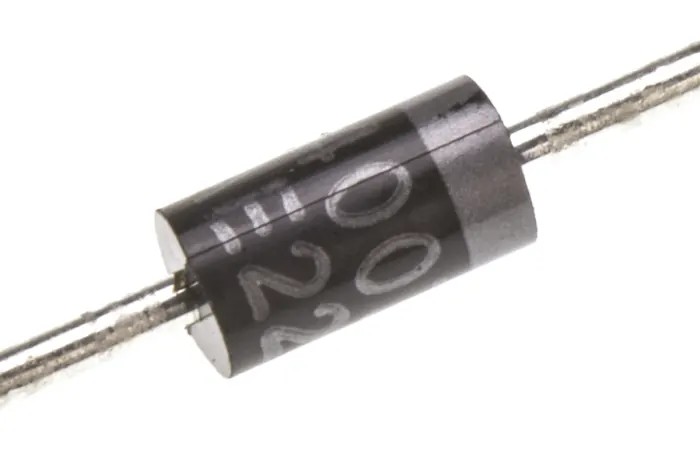

onsemi 1 kV 1 A Switching Diode Through Hole Package DO-41 UF4007
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.72mm |
| Length | 5.21mm |
| Model | UF4007 |
| Width | 2.72mm |
| Mount Type | Through Hole |
| Series | UF4007 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Features a low forward voltage drop to improve efficiency.
- Glass-passivated junction ensures high reliability and low leakage current.
- Maximum continuous forward current is 1 ampere.
- Peak repetitive reverse voltage rating of 1000 volts.
- Fast recovery time of 75 nanoseconds makes it ideal for switching applications.
- Operates reliably from -65°C up to 150°C junction temperature.
- Compact DO-41 plastic package measuring 5.21 mm in length and 2.7 mm in diameter.
- Supports a peak non-repetitive forward surge current up to 30 amperes.
Product Description
onsemi UF4007 is a 1 kV 1 A switching diode housed in a 2-pin DO-41 through-hole plastic package, designed for fast and reliable rectification in industrial and electronic applications.
This diode features a glass-passivated junction, providing enhanced reverse voltage resistance and low leakage characteristics, making it suitable for high-reliability use cases.
The maximum continuous forward current rating is 1 ampere with a forward voltage of 1.7 V, and the device supports surge currents up to 30 A, making it robust against transient load spikes.
Low forward voltage drop reduces power loss and increases efficiency. Fast reverse recovery time of 75 ns allows switching applications at high frequencies. Wide operating junction temperature range from -65°C to 150°C ensures performance under various thermal conditions.
Compact dimensions (5.21 mm length, 2.7 mm diameter) facilitate easy PCB mounting. Rectifier type: Switching diode, ideal for power supplies and signal processing circuits.
Applications for the UF4007 diode include industrial electronics, laboratory equipment, power management circuits, and other scenarios that require fast, reliable switching diodes.
Package contains a single diode in DO-41 style, ready for through-hole mounting. Explore a wide selection of semiconductor components at EnvMart, including switching diodes like the onsemi UF4007, designed for industrial and commercial use.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the UF4007 is 1 ampere.
The peak reverse repetitive voltage rating for the UF4007 is 1000 volts.
The forward voltage drop of the UF4007 is 1.7 volts.
The UF4007 has a fast reverse recovery time of 75 nanoseconds.
The DO-41 package of the UF4007 measures 5.21 mm in length and 2.7 mm in diameter.
The UF4007 operates reliably from -65°C to 150°C junction temperature.
The UF4007 supports through-hole mounting.
The UF4007 supports a peak non-repetitive forward surge current of up to 30 amperes.
The UF4007 has a single diode configuration.
The UF4007 is suitable for applications in industrial electronics, laboratory equipment, and power management circuits.
The peak reverse current for the UF4007 is 10 microamperes (10μA).
The UF4007 belongs to the UF4007 series of diodes.
