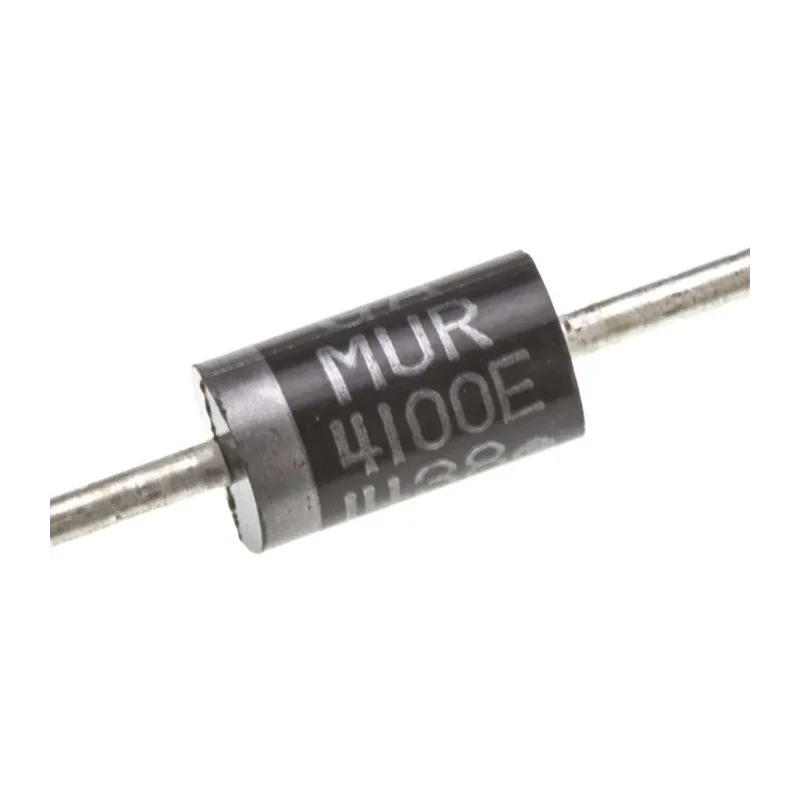

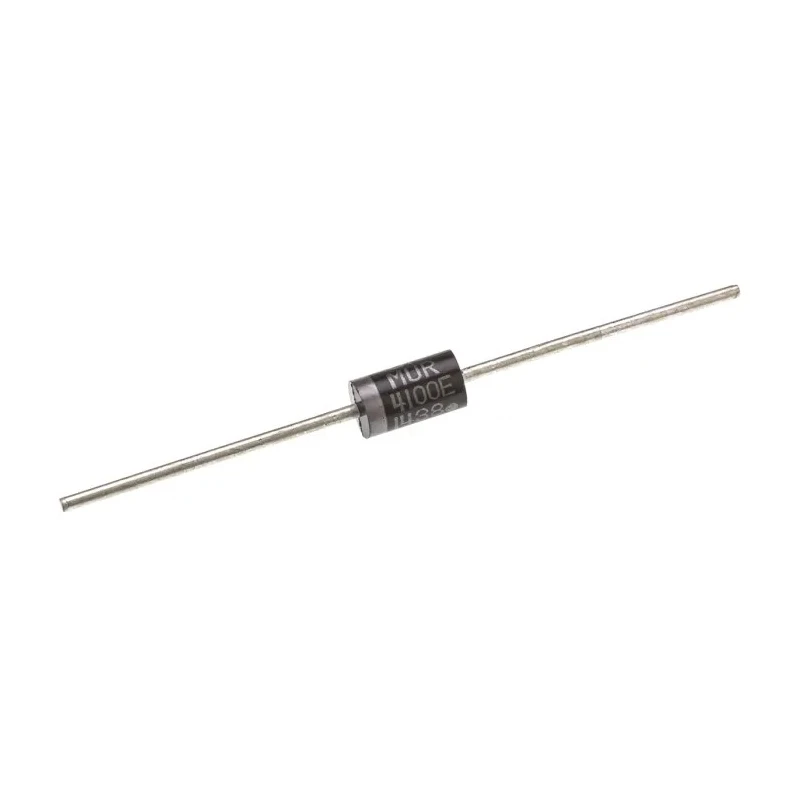

onsemi 1 kV 4 A Switching Diode Through Hole DO-201AD MUR4100ERLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | MUR4100ERLG |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 1.85V |
| Peak Reverse Recovery Time trr | 100ns |
| onsemi 1000V 4A, Silicon Junction Diode, 2-Pin Case 267-05 MUR4100EBrand | ON Semiconductor |
Key Features
- Provides maximum continuous forward current of 4 amperes.
- Supports peak reverse repetitive voltage up to 1000 volts.
- Features a peak reverse current of 25 microamperes at 25°C.
- Designed for operation from -65°C up to 175°C maximum temperature.
- Rectifier type is switching with a single diode configuration.
- Pin count consists of 2 pins in a DO-201AD package.
- Peak non-repetitive forward surge current is 70 amperes.
- Maximum forward voltage drop is 1.85 volts at rated current.
Product Description
onsemi MUR4100ERLG is a high-performance switching diode offered in a DO-201AD through hole package. It supports a peak reverse repetitive voltage of 1 kV and a maximum continuous forward current of 4 A, making it suitable for power rectification and switching applications in electronic circuits. This diode is designed with a fast peak reverse recovery time of 100 ns to enhance switching efficiency and reduce power loss.
The diode's robust construction allows operation in a wide temperature range from -65°C to 175°C, ensuring reliability in harsh industrial and electronic environments. The low forward voltage of 1.85 V at rated current helps minimize conduction losses.
Its physical size (9.5 mm length, 5.3 mm diameter and width) and 2-pin configuration make it ideal for through-hole mounting on printed circuit boards (PCBs). The single diode configuration and switching rectifier type support fast switching power supply designs and other electronic systems requiring high-speed diode operation.
The MUR4100ERLG is commonly used in power supplies, converters, inverters, and motor control circuits within industrial, consumer electronics, and automotive domains, although this particular model is not automotive grade.
Provides maximum continuous forward current of 4 amperes. Supports peak reverse repetitive voltage up to 1000 volts. Features a peak reverse current of 25 microamperes at 25°C. Designed for operation from -65°C up to 175°C maximum temperature.
Rectifier type is switching with a single diode configuration. Pin count consists of 2 pins in a DO-201AD package. Peak non-repetitive forward surge current is 70 amperes. Maximum forward voltage drop is 1.85 volts at rated current.
Fast peak reverse recovery time of 100 nanoseconds for switching applications. Physical dimensions: length 9.5 mm, diameter and width 5.3 mm. Explore more semiconductors and discrete diode products in the EnvMart catalog for your electronic component needs.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MUR4100ERLG supports a maximum continuous forward current of 4 amperes.
This model supports a peak reverse repetitive voltage of 1 kV (1000 volts).
It is designed to operate within a temperature range from -65°C to 175°C.
The diode has a length of 9.5 mm and a diameter of 5.3 mm, with a pin count of 2 in a DO-201AD package.
The peak non-repetitive forward surge current for this diode is 70 amperes.
The peak reverse current is 25 microamperes at 25°C.
It is a switching rectifier with a single diode configuration.
The maximum forward voltage drop at rated current is 1.85 volts.
The peak reverse recovery time is 100 nanoseconds, enhancing switching efficiency.
This diode is designed for through-hole mounting.
It is commonly used in power supplies, converters, inverters, and motor control circuits.
The MUR4100ERLG is manufactured in India.
