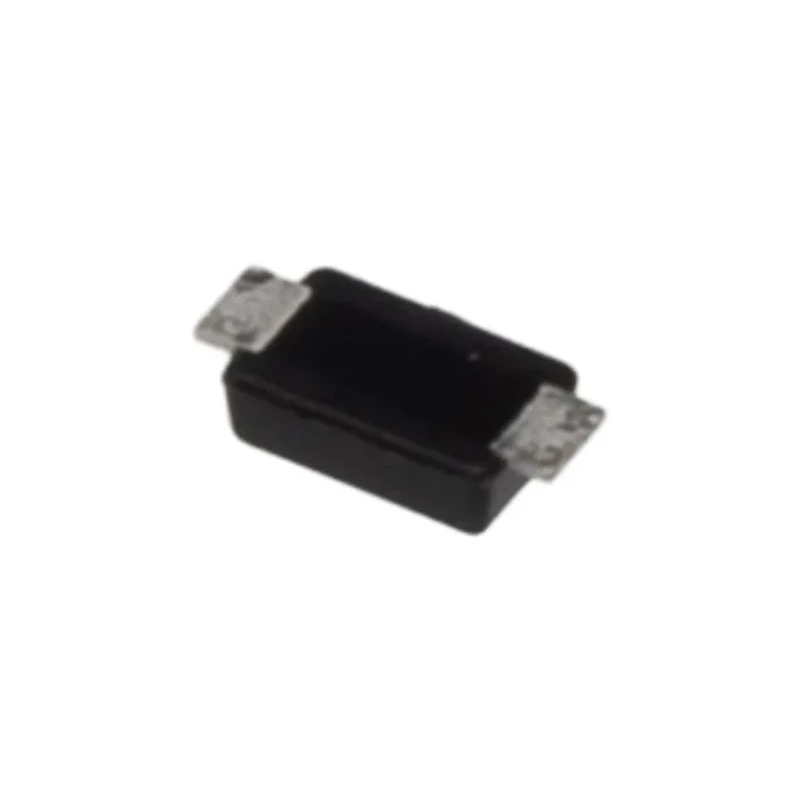

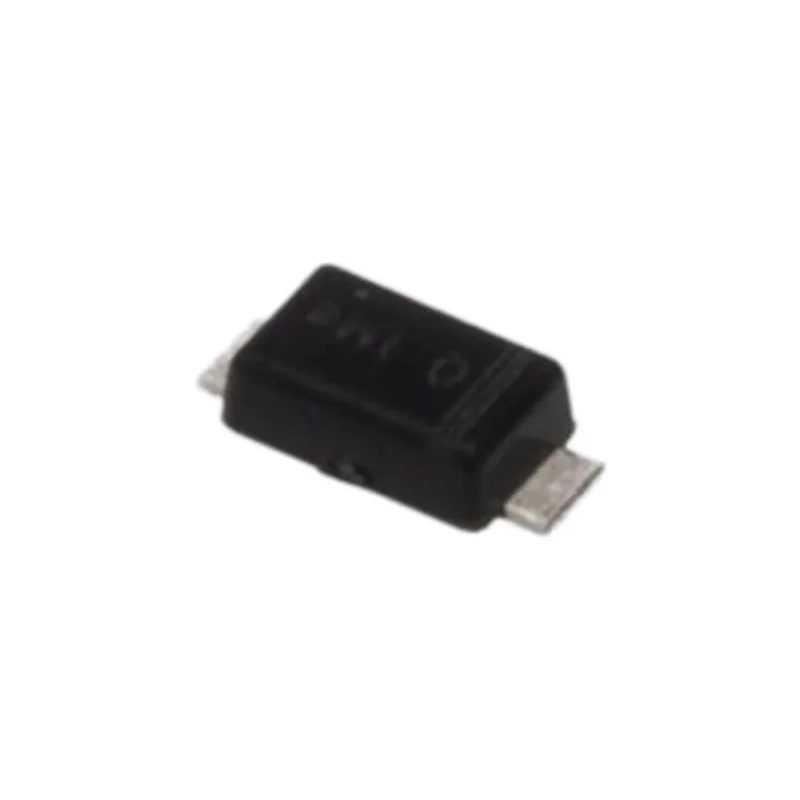

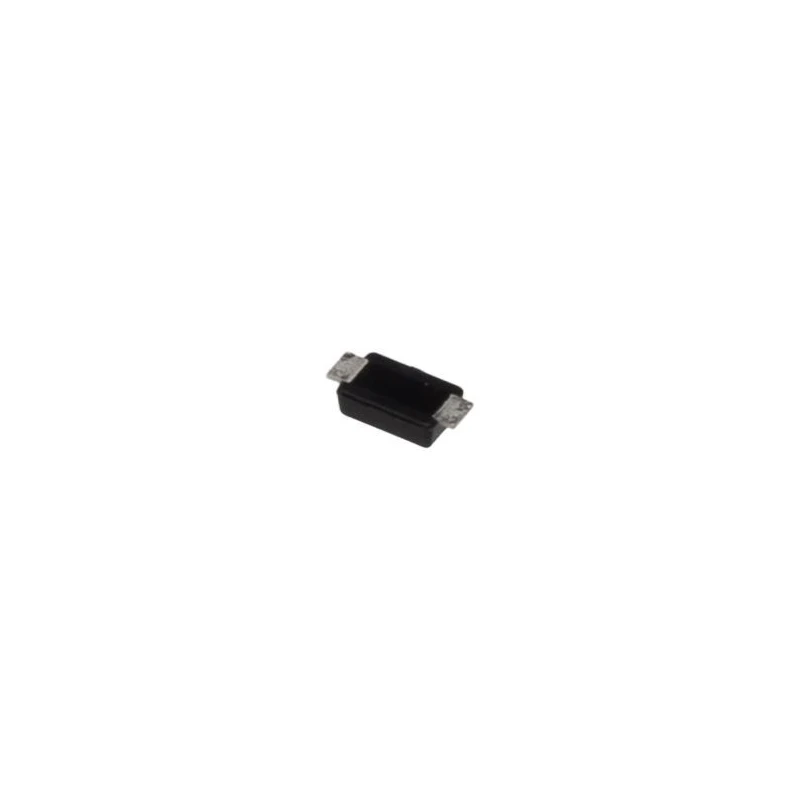

onsemi 1 kV 1 A Schottky Diode Surface Mount SOD-123F Package S1MFL

onsemi S1MFL is a 1 kV, 1 A Schottky diode designed for surface mount applications in the SOD-123F package. This compact diode features a glass passivated junction and green mold compound, enabling high reliability and durability in demanding electronic circuits.

With a maximum forward voltage of 1.1 V and a peak reverse current of 50 microamperes, the S1MFL diode efficiently conducts forward current while minimizing reverse leakage, making it ideal for power rectification and high-speed switching applications.

The ultra-thin profile with a height of just 1.08 mm and a length and width of 3 mm and 1.95 mm respectively allows for dense PCB layouts. The device operates over a wide temperature range from -55°C to 150°C, ensuring stable performance in extreme environmental conditions.

Featuring a peak reverse recovery time of 2 microseconds, it is suited for circuits requiring fast switching speeds. The single diode configuration includes two pins for surface mounting, simplifying assembly in automated production processes.

Produced in China, the onsemi S1MFL is an excellent choice for industrial, electronic component manufacturing, power supplies, and electronic device repair applications. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 1 kV.

Maximum forward voltage: 1.1 V. Peak reverse current: 50 µA. Operating temperature range: -55°C to 150°C. Package type: SOD-123F surface mount. Height: 1.08 mm. Length: 3 mm. Width: 1.95 mm. Peak reverse recovery time: 2 µs.
