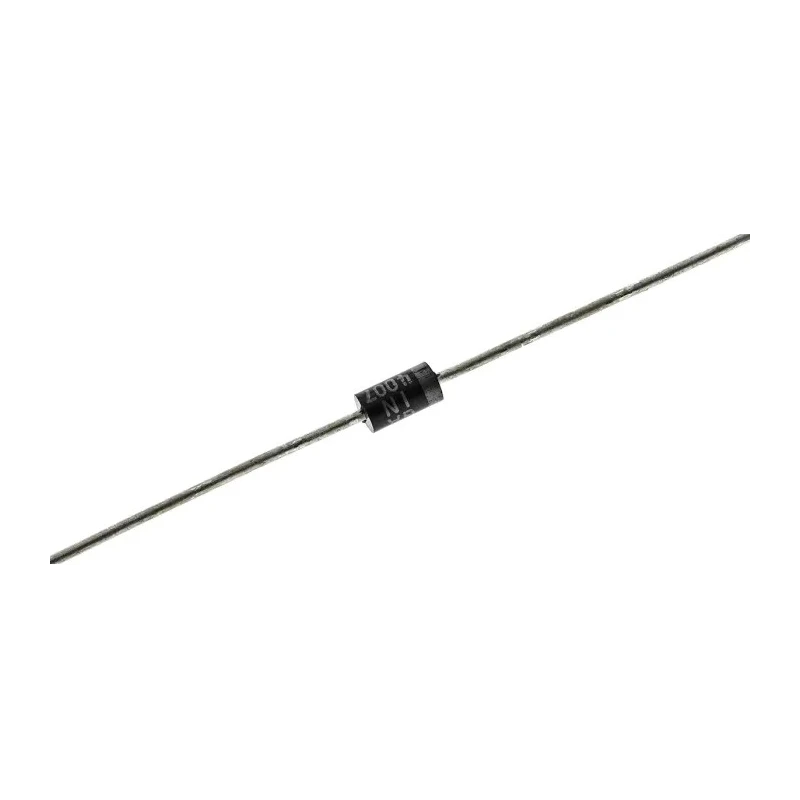

onsemi 1 kV 1 A Diode General Purpose Through Hole 2-Pin DO-41 1N4007RLG

onsemi 1N4007RLG is a standard recovery general purpose semiconductor diode designed for low power, general rectification applications. Its 2-pin DO-41 epoxy molded package offers through-hole mounting capability and corrosion-resistant surfaces. The diode is rated for a maximum continuous forward current of 1 ampere and can withstand peak reverse voltages up to 1 kV, making it suitable for use in protective circuits such as polarity protection and free-wheeling diode roles in power supplies and inverters.

The device features a maximum forward voltage drop of 1.1 volts and can tolerate peak surge currents up to 30 amperes, allowing it to handle transient spikes effectively. It operates reliably across a wide temperature range from -65°C to 175°C, supporting use in harsh industrial, commercial, and consumer electronics environments.

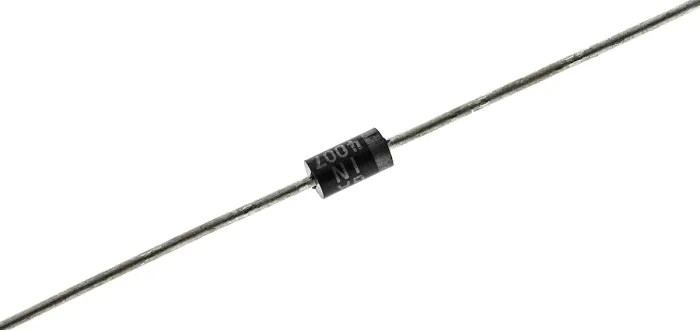

The epoxy molded case with leads designed for easy soldering ensures durable mechanical and electrical connections. The visible polarity band on the cathode simplifies correct orientation during installation. Dimensions measuring approximately 2.7 mm in diameter and height with a length of 5.2 mm make it compact and suitable for densely populated circuit boards.

This diode finds typical applications in high frequency inverters, free wheeling diodes, polarity protection circuits, and other power electronic devices where reliable rectification and voltage blocking are critical.

Designed for reliable low power general purpose rectification. Epoxy molded case protects against corrosion and mechanical stress. Wide temperature operating range enhances durability in industrial settings. Compact DO-41 package fits standard through hole PCB layouts.

High surge current capability tolerates transient electrical stress. Corrosion resistant external surfaces ensure long life. Readily solderable leads improve manufacturing efficiency. Indicators for cathode polarity reduce assembly errors.

This product is manufactured in China and is new, meeting typical industrial quality standards for semiconductor devices. It is ideal for use in electronics manufacturing, industrial equipment, HVAC systems, and other sectors demanding robust diode performance.
