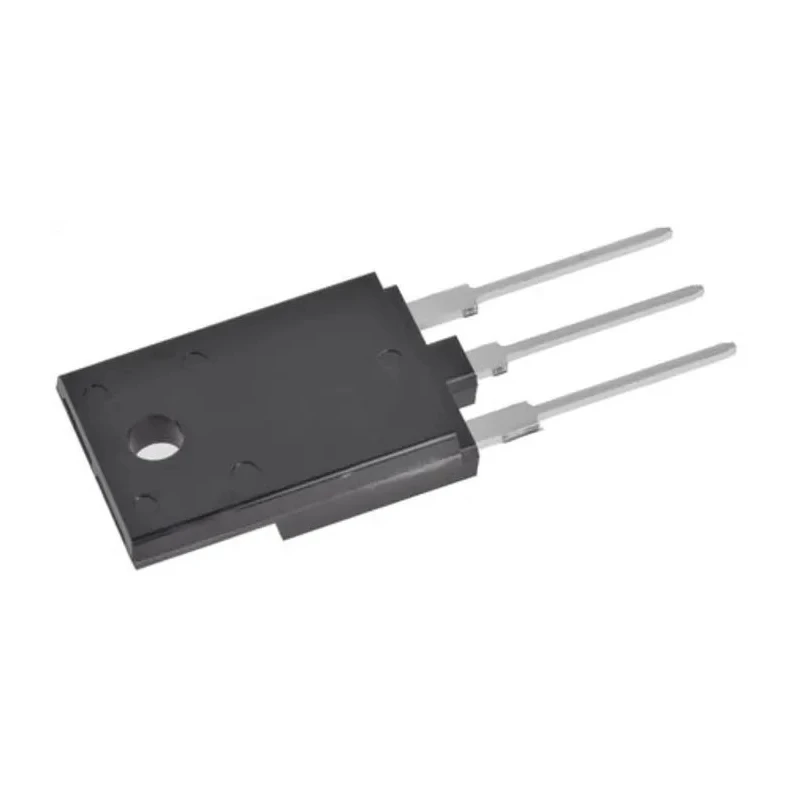

STMicroelectronics High Voltage 600 V 60 A Diode 4-Pin TO-3PF STTH60AC06CPF

STMicroelectronics STTH60AC06CPF is a high voltage diode designed for applications requiring a durable and efficient rectifier solution. This diode supports a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage of 600 volts, making it ideal for handling significant power loads in industrial, power electronics, and semiconductor circuits.

Featuring a common cathode configuration and a 4-pin TO-3PF through-hole package, the diode offers easy integration into printed circuit boards with conventional mounting techniques. It withstands peak non-repetitive forward surge currents up to 280 amperes, which provides resilience against transient current spikes in demanding environments.

The device operates reliably across a wide temperature range from -65°C to 175°C, ensuring stable performance under varying thermal conditions. Its fast peak reverse recovery time of 70 nanoseconds enables efficient switching, suitable for power supply, inverter, and motor control applications. The maximum forward voltage of 2 volts contributes to minimized power losses during conduction.

Compact physical dimensions - height of 26.7mm, length of 15.7mm, width of 5.7mm, and diameter of 3.1mm - facilitate use in space-constrained designs. Furthermore, the diode is RoHS compliant, confirming its adherence to environmental and safety standards.

Maximum continuous forward current of 60 amperes. Peak reverse repetitive voltage up to 600 volts. Common cathode diode configuration for rectification. Peak non-repetitive forward surge current of 280 amperes. Fast peak reverse recovery time of 70 nanoseconds.

Wide operating temperature range from -65°C to 175°C. TO-3PF 4-pin through-hole package for secure mounting. Maximum forward voltage of 2 volts for low conduction loss. Compact size with height 26.7mm, length 15.7mm, width 5.7mm.

RoHS compliant ensuring environmental standards.

This diode is suited for industrial and electronic manufacturing applications requiring reliable high voltage rectification and switching. It is applicable in power supplies, motor drives, and general purpose power control circuits. For comprehensive technical details and CAD models, designers are encouraged to consult the official STMicroelectronics documentation.
