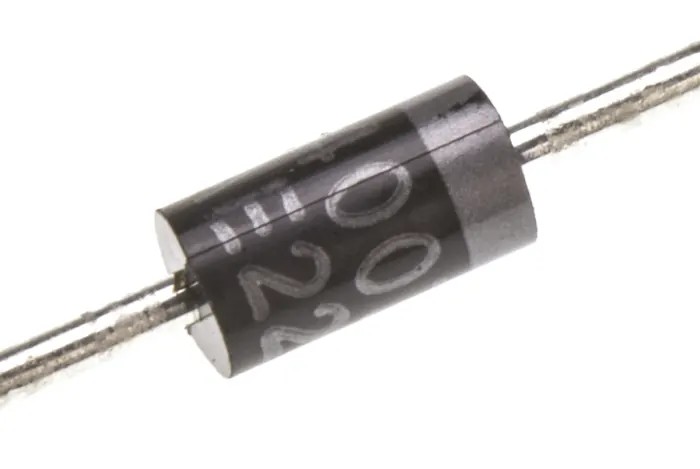

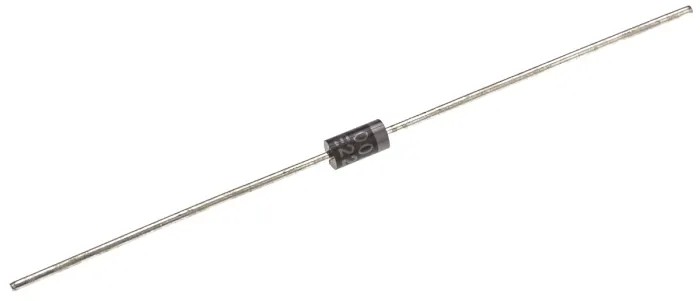

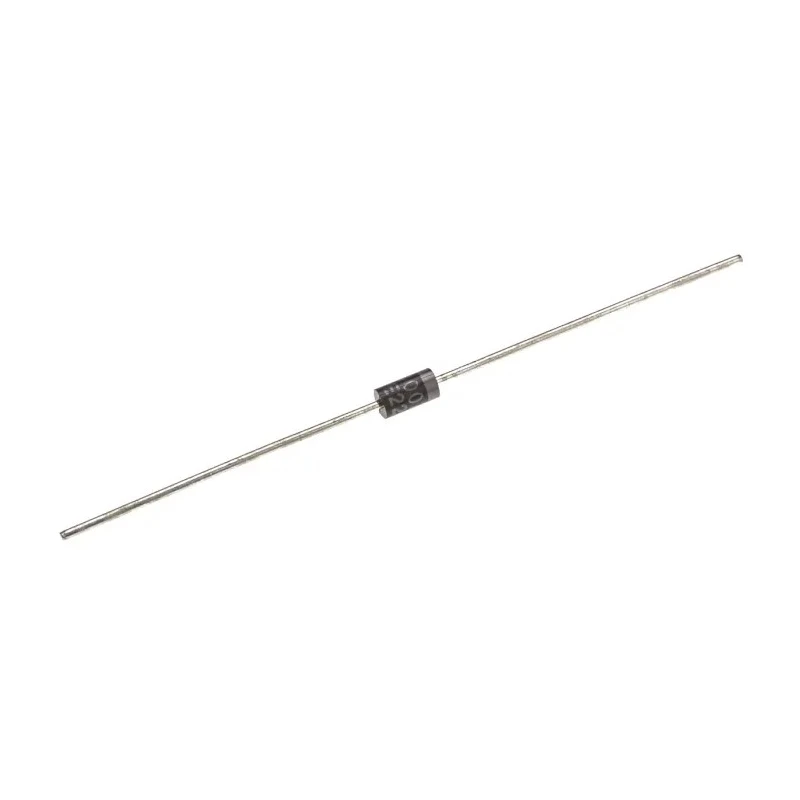

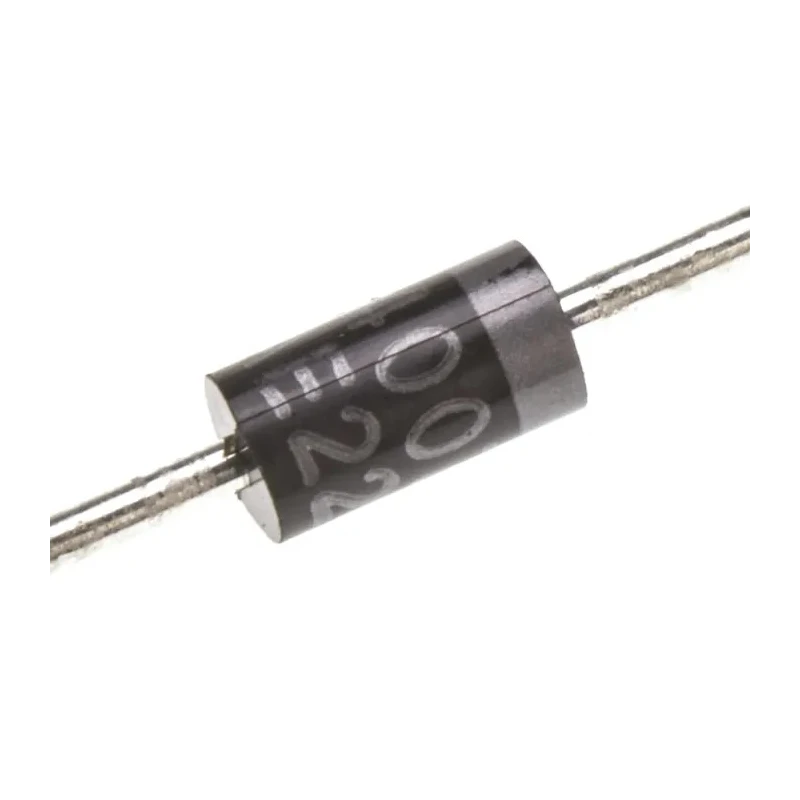

onsemi 1 kV 1 A Switching Diode 2-Pin Through Hole DO-41 UF4007

onsemi UF4007 is a high-performance switching diode rated for 1 kV peak reverse voltage and 1 A forward current, enclosed in a 2-pin DO-41 through-hole package. It features a glass-passivated junction providing enhanced durability and reduced leakage current, making it suitable for demanding industrial and electronic applications.

This diode supports a peak surge current of 30 A and exhibits a low forward voltage drop of 1.7 V, ensuring efficient operation in fast switching and rectification tasks. Its peak reverse recovery time of 75 ns is ideal for high-speed switching applications found in power electronics and general-purpose semiconductor uses.

Designed to operate reliably in extreme temperature ranges from -65°C to 150°C, the UF4007 diode meets the needs of rigorous environments including industrial, laboratory, manufacturing, and power supply designs.

High surge current capability for transient tolerance. Low forward voltage drop for improved circuit efficiency. Glass-passivated junction enhances device reliability. Wide operating temperature range ensures versatile use.

Compact DO-41 package facilitates easy mounting and space-saving. Rapid reverse recovery time suits switching power circuits.

Package dimensions are 5.21 mm length, 2.72 mm height/width, and 2.7 mm diameter, allowing integration into standard through-hole boards. This single diode configuration delivers reliable semiconductor switching performance for electronics, power conversion, and automotive system protection circuits.

Manufactured in China, this new condition onsemi UF4007 diode is optimized for accuracy and durability in switching roles. Browse the Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers category on EnvMart for complementary components and additional semiconductor devices.
