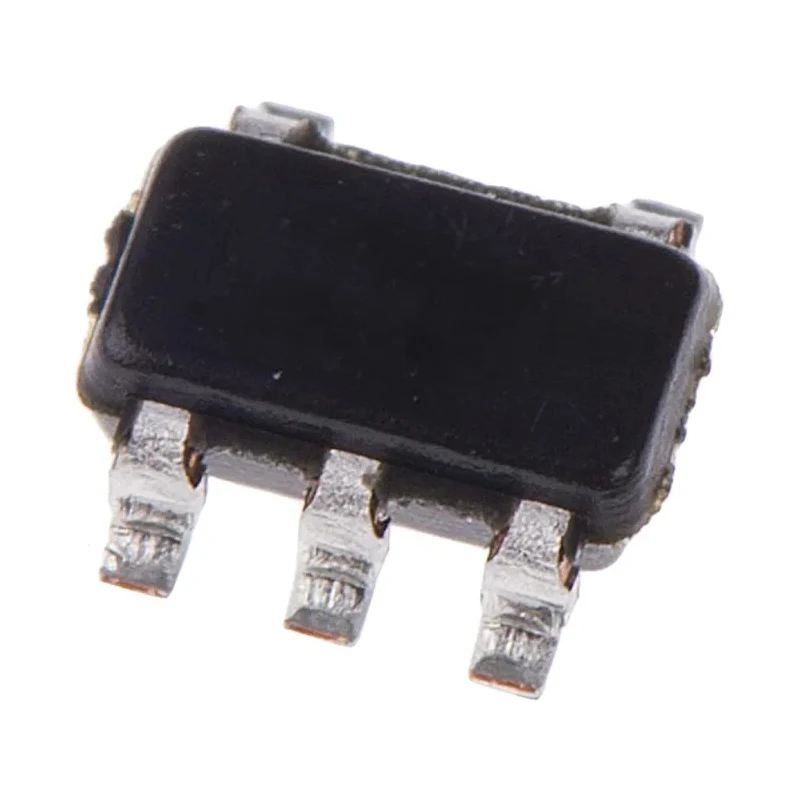

onsemi 1 2-Input NOR Logic Gate, 5-Pin SOT-23, CMOS Input, TinyLogic HS NC7S02M5X

onsemi NC7S02M5X is a 1 2-Input NOR Logic Gate designed for high-speed and low power applications within electronic circuits. Packaged in a surface mount 5-pin SOT-23 form factor, it provides efficient CMOS logic functionality suitable for modern electronic assemblies.

This logic gate operates across a wide voltage range from 2.0 to 6.0 volts, making it versatile for various low and medium voltage designs. It maintains performance stability over a broad operating temperature range between -40°C and 85°C, supporting demanding industrial and commercial environments.

The device is part of onsemi's TinyLogic HS family, which emphasizes advanced high-speed processing with low power consumption. It has a maximum propagation delay time of 21 nanoseconds under capacitive loading, ensuring rapid logic transitions.

Dimensions of 1.3 mm in height and 3 mm in length facilitate compact PCB layouts and minimize space usage. The logic gate is a fundamental building block in circuits requiring NOR logic operation with two inputs.

This product finds applications in industrial automation, consumer electronics, instrumentation, embedded systems, and general-purpose logic control. Operates with a supply voltage range of 2.0 to 6.0 volts. Maximum propagation delay is 21 nanoseconds at capacitive load.

Compact 5-pin SOT-23 surface mount package. Wide temperature operation from -40°C to 85°C ensures reliability. CMOS input type with TinyLogic HS family high-speed performance. Output current capability: max high level -2.6 mA, max low level 2.6 mA.

Height 1.3 mm and length 3 mm dimensions. Not suitable for automotive certified applications.

This onsemi logic gate enhances design flexibility and efficiency for engineers working in diverse industrial and electronic component applications. Discover more logic solutions in the Semiconductor category at EnvMart.
