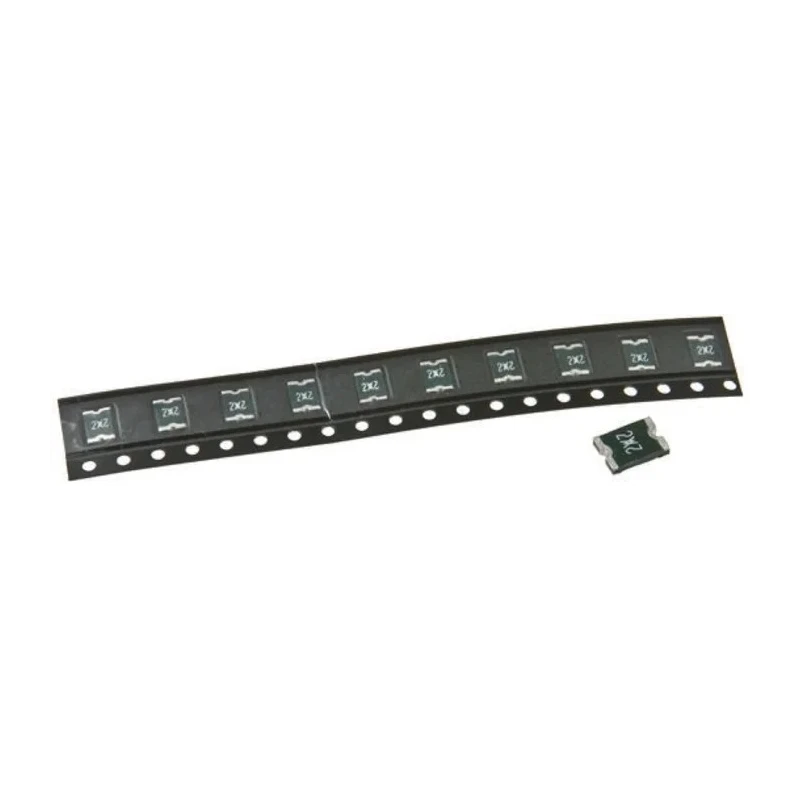

Littelfuse 0.2 A Resettable Fuse 30V dc Mini SMDC Surface Mount Technology MINISMDC020F-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V dc |
| Brand | Littelfuse |
| Height | 0.89mm |
| Length | 4.73mm |
| Model | MINISMDC020F-2 |
| Width | 3.41mm |
| Current Rating | 10A |
| Series | miniSMDC |
| Package Type | Reel |
| Minimum Operating Temperature | 85°C |
| Trip Current | 400mA |
| Power Dissipation | 0.8W |
| Terminal Material | Matt Tin |
| Standards/Approvals | RoHS, UL, CSA, TUV |
| Time to Trip | 0.02s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.6Ω |
| Maximum Resistance | 3.3Ω |
| TE Connectivity Resettable FuseBrand | TE Connectivity |
Key Features
- Designed for protection against excessive currents with automatic reset functionality.
- Compact surface mount technology suitable for computer, consumer, automotive, and multimedia electronics.
- Fast trip response time of 0.02 seconds ensures quick circuit protection.
- Low resistance allows efficient circuit operation with minimal power dissipation of 0.8W.
- Complies with RoHS, UL, CSA, and TUV standards ensuring quality and safety.

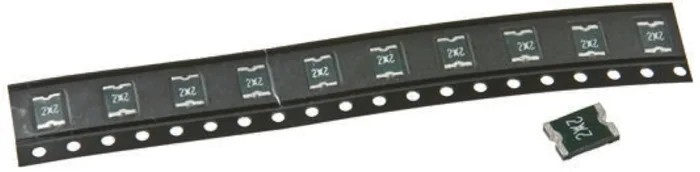

- Package supplied on a reel for efficient insertion into manufacturing processes.

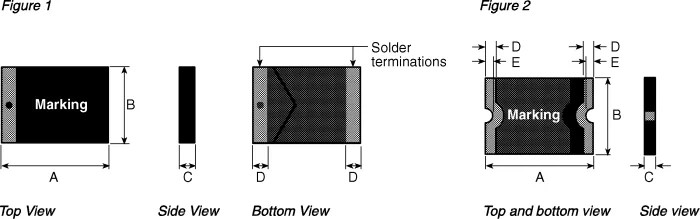

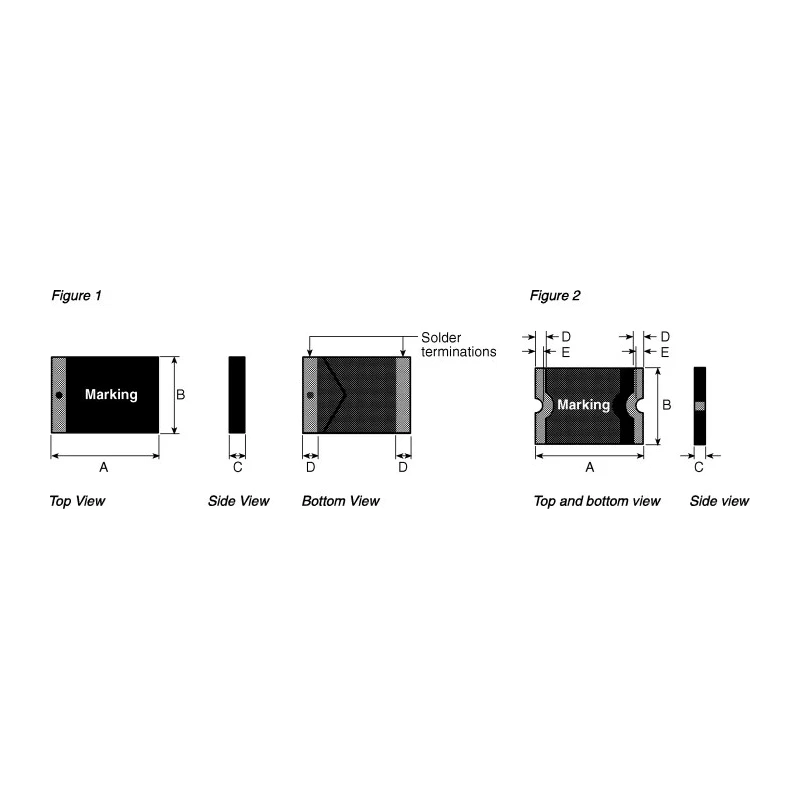

- Compact dimensions with length 4.73mm, width 3.41mm, and height 0.89mm for space-saving designs.
- Halogen free construction suitable for environmentally conscious applications.
Product Description
Littelfuse MINISMDC020F-2 is a 0.2 A resettable fuse designed for rapid protection of electronic circuits against overcurrent conditions. Operating at 30V dc, this Mini SMDC series surface mount device offers an efficient and compact solution ideal for use in computer hardware, consumer electronics, automotive, multimedia, and portable devices. Its fast time-to-trip of 0.02 seconds safeguards sensitive circuits promptly.
This resettable fuse features a small footprint measuring 4.73mm in length, 3.41mm in width, and 0.89mm in height, facilitating integration in space-constrained PCBs. Constructed with matt tin terminal material, it ensures excellent solderability and electrical connection reliability.
Compliant with RoHS, UL, CSA, and TUV standards, the fuse assures safety and environmental responsibility being halogen free. The device is supplied on a reel format, optimized for automated assembly lines to enhance production efficiency.
It offers a hold current of 0.2A and a current rating of 10A, with power dissipation rated at 0.8W. The fuse operates reliably within a temperature range up to 85°C, making it suitable for automotive and industrial electronics applications.
Automatic reset function supports maintenance-free, repeated operation cycles. Small size eliminates the need for fuse holders and reduces board space. Provides overcurrent protection for sensitive electronic systems. Environmentally friendly, halogen-free material construction.
Suitable for industrial, automotive, telecommunications, computer, and audio-visual applications.
This Littelfuse Resettable Fuse model MINISMDC020F-2 is an ideal choice for engineers seeking efficient, durable circuit protection components compliant with global standards. Explore other Littelfuse products and electronic fuses in the EnvMart catalog to meet diverse protection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MINISMDC020F-2 resettable fuse has a voltage rating of 30V DC.
This model has a hold current of 0.2A.
The dimensions of this fuse are 4.73mm in length, 3.41mm in width, and 0.89mm in height.
The time to trip for the MINISMDC020F-2 is 0.02 seconds.
The maximum current rating for this fuse is 10A.
The power dissipation for this model is rated at 0.8W.
The terminals of the MINISMDC020F-2 are made from matt tin material, ensuring good solderability.
This resettable fuse complies with RoHS, UL, CSA, and TUV standards.
The MINISMDC020F-2 operates reliably within a temperature range up to 85°C.
It is supplied on a reel format, which is optimized for automated assembly lines.
The trip current for the MINISMDC020F-2 is 400mA.
This model is suitable for applications in computer hardware, consumer electronics, automotive, multimedia, and portable devices.
