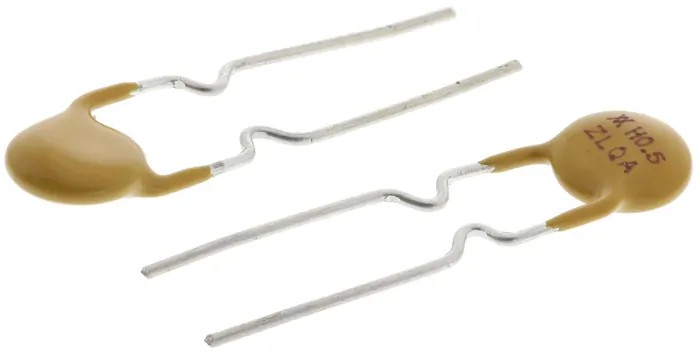

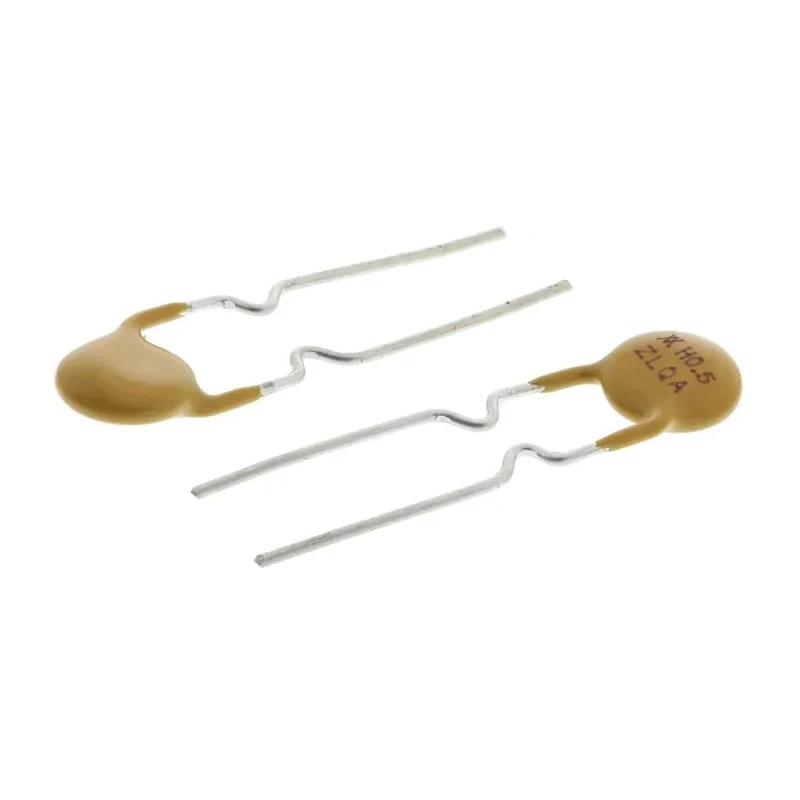

Littelfuse 0.5 A 30V Resettable Fuse Radial Lead Orientation RHEF050

Littelfuse RHEF050 is a 0.5 A resettable fuse with a voltage rating of 30V and radial lead orientation, designed for protecting electrical circuits and electronic devices. It rapidly switches from a low resistance state to a high resistance state when exposed to excessive current or short circuit, and automatically resets upon correction of fault conditions and removal of power.

The compact fuse measures 7.4 mm in length, 3 mm in width, and 12.7 mm in height, enabling easy incorporation into printed circuit boards. It offers a hold current of 0.5 A and a trip current of 920 mA, with a power dissipation capability of 0.9 W. The device operates reliably across a wide temperature range from -40°C minimum to 60°C maximum.

Constructed with PolySwitch™ PTC technology in the RUSBF series, the fuse requires no maintenance and can reset automatically thousands of times, eliminating the need for fuse holders. Approved by UL, CSA, TUV, and RoHS certified, it meets rigorous quality and safety standards.

Ideal applications include security systems, power supplies and transformers, automotive and medical equipment, instrumentation and control systems, computing peripherals, audio visual and telecommunications equipment.

Automatically resets itself thousands of times for continuous circuit protection. Compact size facilitates PCB wire-ended mounting and installation. Radial lead orientation for reliable electrical connections. Protects circuits from excessive current and prevents damage caused by overloads.

Wide operating temperature range to suit diverse environments. Meets multiple international standards: UL, CSA, TUV, and RoHS. Maintenance-free design reduces downtime and costs. Rapid trip time of 2.5 seconds enhances safety.

Part of Littelfuse RUSBF product series known for quality and reliability.

This product is a new item made in India and offers premium electrical protection for various industrial and commercial applications. Explore more Resettable Fuses and related components in the Electronics & Electricals category at EnvMart.
