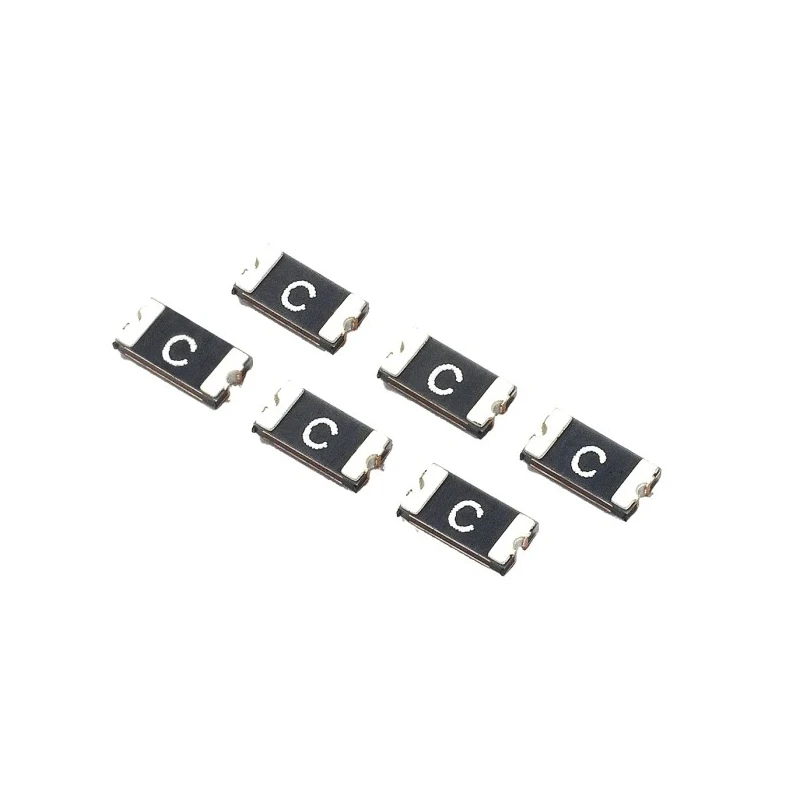

Littelfuse 0.2 A Resettable Fuse 24V DC Surface Mount Low Profile 1206L020YR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Littelfuse |
| Height | 0.75mm |
| Length | 3.4mm |
| Model | 1206L020YR |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | 1206L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Interfaces | USB peripherals |
| Trip Current | 0.42A |
| Power Dissipation | 0.6W |
| Terminal Material | Solder Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 0.1s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 2.6Ω |
Key Features
- Surface mount resettable fuse ideal for compact electronics.
- Fast trip time of 0.1 seconds for efficient fault protection.
- Low profile design with dimensions 3.4mm length, 1.8mm width, and 0.75mm height.
- Suitable for USB peripherals and mobile device protection.
- Power dissipation rating of 0.6 W ensures reliability under load.
- Solder plated copper terminals for excellent connectivity.
- Operating temperature range from -40°C to 85°C supports varied environments.
Product Description
Littelfuse 1206L020YR is a surface mount resettable fuse designed for overcurrent protection in electronic devices operating at 24V DC with a hold current of 0.2 A. Its small 1206 package size allows installation in space-constrained circuits. This fuse responds rapidly within 0.1 seconds to fault currents up to a trip current of 0.42 A, providing efficient protection for sensitive USB peripherals, mobile phones, PDAs, and game console ports.
The device offers low resistance ranging from 0.65 to 2.6 ohms, enabling minimal impact on normal circuit operation. It features solder plated copper terminals ensuring durability and stable electrical connection. The fuse supports operation in harsh environments with temperature tolerances between -40°C and 85°C, making it suitable for a wide range of industrial, laboratory, communication, and consumer electronics applications.
Its 0.6 W power dissipation rating ensures stable operation without excess heat generation. Packaged in reels for easy automated assembly, the 1206L series fuse is ideal for surface mount technology assembly lines.
Compact footprint saving PCB space in electronic assemblies. Fast response time protects sensitive circuitry effectively. Wide operating temperature range accommodates varied conditions. Low power dissipation maintains device stability under load.
Reliable solder plated copper terminals for secure connections.
This Resettable Fuse is RoHS compliant, ensuring environmental safety standards are met. Ideal for industrial electronics, laboratory instruments, communication equipment, and consumer devices requiring reliable overcurrent protection.
For high quality electronic protection components, browse the Littelfuse category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 0.2 A, which indicates the maximum continuous current it can carry without tripping.
This resettable fuse can operate at a maximum temperature of 85°C, making it suitable for use in various environments.
It has a fast trip time of 0.1 seconds, providing efficient protection against fault currents.
The trip current for the Littelfuse 1206L020YR is 0.42 A, which is the threshold at which the fuse will activate to protect the circuit.
The dimensions of this model are 3.4 mm in length, 1.8 mm in width, and 0.75 mm in height, making it suitable for compact installations.
It is suitable for protecting USB peripherals, mobile phones, PDAs, and game console ports, among other sensitive electronics.
The power dissipation rating is 0.6 W, ensuring stable operation without excessive heat generation under load.
The terminals of this resettable fuse are made of solder plated copper, which ensures excellent connectivity and durability.
Yes, it is RoHS compliant, which means it meets environmental safety standards for hazardous substances.
The minimum resistance is 0.65 ohms, allowing for minimal impact on normal circuit operation.
This model is supplied in a reel package type, which is ideal for automated assembly processes.
The minimum operating temperature is -40°C, allowing it to function in a wide range of environmental conditions.
