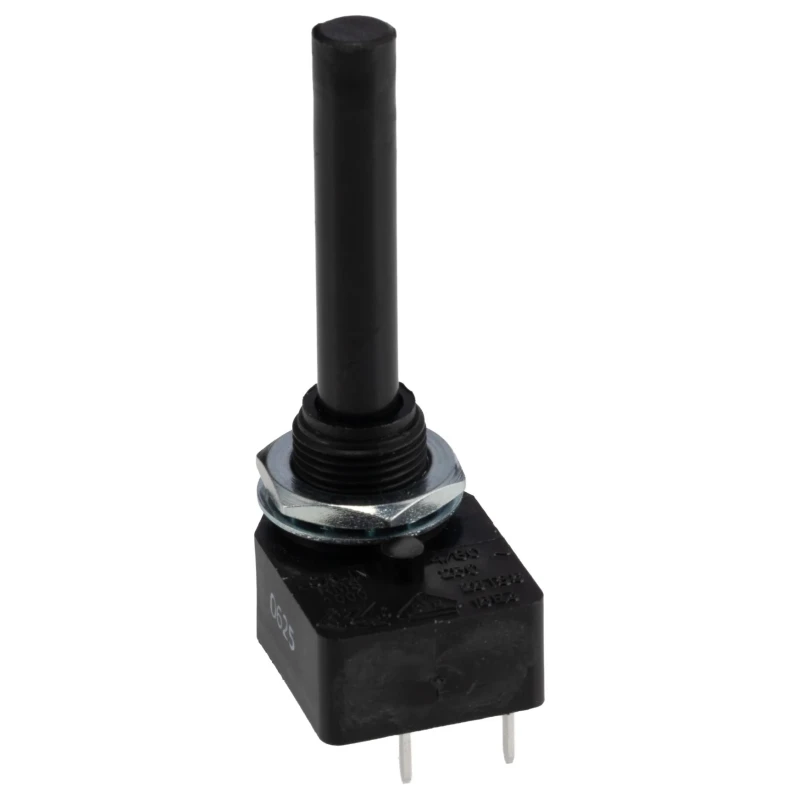

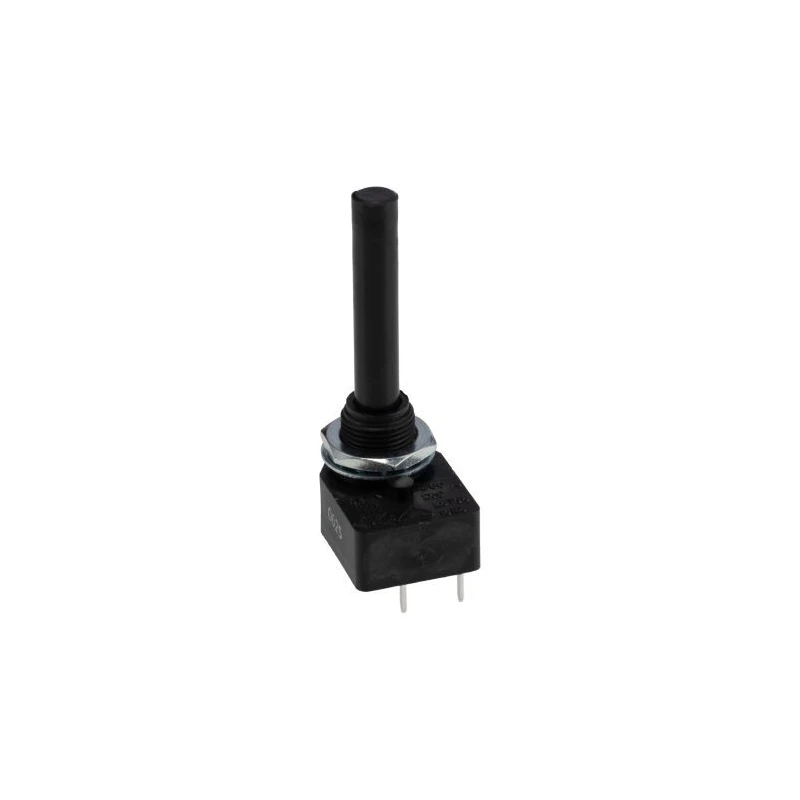

Lorlin 2 Position DPST Rotary Switch 4A 250V AC 12V DC PCB Mount Solder Terminals RMS1130

The Lorlin RMS1130 2 Position DPST Rotary Switch is engineered for precision switching solutions in electrical, industrial automation, and electronics applications.

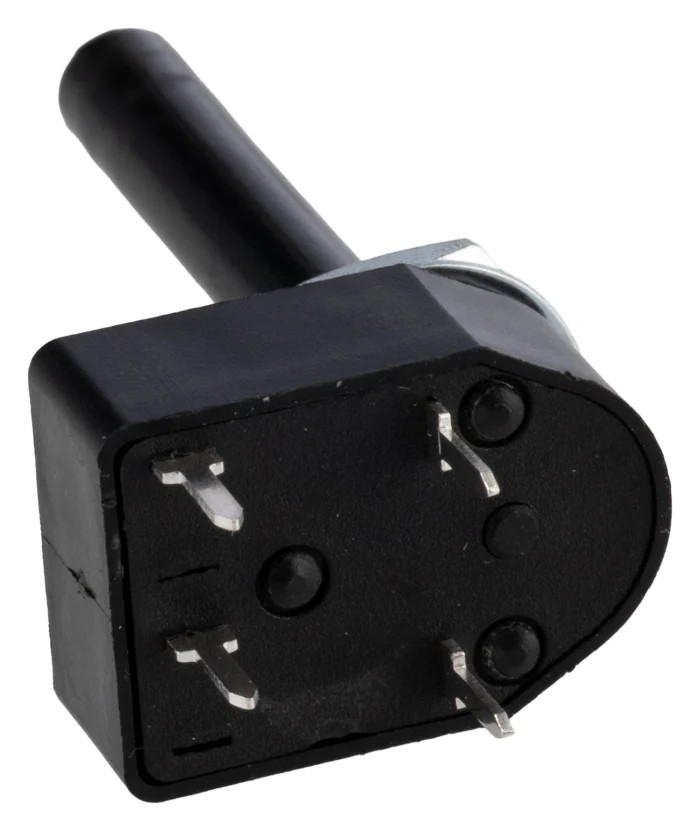

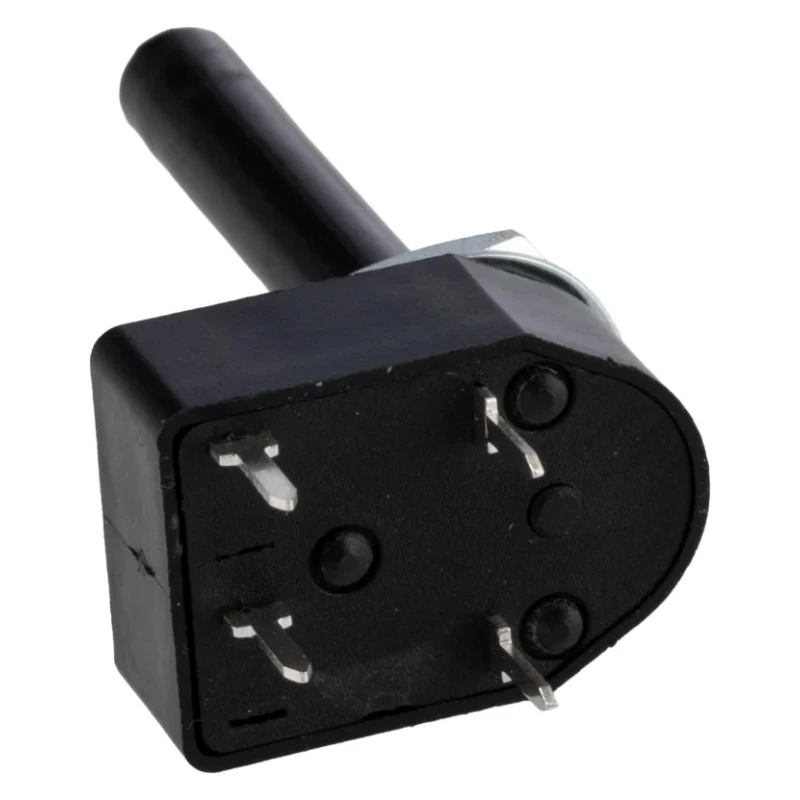

This rotary switch features a sturdy polyamide housing which is glass-loaded and flame retardant, providing durability and safety in demanding environments. It is suitable for mounting directly on PCBs, utilizing solder-type terminals for reliable connectivity.

Rated for a switch contact current of 4A at a maximum AC voltage of 250V and 12V DC, it offers versatile performance for controlling circuits and systems within its electrical range.

The switch's mechanical lifespan is rated at 15000 operations, ensuring durability for prolonged use in industrial or commercial settings. Its compact form factor with dimensions of 47.8 mm in height, 17 mm width, and 24 mm depth makes it ideal for space-constrained designs.

With a spindle diameter of 6.0 mm featuring a standard flat, the rotary switch provides secure control actuation with a 45° angle of throw and a straightforward Off-On switch configuration across two positions.

Additional technical highlights include silver contacts for low resistance (20mΩ) and the ability to withstand brief current surges of 80A for 0.01 seconds, protecting the contact integrity.

Operating temperature range of -25°C to 85°C allows deployment in diverse environments, including industrial automation, laboratory equipment, HVAC controls, and manufacturing electronics control panels.

Features a polyamide housing for durability and flame retardant properties. Has 2 poles and 2 positions with an Off-On switch configuration. Mechanical life of 15000 operations ensures long usage. Compact dimensions: height 47.8mm, width 17mm, depth 24mm, and diameter 13.3mm.

Operates reliably between -25°C and 85°C ambient temperatures. Silver contacts with a low contact resistance of 20mΩ for efficient conductivity. Spindle diameter of 6.0 mm with a standard flat for secure fitting. Designed to withstand current surges up to 80A for 0.01 seconds without damage.

Complies with RoHS standards for environmental safety. Manufactured in the United Kingdom ensuring quality and reliability.

This component is suitable for use in electrical switchgear, control panels, industrial machinery interfaces, and various automated processes requiring reliable and precise switching functions.
