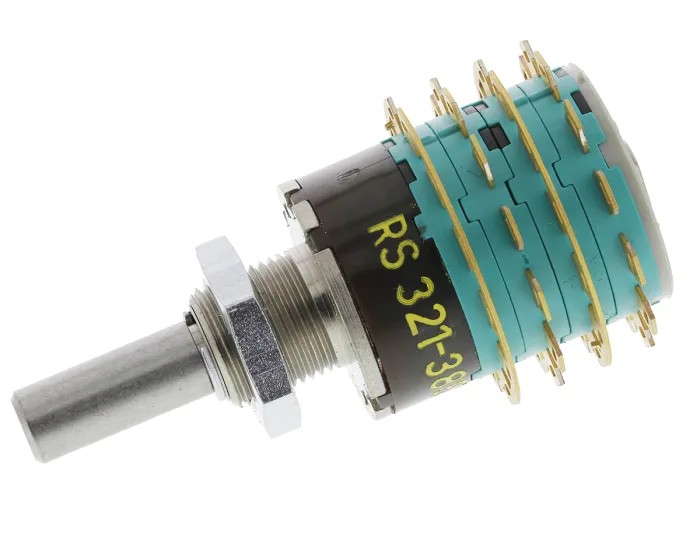

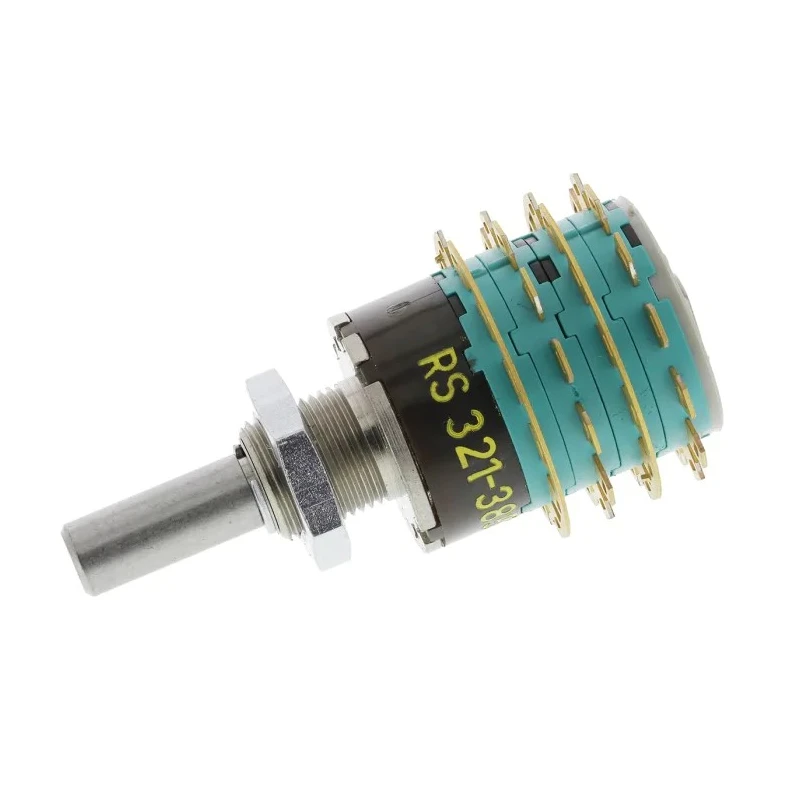

NSF GX non short 6 Position 4P6T Rotary Switch 250mA Solder Panel Mount 125V AC 60V DC 500401-000-000-000
Specifications
| Country of Origin | Germany |
|---|---|
| Diameter | 25.5mm |
| Brand | NSF |
| Height | 44mm |
| Depth | 25mm |
| Width | 24.3mm |
| Mount Type | Panel |
| Housing Material | Diallyl Phthalate |
| Contact Material | Gold |
| Series | GX non short |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4P6T |
| Number of Positions | 6 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Maximum dc Voltage | 60V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 250mA |
| Mechanical Life | 25000Operations |
| Maximum AC Voltage | 125V ac |
| Angle of Throw | 30 ° |
| NSF GX non short DP6T Rotary Switch, 250mA, SolderBrand | NSF |
Key Features
- Enclosed wafer design with polymeric housing for enhanced durability.
- Features gold contacts and 30° indexing mechanism for precise operation.
- Supports 4 poles and 6 positions with a contact configuration of 4P6T.
- Rated for 250mA current with maximum AC voltage of 125V and DC voltage of 60V.
- Panel mountable with solder terminal type, suitable for industrial electronics.
- Mechanical life of 25,000 operations, robust diallyl phthalate construction.
- Operating temperature range from -40°C to 85°C.
- Complies with RoHS standards for reliability and environmental safety.
Product Description
The NSF GX non short rotary switch, model 500401-000-000-000, is a finely engineered wafer switch designed for reliable performance in industrial and electronic applications. It features a 6 position, 4P6T contact configuration and is fully enclosed within a strong polymeric housing, making it suitable for demanding environments.
This rotary switch utilizes gold contact material for enhanced conductivity and corrosion resistance, paired with a 30° indexing mechanism that provides accurate switch control across its six selectable positions. The switch is rated for up to 250mA current, supporting maximum voltages of 125V AC and 60V DC.

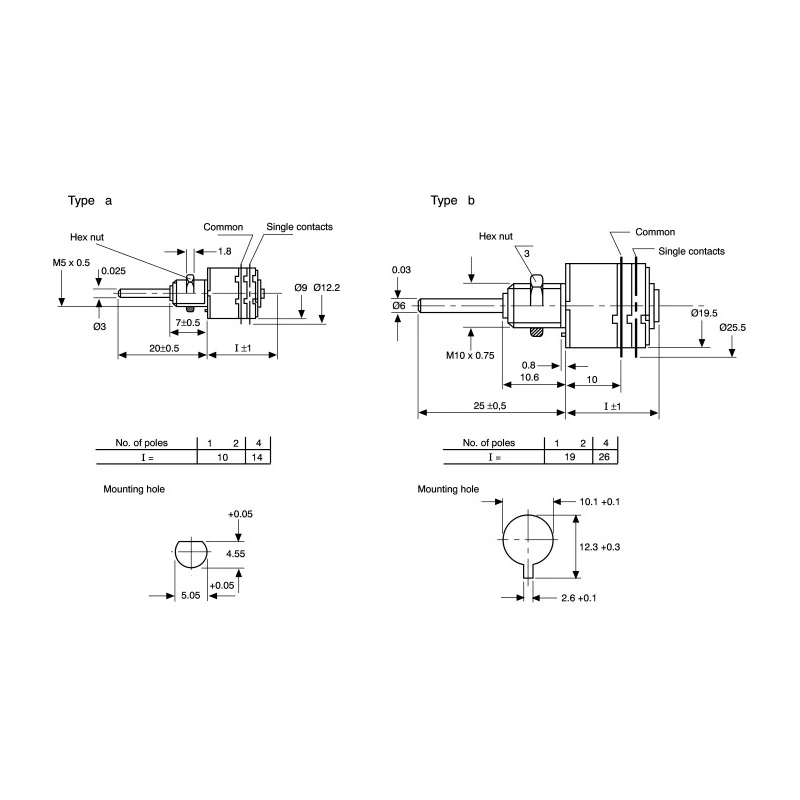

Constructed with diallyl phthalate for the housing, the design ensures both mechanical strength and electrical insulation. The terminal type is solder, ideal for secure connections in assemblies or panel installations. Panel mounting is straightforward, with a mounting diameter of 25.5mm and a depth of 25mm, while the overall height is 44mm and width is 24.3mm. Mechanical life is rated for 25,000 actuations, reflecting longevity and reliability.
Operational versatility is supported by a wide temperature range, from -40°C to 85°C, making this rotary switch suitable for industrial electronics, automation controls, instrumentation panels, and relevant manufacturing environments. The switch is not illuminated, and each throw covers a 30° angle, ensuring precise multi-position switching.
Compliant with RoHS standards, the NSF GX non short rotary switch is optimized for safety and environmental stewardship. The main applications include industrial machine controls, signal switching, laboratory automation systems, and commercial equipment panels.
Explore more Rotary Switches and components in the EnvMart electronics and industrial automation categories or browse the NSF range for professional-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 4 poles and 6 positions (4P6T) contact configuration, allowing for versatile switching options.
This rotary switch is rated for a maximum AC voltage of 125V and a maximum DC voltage of 60V.
The mechanical life of this switch is rated for 25,000 operations, indicating its longevity in use.
It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial applications.
The housing is made from diallyl phthalate, and it features gold contacts for enhanced conductivity and corrosion resistance.
The switch has a diameter of 25.5mm, a height of 44mm, a width of 24.3mm, and a depth of 25mm.
It is designed for panel mounting and utilizes a solder terminal type for secure connections.
Each throw covers an angle of 30°, allowing for precise multi-position switching.
Yes, it complies with RoHS standards, ensuring reliability and environmental safety.
It is suitable for industrial machine controls, signal switching, laboratory automation systems, and commercial equipment panels.
The switch is rated for a contact current of 250mA, making it suitable for various electronic applications.
The country of origin for this rotary switch is Germany.
