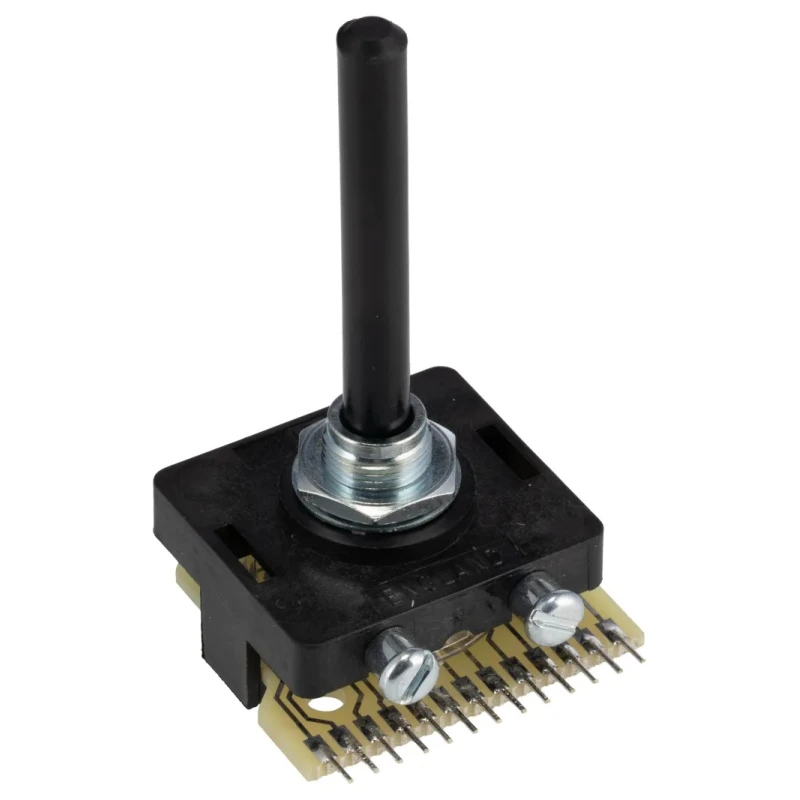

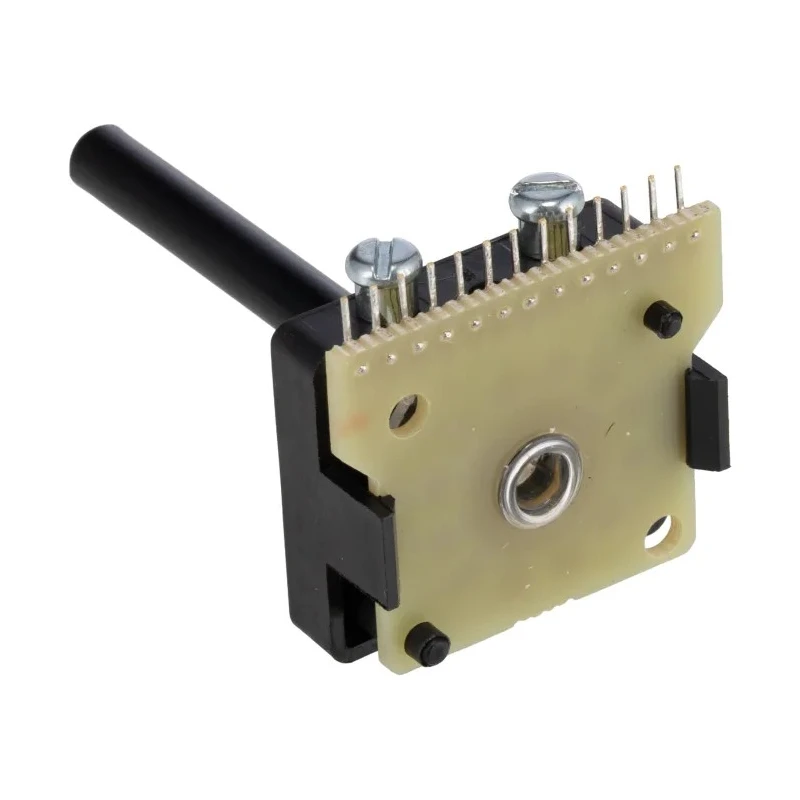

Lorlin 12 Position SP12T Rotary Switch, 500mA, Solder Terminals, Polyamide Housing SP12T
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 14mm |
| Brand | Lorlin |
| Height | 31.75mm |
| Model | SP12T |
| Depth | 16.65mm |
| Width | 35.25mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | PT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SP12T |
| Number of Positions | 12 |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 500mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 30 ° |
| Lorlin PT, 5 Position SPST Rotary Switch, 500mA, SolderBrand | Lorlin |
| Lorlin, 12 Position SPST Rotary Switch, 500 mA @ 250 V ac, Through HoleBrand | Lorlin |
Key Features
- Constructed with durable polyamide housing for enhanced insulation.
- Features 12 distinct switch positions with a single pole, 12 throw configuration.
- Operates reliably within a temperature range of -30°C to 85°C.
- Rated for a maximum AC voltage of 250V with 30° angle of throw.
- Equipped with a 6mm diameter shaft and 31.75mm height for compact fitting.
- Switch has a mechanical life expectancy of 10,000 cycles for long-term use.
- Designed for through-hole PCB mounting with terminal spacing on a 2.54mm pitch.
- Not illuminated, with off-on switch configuration for precise control.
Product Description
Lorlin SP12T 12 Position Rotary Switch with a current capacity of 500mA and solder terminal type is a versatile PCB mounting switch designed for industrial and electronic control applications.
It features a robust polyamide housing that provides electrical insulation and durability across a temperature range from -30°C to 85°C. The single pole, 12 throw (SP12T) contact configuration allows selection among 12 positions, suitable for multi-state switching requirements.
The device supports maximum AC voltage of 250V and has an angle of throw of 30°, facilitating precise switching actions. Its mechanical life expectancy of 10,000 cycles ensures reliable operation in demanding environments.
The switch is designed for through-hole PCB mounting with 2.54mm pitch terminal spacing. Its shaft diameter measures 6mm, with overall dimensions including a height of 31.75mm, width of 35.25mm, depth of 16.65mm, and diameter of 14mm. The switch comes with an adjustable stop mechanism allowing the addition of up to five wafers, expanding its functionality.
This product is RoHS compliant and manufactured in the United Kingdom, assuring good manufacturing standards and environmental compliance. It is ideal for use in industrial automation, electrical control panels, instrumentation, and circuit design applications requiring multi-position rotary switching.
Constructed with durable polyamide housing for enhanced insulation. Features 12 distinct switch positions with a single pole, 12 throw configuration. Operates reliably within a temperature range of -30°C to 85°C. Rated for a maximum AC voltage of 250V with 30° angle of throw.
Equipped with a 6mm diameter shaft and 31.75mm height for compact fitting. Switch has a mechanical life expectancy of 10,000 cycles for long-term use. Designed for through-hole PCB mounting with terminal spacing on a 2.54mm pitch.
Not illuminated, with off-on switch configuration for precise control. Includes adjustable stop mechanism allowing addition of wafers up to five extra layers. Manufactured in the United Kingdom ensuring quality construction and RoHS compliance.
Explore our extensive range of Rotary Switches and other electronic components on EnvMart to find matching parts for industrial, laboratory, manufacturing, and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SP12T rotary switch has a maximum current rating of 500mA.
It is rated for a maximum AC voltage of 250V.
The switch operates reliably within a temperature range of -30°C to 85°C.
This model features a single pole, 12 throw (SP12T) contact configuration, allowing for 12 distinct switch positions.
The switch has a height of 31.75mm, width of 35.25mm, depth of 16.65mm, and a diameter of 14mm.
It is designed for through-hole PCB mounting with terminal spacing on a 2.54mm pitch.
The housing is constructed from polyamide, providing enhanced insulation.
The SP12T rotary switch has a mechanical life expectancy of 10,000 cycles.
No, this switch is not illuminated and features an off-on switch configuration.
The angle of throw for this model is 30°.
The switch is RoHS compliant, ensuring it meets environmental standards.
Yes, it includes an adjustable stop mechanism allowing the addition of up to five wafers for expanded functionality.
