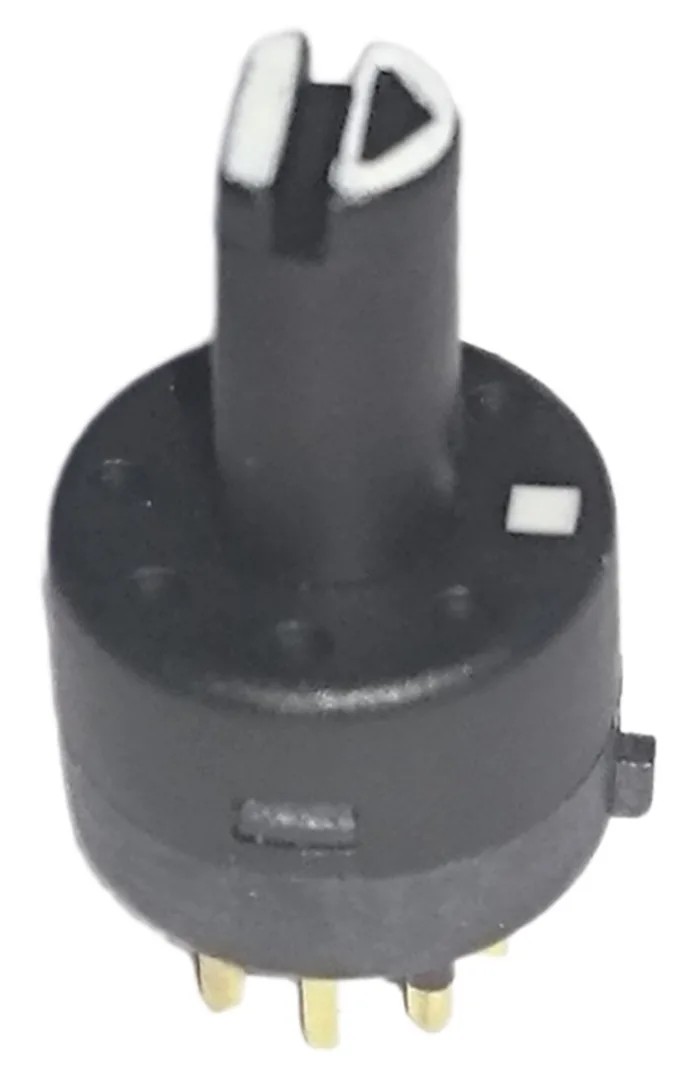

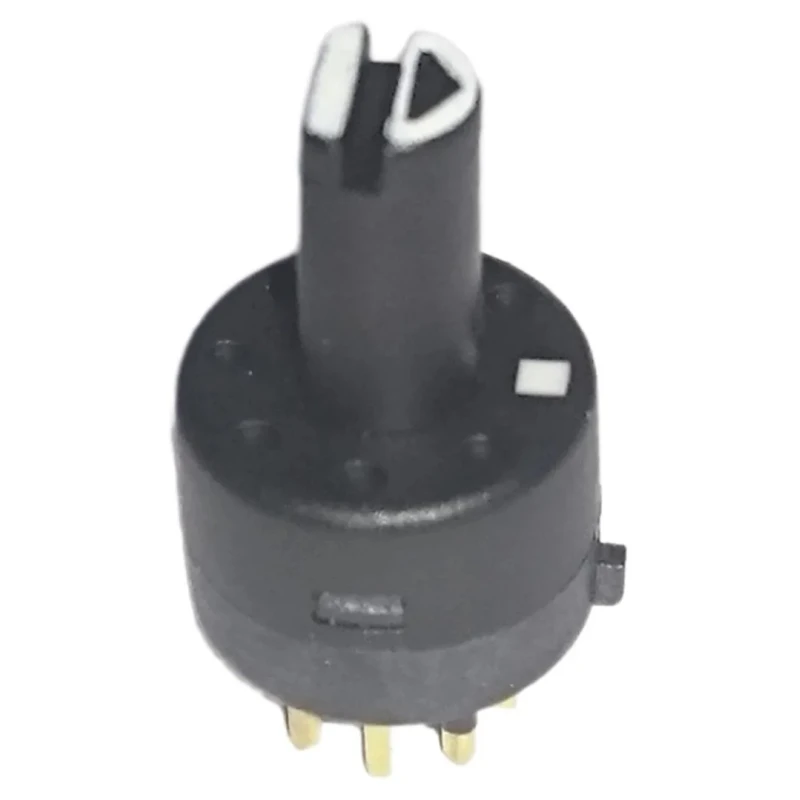

Lorlin MT SP7T Rotary Switch, 500mA, PCB Terminal, Fibreglass Reinforced Polybutylene Terephthalate Housing SP7T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.2mm |
| Brand | Lorlin |
| Height | 14.2mm |
| Model | SP7T |
| Depth | 9.2mm |
| Width | 9.2mm |
| Mount Type | PCB |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | MT |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SP7T |
| Switch Configuration | Off |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 8 |
| Standards/Approvals | RoHS |
| Switch Operation | Moulded 9.2mm diameter TO-5 Rotary Switch |
| Actuator Colour | Black |
| Switch Contact Current | 500mA |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 500V ac |
| Angle of Throw | 270 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
Key Features
- The switch supports a switch contact current of 500mA at 24V DC and 500V AC maximum voltage ratings.
- It features single-pole, 7 break-before-make positions plus an off configuration with a 270° angle of throw.
- The compact 9.2mm diameter and 14.2mm height housing is designed for precise PCB mounting using 2.54mm pin spacing between pins and 5.08mm between rows.
- The mechanical life exceeds 5000 operation cycles, ensuring durability for industrial applications.
- The switch operates reliably in temperatures ranging from -30°C to +65°C.
- Its actuator is black in colour and the switch is RoHS compliant and supplied with PCB terminal type for convenient assembly.
Product Description
Lorlin MTL-21-70 MT SP7T Rotary Switch is a compact and durable subminiature rotary switch designed for precision PCB mounting. It features a moulded 9.2mm diameter TO-5 housing manufactured from fibreglass reinforced polybutylene terephthalate, giving excellent mechanical strength and electrical insulation properties.
This rotary switch supports a high contact current rating of 500mA at 24V DC and can handle AC voltages up to 500V, making it suitable for a wide range of electrical and automation control applications. The switch configuration includes a single pole with up to 7 break-before-make positions plus an off setting, operated with a 270° angle of throw for precise control.
The footprint and pin spacing are optimised for standard PCB mounting with 2.54mm between pins and 5.08mm between rows. The mechanical life rating of 5000 cycles ensures reliable switching in industrial environments. The operating temperature range from -30°C to +65°C suits diverse conditions including industrial, laboratory, and commercial automation.
The actuator is finished in black colour and the switch is RoHS compliant, ensuring adherence to environmental standards. The PCB terminal type facilitates straightforward integration into printed circuit boards.
Compact 9.2mm TO-5 fibreglass reinforced polybutylene terephthalate housing. High current rating of 500mA DC at 24V and 500V AC maximum voltage. Single pole, 7 break-before-make positions plus off, 270° angle of throw. Footprint with 2.54mm pin spacing and 5.08mm row spacing for PCB mounting.
Mechanical life greater than 5000 cycles for durable use. Operating temperature range from -30°C to +65°C. Black actuator colour and RoHS compliant. PCB terminal type offers easy assembly integration.
This Lorlin rotary switch is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and laboratory instrumentation requiring reliable and precise switching performance. Explore similar Rotary Switches and components in the Electronics & Electricals category at EnvMart for broader choices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch supports a maximum contact current rating of 500mA.
It can handle a maximum voltage of 500V AC and 24V DC.
The switch has a diameter of 9.2mm and a height of 14.2mm.
The angle of throw for this model is 270°.
It features a PCB terminal type for convenient assembly.
The mechanical life of this switch exceeds 5000 operation cycles.
It operates reliably in temperatures ranging from -30°C to +65°C.
The housing is made from fibreglass reinforced polybutylene terephthalate.
This rotary switch has 7 break-before-make positions plus an off configuration.
The pin spacing is 2.54mm between pins and 5.08mm between rows.
Yes, this rotary switch is RoHS compliant, ensuring adherence to environmental standards.
It is suitable for industrial automation, electrical control panels, HVAC systems, and laboratory instrumentation.
