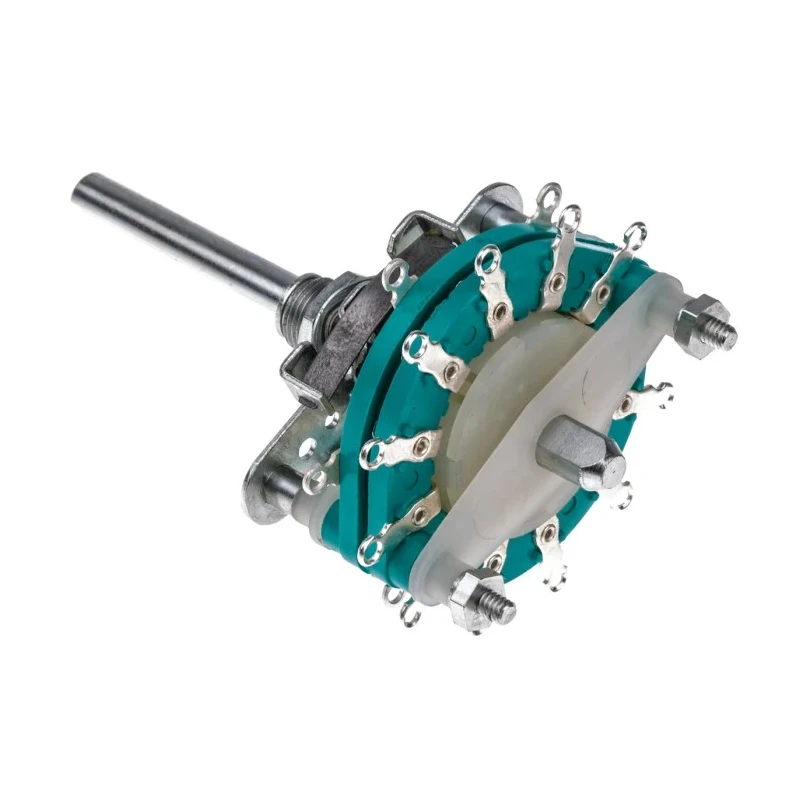

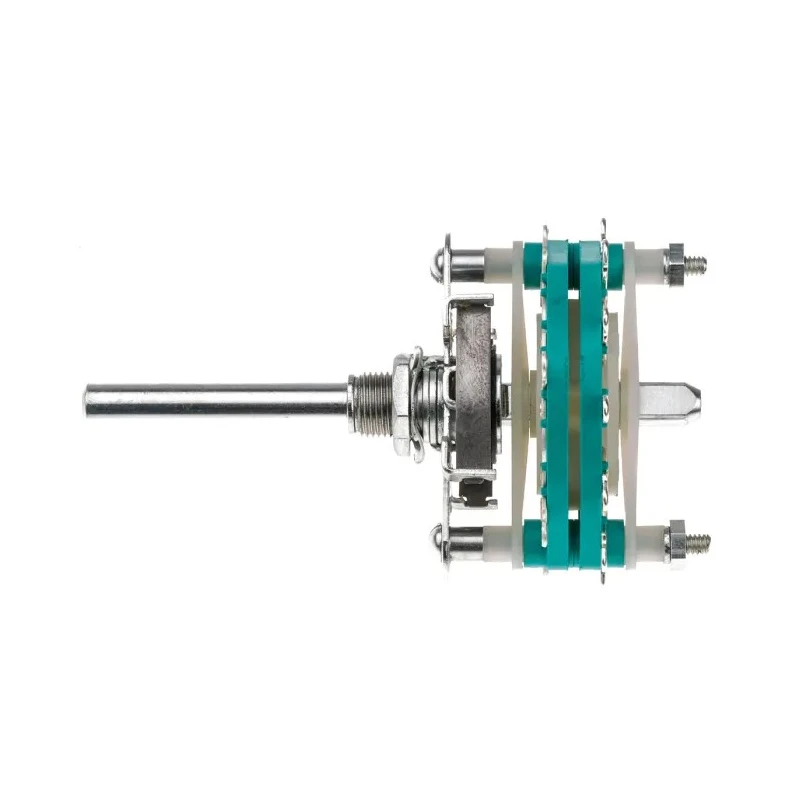

NSF MSD Rotary Switch 6 Position DP6T 6A Solder Panel Mount
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 49.2mm |
| Brand | NSF |
| Height | 29.4mm |
| Model | DP6T |
| Depth | 39.7mm |
| Width | 47.6mm |
| Mount Type | Panel |
| Housing Material | Zinc Plated |
| Series | MSD |
| Contact Configuration | DP6T |
| Number of Positions | 6 |
| Switch Configuration | 2 to 12 Ways |
| Terminal type | Solder |
| Contact Resistance | 5mΩ |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Switch Contact Current | 6A |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 250V ac |
| NSF MSD, 12 Position SP12T Rotary Switch, 6A, SolderBrand | NSF |
Key Features
- Heavy-duty rotary switch for high current circuit selection.
- Double pole, six throw (DP6T) configuration enables versatile switching.
- Durable zinc-plated housing provides corrosion resistance.
- Supports up to 250V AC and 30V DC for broad compatibility.
- Mechanical life rated for 5,000 cycles ensuring reliability.
- Solder terminals allow secure and easy wiring.
- Panel mount design simplifies installation process.
- RoHS compliance supports regulated industrial applications.
Product Description
NSF MU452274MSD1 Rotary Switch is engineered for robust electrical switching applications, featuring a double pole, six throw (DP6T) contact configuration. This rotary switch is designed for control panels and equipment requiring multiple circuit switching and offers a high amperage rating of 6A for versatile performance.
The switch employs a zinc-plated housing for enhanced durability and resistance to environmental wear. Its panel mount design simplifies installation in electrical cabinets and machines, while solder terminals offer a secure and stable connection for wires.
Supporting a maximum AC voltage of 250V and a maximum DC voltage of 30V, this rotary switch is suitable for a wide range of industrial, automation and control environments. Typical uses include manufacturing systems, HVAC controls, power distribution boards, laboratory equipment, and commercial electrical installations requiring multiple selection and reliable performance.
The mechanical life is rated for 5,000 cycles, ensuring longevity and reduced maintenance. Adjustable rotation stop limits and heavy-duty spring loaded break-before-make wiping contacts maximize safety and operational efficiency. The contacts exhibit a resistance of 5mΩ, supporting precise circuit selection and low loss operation.
Dimensional specifications include a depth of 39.7mm, width of 47.6mm, diameter of 49.2mm, and height of 29.4mm, facilitating seamless integration even in space-constrained panels.
Compliance with RoHS standards ensures suitability for regulated industrial and commercial projects, while panel mount type and solder terminal compatibility allow for flexible assembly in varied environments.
The NSF MSD series, including MU452274MSD1, is recognized for its mechanical resilience, adjustable rotation limits, and precise switching capability, making it ideal for control system design and electrical maintenance tasks.
Explore other Rotary Switches and industrial electrical solutions in the EnvMart Switches & Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This rotary switch supports a maximum current rating of 6A, making it suitable for high current circuit selection.
It can handle a maximum AC voltage of 250V and a maximum DC voltage of 30V, providing broad compatibility for various applications.
The switch features a double pole, six throw (DP6T) contact configuration, allowing versatile switching capabilities.
The mechanical life of this switch is rated for 5,000 cycles, ensuring reliability over time.
It uses solder terminals, which provide a secure and stable connection for wiring.
The dimensions are as follows: diameter 49.2mm, height 29.4mm, width 47.6mm, and depth 39.7mm.
The housing is made of zinc-plated material, which provides corrosion resistance and durability.
Yes, it is RoHS compliant, ensuring it meets regulated industrial application standards.
This model is designed for panel mount installation, which simplifies the setup process in electrical cabinets and machines.
It is suitable for various applications including manufacturing systems, HVAC controls, and power distribution boards.
This switch includes adjustable rotation stop limits and heavy-duty spring loaded break-before-make wiping contacts to maximize safety and operational efficiency.
The contact resistance is rated at 5mΩ, supporting precise circuit selection and low loss operation.
