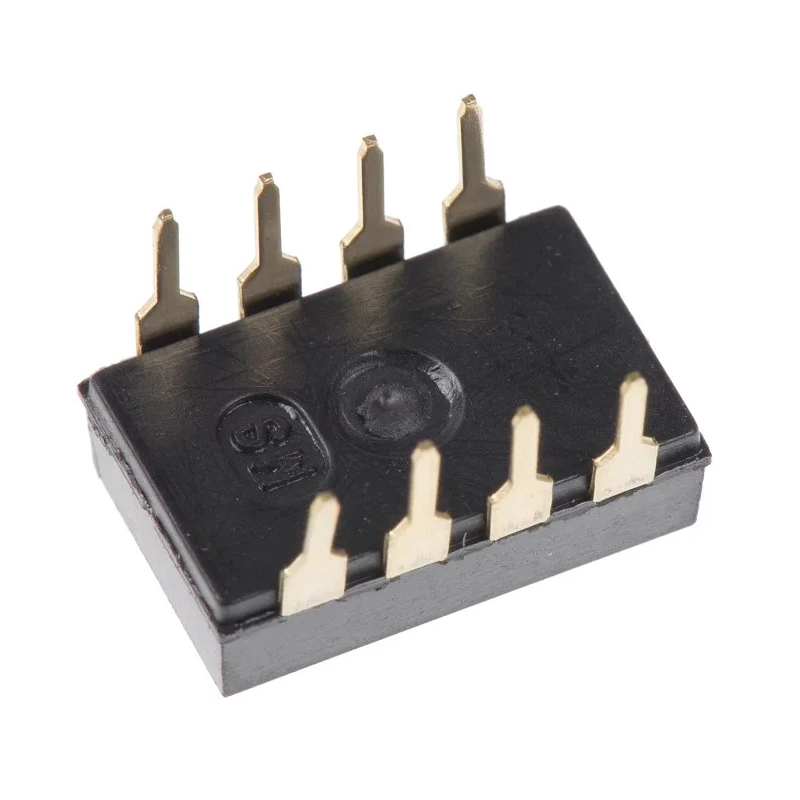

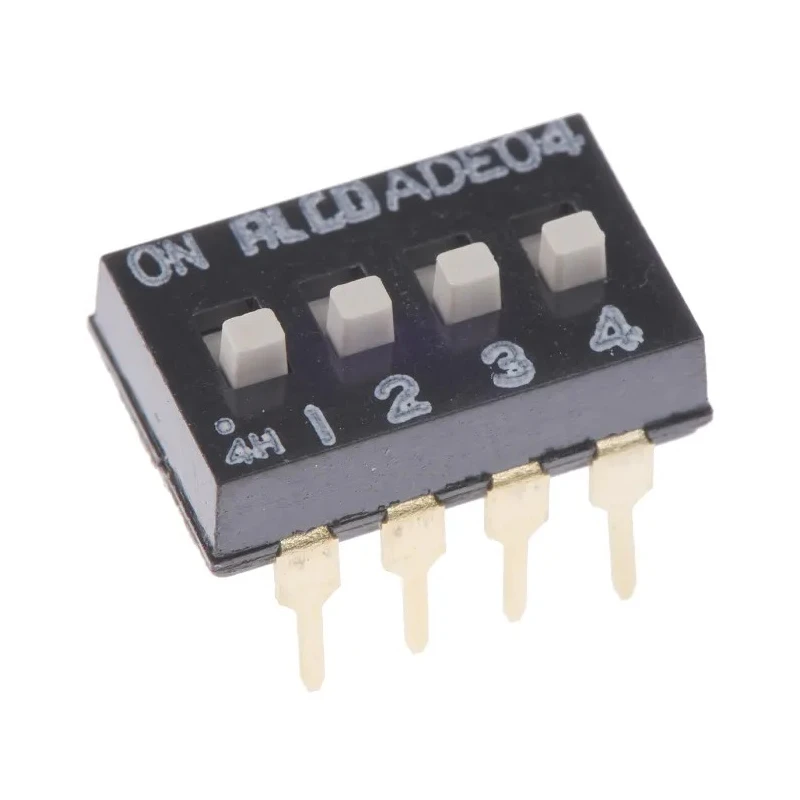

TE Connectivity Rotary Coded DIP Switch Through Hole Slide Actuator ADE0404
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE0404 |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
Key Features
- Rotary coded DIP switch designed for through hole mounting.
- Slide actuator for easy and reliable switching operation.
- High pressure wiping contacts allow solvent or aqueous cleaning.
- Can withstand vapour phase reflow and wave soldering conditions.
- Contact resistance rated at 50mΩ for dependable electrical performance.
- Gold flash plated contacts and black PPS housing for durability.
- Auto-insertable construction for efficient PCB manufacturing.
- Compact 7.5 x 3.5 mm form factor with 2.54 mm centerline spacing.
Product Description
TE Connectivity ADE0404 Rotary Coded DIP Switch combines high reliability, compact design, and convenient slide actuator control, making it an excellent solution for circuit configuration and selection applications. This DIP switch features through hole mounting, making it suitable for use in various electronics assemblies, including industrial and commercial PCBs.
The ADE0404 model offers extended slide actuators, distinguishing it from the ADF series which uses flush actuators. The high pressure contact system ensures consistent, low-resistance connections, and allows for both aqueous and solvent cleaning without requiring a tape seal. This enhances durability and simplifies maintenance for manufacturers and users alike.
The switch is engineered to withstand stringent assembly conditions including vapour phase reflow and wave soldering, retaining functional integrity throughout standard soldering processes. Its gold flash plated contacts further improve corrosion resistance and electrical reliability, while the housing is constructed from PPS for robust mechanical performance.
Designed for auto-insertable assembly, the ADE0404 supports efficient manufacturing and integration onto printed circuit boards. Its compact footprint, with 7.5 x 3.5 mm body size and 2.54 mm centerline spacing, fits well in dense electronic layouts, supporting both industrial control circuits and laboratory instrumentation.
Explore more Rotary Switches and related electronic components from TE Connectivity and other leading brands in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the ADE0404 rotary coded DIP switch is rated at 50mΩ, ensuring dependable electrical performance.
This model is designed for through hole mounting, making it suitable for various electronics assemblies.
The ADE0404 has a compact form factor with dimensions of 7.5 x 3.5 mm and a centerline spacing of 2.54 mm.
The ADE0404 features a slide actuator, which allows for easy and reliable switching operation.
Yes, it is engineered to withstand vapour phase reflow and wave soldering conditions, retaining functional integrity throughout standard soldering processes.
The switch has gold flash plated contacts for corrosion resistance and a housing made from PPS for robust mechanical performance.
Yes, the high pressure wiping contacts allow for both aqueous and solvent cleaning without requiring a tape seal.
This model is suitable for circuit configuration and selection applications in various electronics assemblies, including industrial and commercial PCBs.
The ADE0404 is manufactured in India.
Yes, the ADE0404 is designed for auto-insertable assembly, supporting efficient manufacturing and integration onto printed circuit boards.
The ADE0404 features extended slide actuators, while the ADF series uses flush actuators, providing different operational characteristics.
Gold flash plating enhances corrosion resistance and improves electrical reliability of the contacts in the ADE0404.
