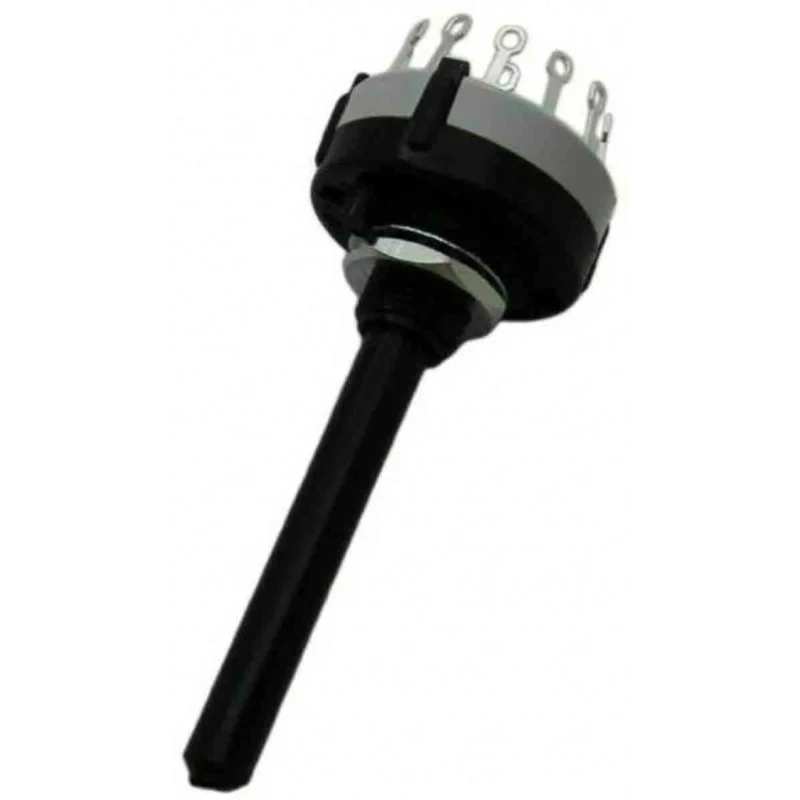

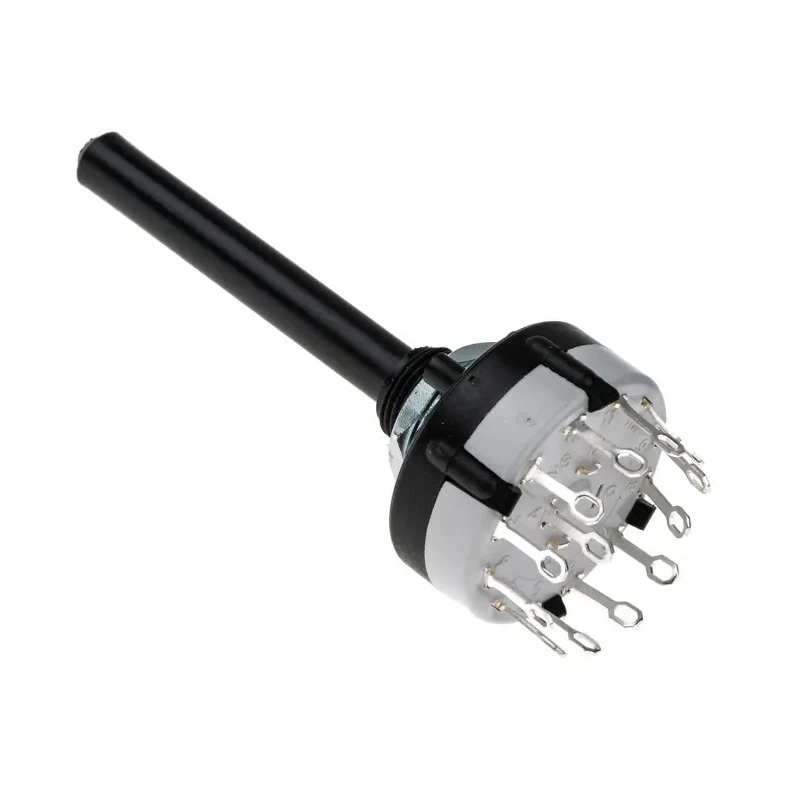

Lorlin 12 Position SPST Rotary Switch 150mA, Polyamide Housing, Panel Mount CK1029

Lorlin CK1029 12 Position SPST Rotary Switch is a robust component designed for reliable switching applications in electrical, automation, and control systems. It features a compact polyamide housing with a diameter of 27.5mm and a height of 71.1mm, making it ideal for panel mounting in industrial and commercial equipment. This rotary switch supports a single-pole, single-throw (SPST) contact configuration with 12 selectable positions, providing precise and versatile control options.

The switch is rated for a maximum contact current of 150mA, suitable for low current applications, and supports AC voltage up to 250V and DC voltage up to 24V. The solder tab terminals allow for reliable and secure electrical connections, simplifying installation. With a mechanical life of 10,000 cycles, the CK1029 switch offers long-term durability and consistent performance in demanding environments.

Designed for diverse operating conditions, it operates within a temperature range of -30°C to 85°C, enabling use in both industrial and laboratory settings. The actuator features a silver color finish and a 90° angle of throw, providing clear tactile feedback and ease of operation. The switch also offers selectable indexing options including 30° indexing and continuous rotation without indexing stops, accommodating various design requirements.

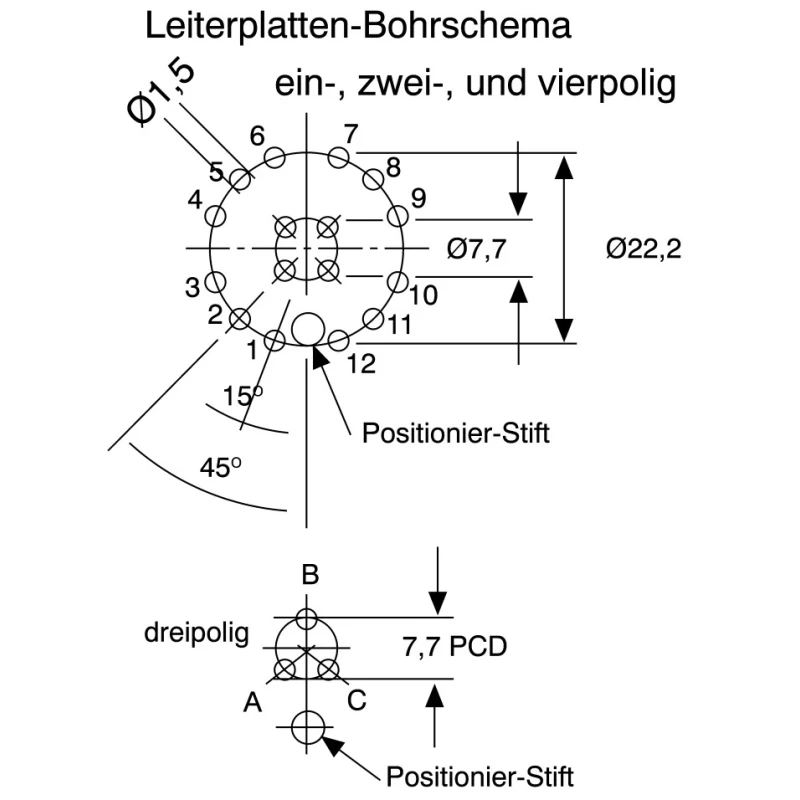

Dimensions include a 50mm long shaft with a 6mm diameter spindle, featuring an 8mm long bush with an M10x0.75mm thread for easy mounting of collet knobs. This adds to the flexibility of user interface design and customization. The product complies with RoHS directives, ensuring it meets environmental and safety regulations.

12-position SPST rotary switch for versatile switching applications. Compact polyamide housing provides electrical insulation and mechanical protection. Rated for 150mA current with AC 250V and DC 24V compatibility. Solder tab terminals for secure and stable electrical connections.

Mechanical lifespan of 10,000 cycles guarantees durability. Operates in harsh temperature ranges (-30°C to 85°C) suitable for industrial uses. Silver actuator and 90° throw angle for intuitive manual operation. Panel mount with adjustable stop and continuous rotation options.

Compliant with RoHS environmental standards.

This switch is ideal for use in electrical control panels, industrial automation equipment, laboratory instruments, and HVAC systems. It supports precise selection and switching duties in low current circuits. Lorlin’s CK series is recognized for quality and robustness in demanding environments.
