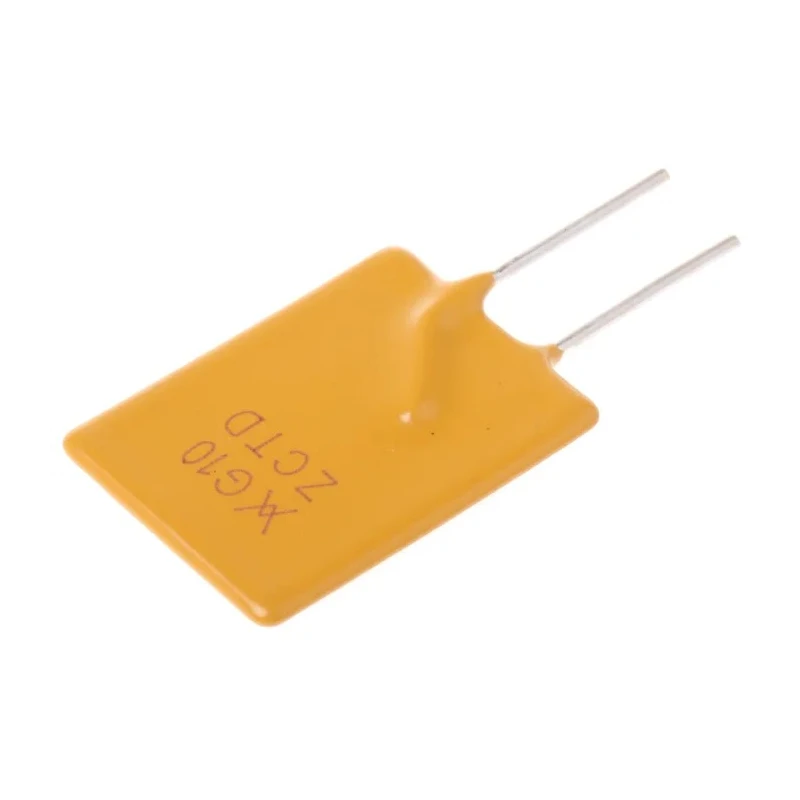

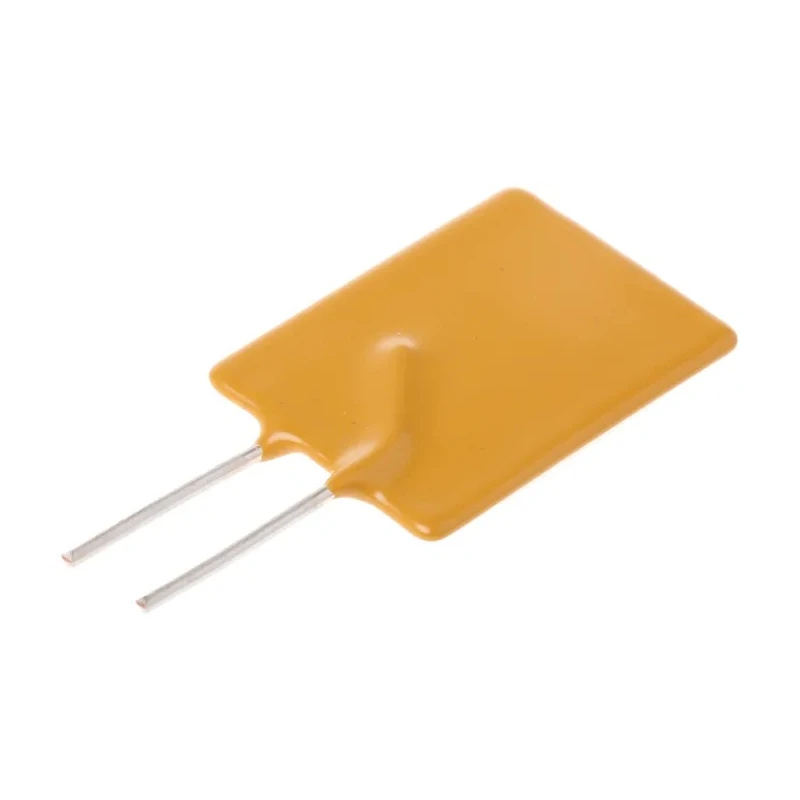

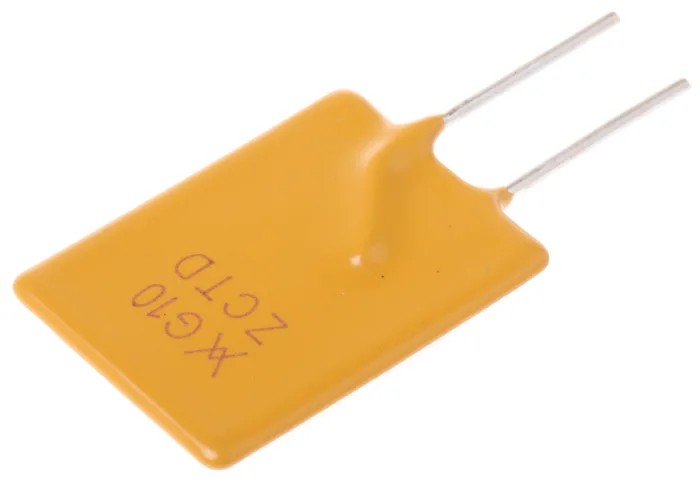

Littelfuse 16V 10 A Resettable Fuse Radial Lead Orientation RGEF1000

Littelfuse RGEF1000 is a 10 A resettable fuse designed for electrical and electronic circuit protection operating at 16 volts. This device offers automatic resetting functionality, providing efficient and maintenance-free overcurrent protection through rapid switching from low resistance to high resistance during electrical overload or short circuit conditions.

The radial lead fuse features a compact form factor with dimensions of 16.5 mm length, 25.2 mm height, and 3 mm width, making it suitable for PCB mounting and wire ended configurations.

With a hold current rating of 10 amps and a trip current of 17 amps, it acts swiftly within 6 seconds to prevent circuit damage while ensuring quick automatic reset once the fault condition is resolved and power is restored.

Constructed to withstand a broad operating temperature range from -40°C up to 60°C, and optimized for low resistance (minimum 0.005 Ω, maximum 10 mΩ) and power dissipation of 3.6 watts, the fuse ensures reliable performance in demanding environments.

This fuse conforms to international safety and environmental standards including CSA, UL, TUV, and RoHS, confirming its quality and safety compliance.

Applications for the Littelfuse RGEF1000 resettable fuse span diverse industrial and commercial areas such as security systems, power supplies and transformers, power switching devices, automotive and medical instruments, instrumentation and control systems, computing peripherals, and telecommunications equipment.

Automated resettable protection for electrical and electronic circuits. Rated hold current of 10 A with trip current of 17 A for precise overload defense. Rapid trip time of 6 seconds to minimize circuit damage risks. Compact radial lead design measuring 16.5 mm length, 25.2 mm height, and 3 mm width.

Operates safely within temperature range from -40°C to 60°C. Low resistance characteristics with minimum resistance of 0.005 Ω and maximum resistance of 10 mΩ. Power dissipation rated at 3.6 W for efficient thermal performance.

Certified to CSA, UL, TUV safety standards and RoHS compliant. Maintenance-free device ideal for security systems, power supplies, automotive and medical equipment. Explore our extensive selection of Resettable Fuses at EnvMart for versatile circuit protection solutions aligned to your industrial, laboratory, and manufacturing needs.
