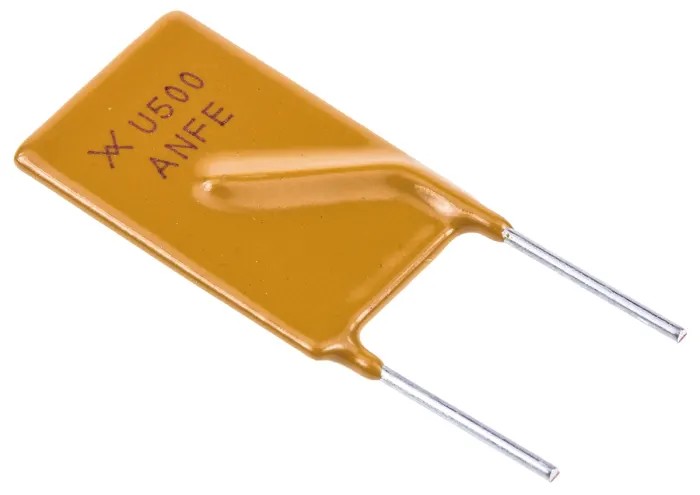

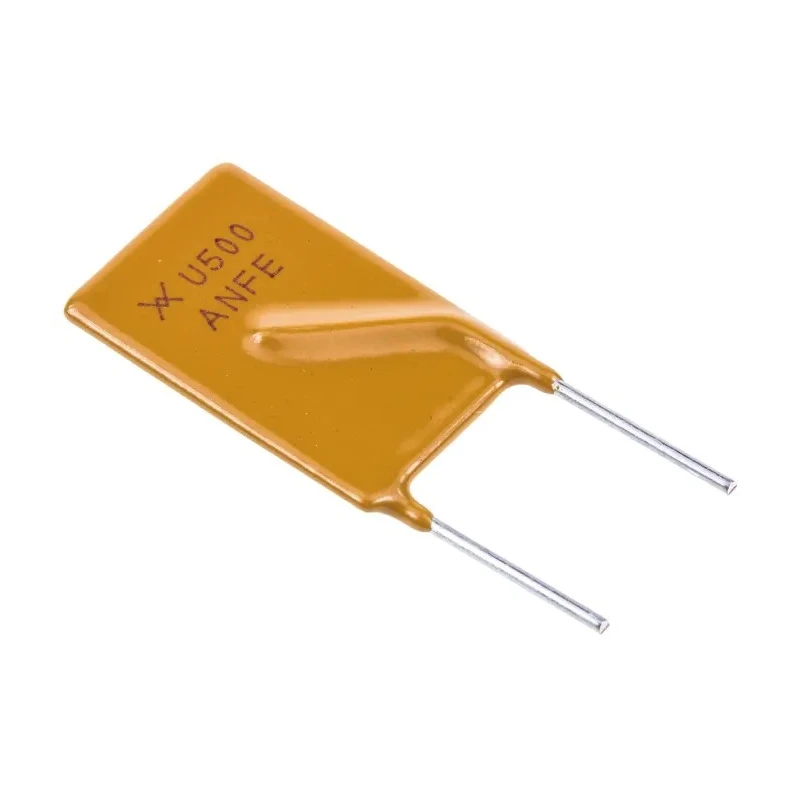

Littelfuse Resettable Fuse 5A Hold Current 30V dc Voltage Radial Lead RUEF500
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V dc |
| Brand | Littelfuse |
| Height | 24.1mm |
| Length | 14mm |
| Model | RUEF500 |
| Width | 3mm |
| Current Rating | 100A |
| Series | RUEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 10A |
| Power Dissipation | 3W |
| Standards/Approvals | TUV, RoHS, CQC, CSA, UL |
| Time to Trip | 14.5s |
| Hold Current | 5A |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
| Lead Orientation | Radial |
Key Features
- Automatically resets thousands of times without replacement necessity.
- Radial lead orientation allows easy PCB wire-ended installation.
- Rapidly switches to high resistance during overcurrent or short circuit events.
- Maintenance free and compact design with no fuse holder required.
- Approved and compliant with TUV, RoHS, CQC, CSA, and UL standards.
- Power dissipation up to 3W enhances performance during load.
- Suitable for security, power supplies, automotive, medical, instrumentation, and telecom applications.
- Operates reliably from -40°C to +60°C ambient temperature.
Product Description
Littelfuse RUEF500 Resettable Fuse is a robust circuit protection device engineered for electrical and electronic applications requiring a 5 amp hold current and 30V dc voltage rating. It features radial lead design enabling easy application in PCB wire-ended configurations.
This fuse rapidly transitions from a low resistance state to a very high resistance state when an overload or short circuit occurs, effectively protecting the circuit from damage.
The fuse automatically resets itself thousands of times without the need for replacement, providing a maintenance-free solution with a compact size that eliminates the need for fuse holders.
Certified to stringent industry standards including TUV, RoHS, CQC, CSA, and UL, the fuse ensures compliance and reliability in demanding environments.
Power dissipation up to 3W supports stable operation during current surges, while its operating temperature range from -40°C to 60°C suits diverse industrial and commercial conditions.
Typical applications include security systems, power supplies and transformers, power switching devices, automotive and medical equipment, instrumentation, control systems, computers, peripheral devices, audio visual, and telecommunications equipment.
Automatically resets thousands of times without replacement. Radial lead orientation for easy PCB mounting. Maintains circuit integrity by switching to high resistance on faults. No fuse holder required, saving space and maintenance costs.
Meets multiple international safety and quality standards. Compact dimensions allow flexible system integration. Wide operating temperature range for various environments. Power dissipation capacity supports surge loads effectively.
Reliable series RUEF range ensures consistent performance. Suitable across industrial, laboratory, automotive, and communications sectors. Explore more high-quality fuses and resettable circuit protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 5A.
It has a maximum voltage rating of 30V dc.
The dimensions are 24.1mm in height, 14mm in length, and 3mm in width.
The operating temperature range is from -40°C to 60°C.
It is certified to TUV, RoHS, CQC, CSA, and UL standards.
During an overload or short circuit, it rapidly switches from a low resistance state to a very high resistance state to protect the circuit.
The power dissipation capacity is up to 3W.
The trip current for this model is 10A.
The minimum resistance is 0.01Ω and the maximum resistance is 50mΩ.
Yes, it is suitable for automotive applications among others such as security systems and medical equipment.
It features a radial lead orientation for easy PCB mounting.
This model can automatically reset itself thousands of times without the need for replacement.
