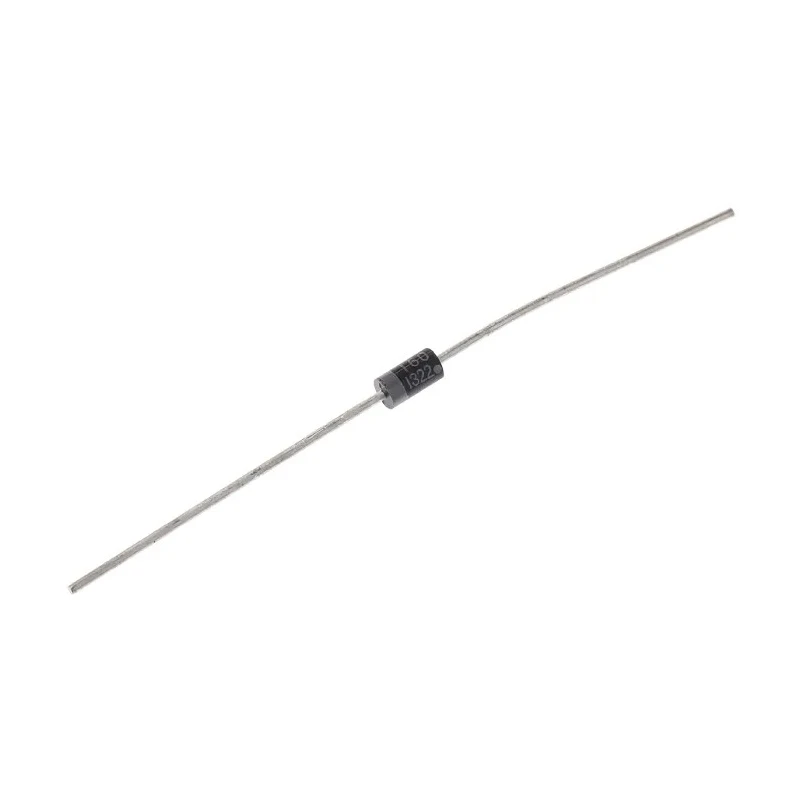

onsemi 600 V 1 A Switching Diode Through Hole Package DO-41 MUR160G

onsemi MUR160G is a reliable switching diode rated at 600 volts and 1 ampere with a DO-41 through hole package. It is designed for applications requiring efficient switching performance in electronic circuits, including power supply rectification and general diode switching uses.

This diode features a single diode configuration with a pin count of two, facilitating simple integration into through hole PCB designs. Its maximum continuous forward current is 1 A, making it suitable for moderate power electronic devices.

Key electrical specifications include a peak reverse repetitive voltage of 600 V and a low maximum forward voltage drop of 1.25 V, which contributes to reduced power losses and improved efficiency. Its peak reverse recovery time is fast at 75 ns, supporting high frequency switching applications.

The diode can withstand harsh operating environments with a minimum operating temperature of -65°C and a maximum operating temperature of 175°C. The compact physical dimensions of 5.2 mm length and height with 2.7 mm diameter make it ideal for space-constrained designs.

With a peak non-repetitive forward surge current of 35 A, it withstands transient overload conditions ensuring robustness. Though not automotive standard qualified, it is suitable for various industrial, electronic manufacturing, and repair applications.

Package type DO-41 ensures compatibility with standard mounting and assembly methods. This diode is an excellent choice for engineers and OEMs focused on high-quality semiconductor components for switching diode applications.

Explore more semiconductor components from onsemi and related Switching Diodes with proven performance on EnvMart. This diode supports a maximum continuous forward current of 1 ampere. It features a peak repetitive reverse voltage rating of 600 volts for robust operation.

The device exhibits a low maximum forward voltage drop of 1.25 volts. It offers a fast peak reverse recovery time of 75 nanoseconds. Operating temperature ranges from -65°C to 175°C, suitable for harsh environments. The diode has compact dimensions: 5.2 mm length and height, with 2.7 mm diameter and width.

It is designed with single diode configuration and switching rectifier type. Pin count is 2, designed for easy through hole mounting. Peak non-repetitive forward surge current capability is 35 A. The diode is not automotive standard qualified.
