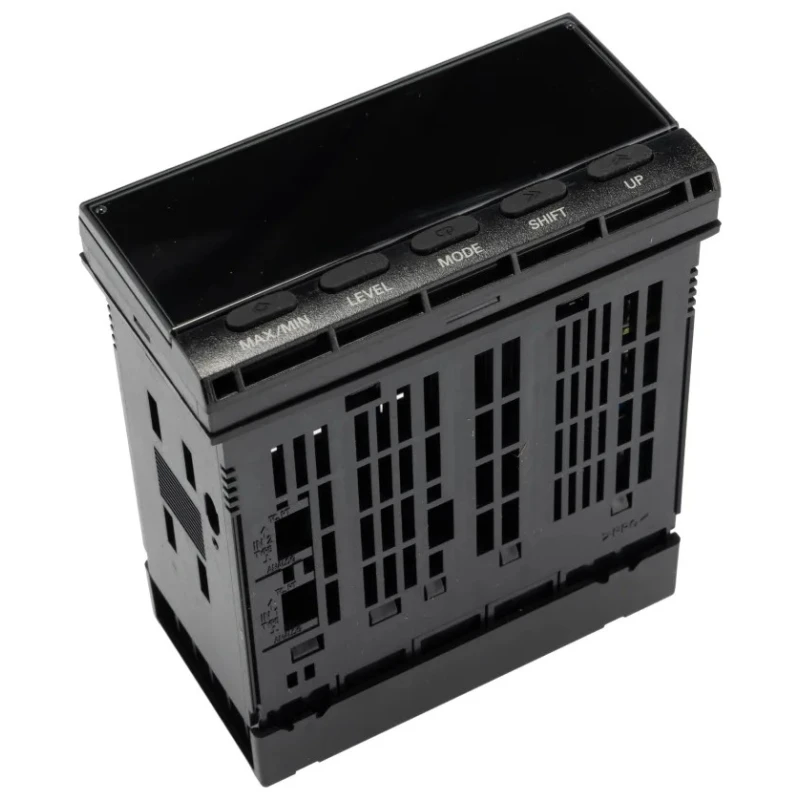

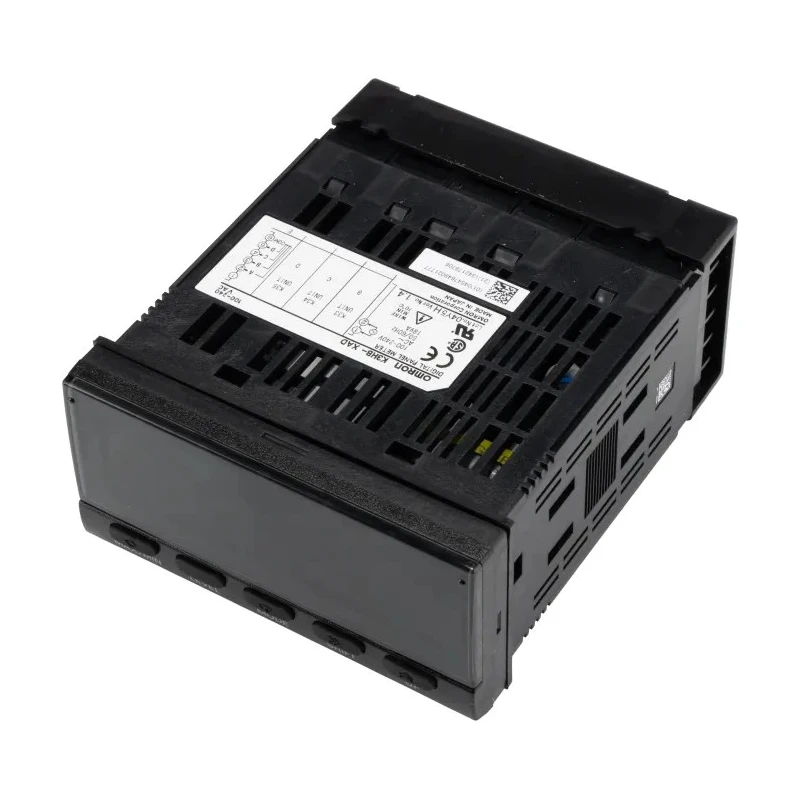

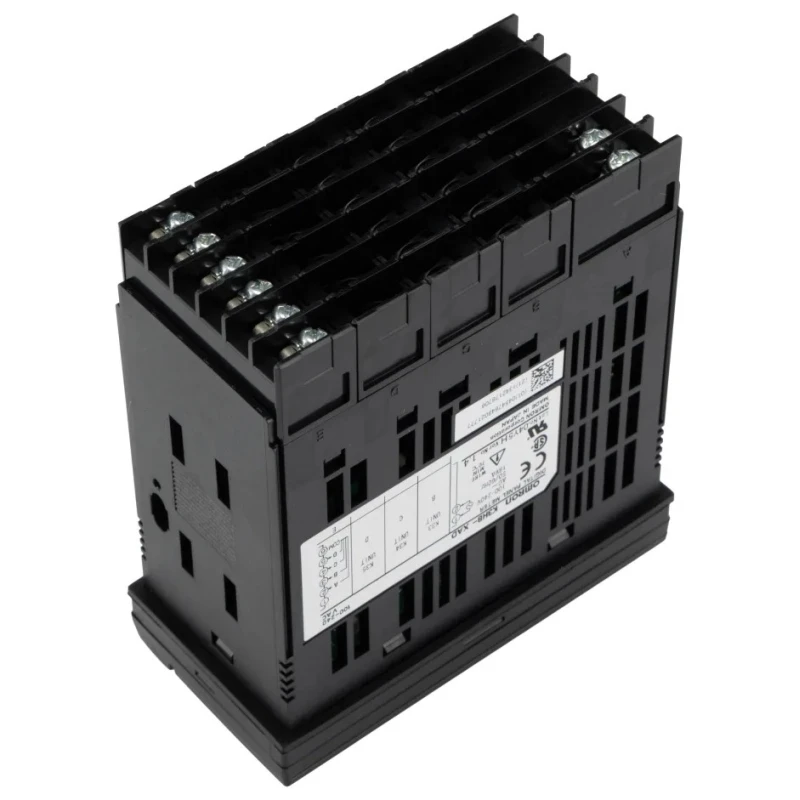

Omron Digital Panel Multifunction Meter LED Display Current Voltage 45mm x 92mm K3HB
Specifications
| Country of Origin | Japan |
|---|---|
| Display Type | LED |
| Brand | Omron |
| Model | K3HB |
| Depth | 112mm |
| Series | K3HB |
| Maximum Operating Temperature | 55°C |
| Meter Type | Digital |
| Number Of Digits | 5 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.2mm |
| Properties Measured | Current, Voltage |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| Maximum Measurement | 240 V |
| K3NX dc current i/p process meter,14.2mmBrand | Omron |
Key Features
- Measures current and voltage with a digital LED display.
- Compact cutout size of 45mm height and 92mm width for panel mounting.
- 5-digit display with 14.2mm digit height for clear readability.
- Operates between -10°C and 55°C ambient temperature.
- Features IP66-rated housing for protection against dust and water.
- Supports up to 240 V maximum measurement range.
- Includes a programmable bar graph to visually indicate measurement magnitude.
- External event inputs allow versatile measurement and discrimination applications.
Product Description
Omron K3HB Digital Panel Multifunction Meter with LED display is designed for precise measurement of analog input DC signals such as current and voltage. The device features a clear, color-change LED display with measurement accuracy of ±0.1% reading ±1 digit, providing reliable readings for industrial automation and process control applications.
With compact panel cutout dimensions of 45 mm height by 92 mm width and a depth of 112 mm, this meter integrates easily into control panels. It is rated IP66 for robust dust and water resistance, making it suitable for harsh industrial environments. The unit operates reliably within temperature ranges from -10°C to 55°C.
The K3HB series replaces the older K3N series and features standard linear scalable inputs for flexibility. External event input functionality enhances its ability to perform various measurement and discrimination tasks. A programmable bar graph visualizes measurement magnitudes intuitively, aiding quick assessments on the panel.
Additional operational insights are available via the integrated position meter for monitoring operating status trends. Users can further extend meter capabilities through the installation of up to three option boards.
Applications include industrial automation systems, electrical control panels, manufacturing process monitoring, and laboratory instrumentation where accurate current and voltage measurement is essential.
Measures current and voltage with a digital LED display. Compact cutout size of 45mm height and 92mm width for panel mounting. 5-digit display with 14.2mm digit height for clear readability. Operates between -10°C and 55°C ambient temperature.
Features IP66-rated housing for protection against dust and water. Supports up to 240 V maximum measurement range. Includes a programmable bar graph to visually indicate measurement magnitude. External event inputs allow versatile measurement and discrimination applications.
Equipped with a position meter for monitoring operational status and trends. Compatible with option boards for added functionalities (up to 3 maximum). Explore the Omron brand and Digital Panel Multifunction Meter category on EnvMart for additional process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measurement range of the Omron K3HB is 240 V.
This model requires a cutout size of 45 mm in height and 92 mm in width for panel mounting.
It operates reliably within a temperature range of -10°C to 55°C.
The K3HB has a measurement accuracy of ±0.1% of the reading ±1 digit.
It features a clear LED display with a digit height of 14.2 mm for readability.
This multifunction meter supports analog input DC signals for current and voltage measurements.
Yes, it has an IP66 rating, providing protection against dust and water, making it suitable for harsh industrial environments.
Users can extend the capabilities of the K3HB by installing up to three option boards.
It is suitable for applications in industrial automation systems, electrical control panels, and laboratory instrumentation.
The depth of this model is 112 mm.
Yes, it includes a programmable bar graph to visually indicate measurement magnitude.
The K3HB is manufactured in Japan.
