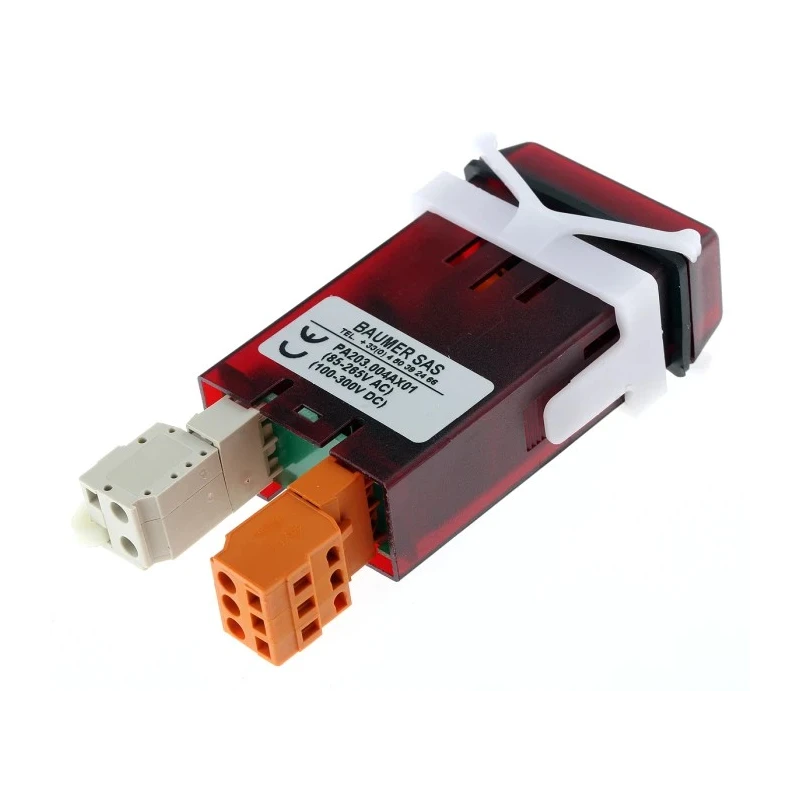

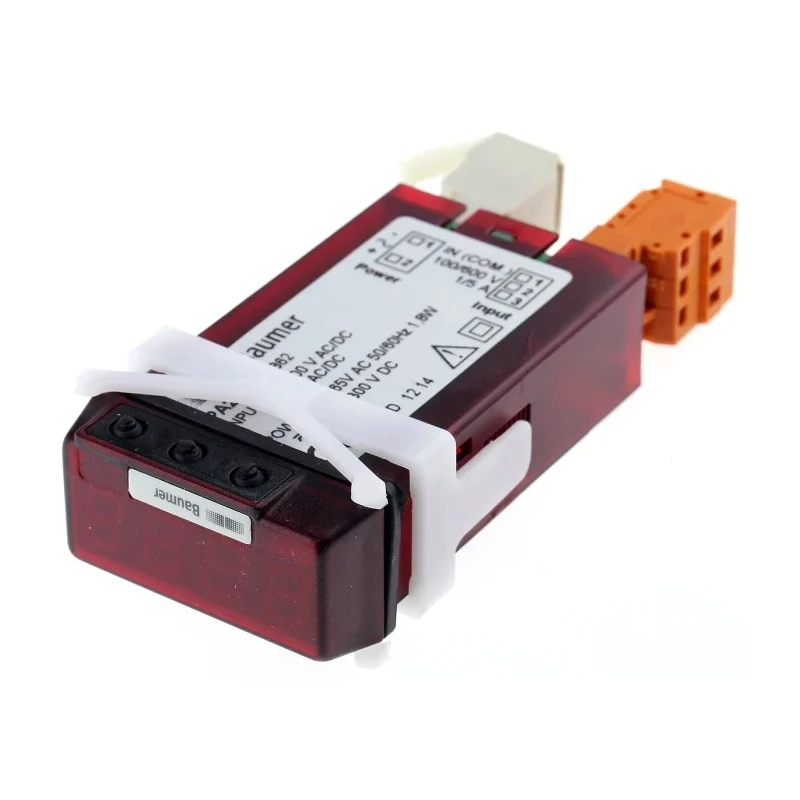

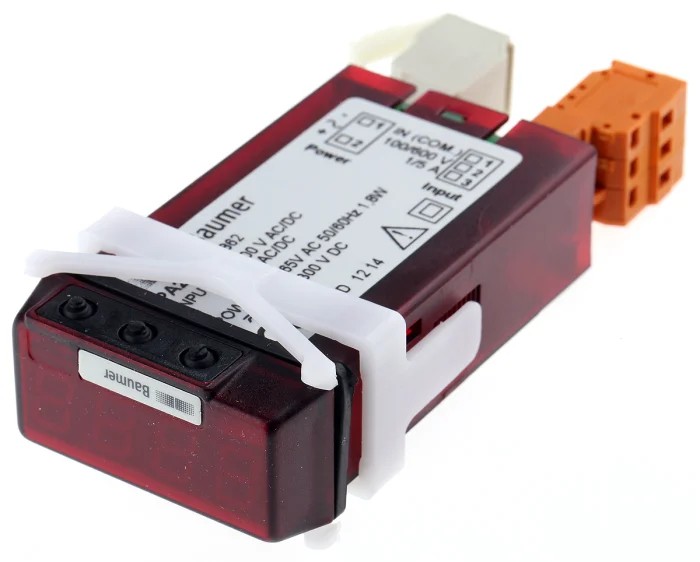

Baumer Digital Panel Multifunction Meter with LED Display for Current and Voltage Measurement PA203
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LED |
| Brand | Baumer |
| Model | PA203 |
| Depth | 95mm |
| Series | PA203 |
| Maximum Operating Temperature | 60°C |
| Meter Type | Electrical |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 10mm |
| Standards/Approvals | UL 94 V-0 |
| Properties Measured | Current, Voltage |
| Cutout Height | 22mm |
| Cutout Width | 45mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Minimum Measurement | -1999 DC, 0 AC |
| Maximum Measurement | 9999 |
Key Features
- LED display offers clear readability with 4 digits and 10mm digit height.
- Measuring range supports current and voltage inputs with minimum thresholds of -1999 DC, 0 AC and maximum up to 9999.
- Compact dimensions with cutout height of 22mm and cutout width of 45mm suitable for panel integration.
- Robust operating temperature range from -10°C to 60°C for versatile industrial environments.
- Power consumption is low at 1.8W, enhancing efficiency in continuous operation.
- Constructed with a DIN housing size of 48mm by 24mm for standardized panel mounting.
- Compliant with UL 94 V-0 flammability standards and other certifications including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
- Programmable process indicator with linearized display range capability for flexible use cases.
Product Description
Baumer PA203 Digital Panel Multifunction Meter is a reliable and programmable process indicator designed for precise measurement of electrical parameters including current and voltage. Featuring a sharp LED display with 4 digits, this meter is ideal for integration into various industrial and process control environments.
The device operates efficiently with a power consumption of just 1.8W and supports AC/DC input voltages up to 600V and currents up to 5A, accommodating a wide range of measurement needs. The compact cutout dimensions of 22mm height and 45mm width enable easy installation in standard control panels.
Designed to withstand industrial conditions, the PA203 meter functions reliably within a temperature range of -10°C to 60°C and meets key flammability and electrostatic discharge standards such as UL 94 V-0, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007.
This multifunction meter not only provides accurate readings but also features a linearized display range for enhanced data interpretation. Its standardized DIN housing measures 48mm by 24mm, ensuring compatibility with common mounting requirements.
LED display with 4 digits and 10mm digit height for clear visibility. Measurement range from -1999 DC, 0 AC to 9999 for current and voltage. Compact cutout size of 22mm x 45mm fits standard panels. Operating temperature range from -10°C to 60°C for durable operation.
Low power consumption of 1.8W for energy efficiency. Complies with UL 94 V-0, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards. DIN housing size 48mm x 24mm for standardized installation. Programmable indicator allows linearized display range adjustment.
This Baumer multifunction meter is essential for industrial automation, electrical monitoring, and process control applications where precise current and voltage measurement is required. Browse the category for similar high-quality panel meters and related automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PA203 multifunction meter supports a measurement range from -1999 DC and 0 AC up to 9999 for both current and voltage inputs.
This model requires a cutout height of 22mm and a width of 45mm for standard panel integration.
The power consumption of the PA203 is low at 1.8W, making it efficient for continuous operation.
It operates reliably within a temperature range of -10°C to 60°C, suitable for various industrial environments.
The PA203 features a sharp LED display with 4 digits and a digit height of 10mm for clear visibility.
This model complies with UL 94 V-0 flammability standards, as well as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 certifications.
The overall dimensions of the PA203 are 48mm in width, 24mm in height, and 95mm in depth, designed for standardized DIN housing.
This multifunction meter can measure both current and voltage, making it versatile for various applications.
Yes, the PA203 supports both AC and DC measurements, accommodating a wide range of electrical parameters.
The maximum operating voltage for this model is up to 600V and it can measure currents up to 5A.
Yes, the PA203 features a programmable process indicator with a linearized display range capability for flexible use cases.
The PA203 is manufactured in India, ensuring compliance with various international standards.
