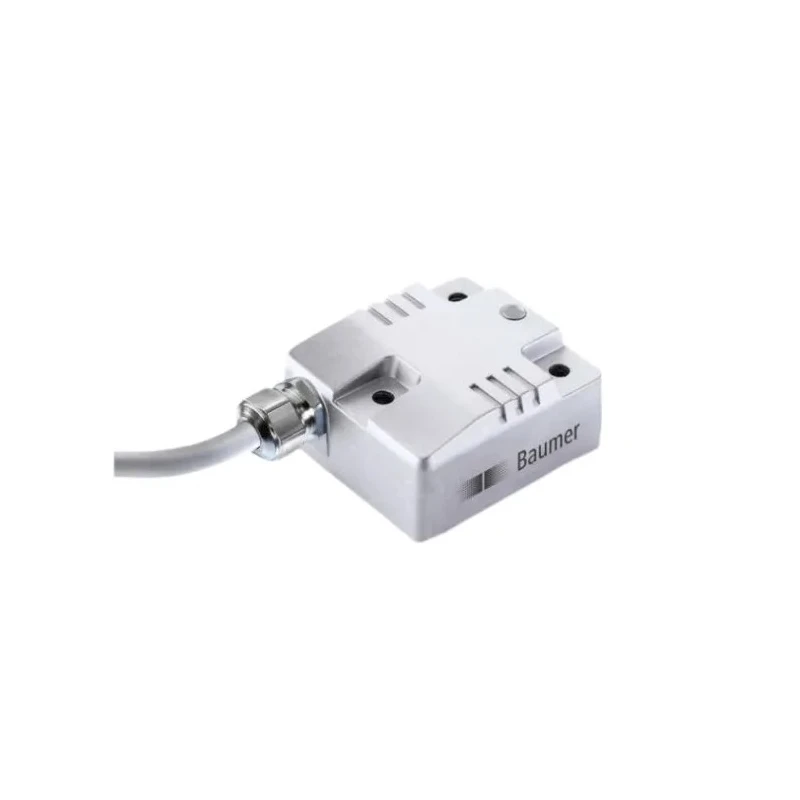

Baumer 1-Axis Inclination Sensor Analogue Output 8 V-36 V SAE J1939 CAN Interface 8-Pin GIM500R-M118.FC4.A

Free Delivery in India | Lowest Global Shipping Charges

Baumer 1-Axis Inclination Sensor Analogue Output 8 V-36 V SAE J1939 CAN Interface 8-Pin GIM500R-M118.FC4.A

Name: Baumer 1-Axis Inclination Sensor Analogue Output 8 V-36 V SAE J1939 CAN Interface 8-Pin GIM500R-M118.FC4.A
Brand: Baumer
SKU: 283144
Price: 628.26 USD
Availability: InStock



Category Sensor Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Response time	0.5s
Height	24mm
Length	52mm
Model	GIM500R-M118.FC4.A
SENSITIVITY	0.3%
Technology	Analogue
Sensor Type	IEEE 802.3
Width	48mm
Series	GIM500R
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	SAE J1939, Analogue, CAN
Pin Count	8
Maximum Supply Voltage	36V
Minimum Supply Voltage	8V
Supply Current	40mA
Baumer 1 Axis Sensor 8 V 30V, Analogue, 5-PinBrand	Baumer

Key Features

The sensor uses MEMS capacitive measuring technology offering a 0 to 360° measuring range.
Metal housing ensures robustness and polarity reversal protection.
Supplied with a 1 m long M12 connector cable for easy installation.
Operates reliably in harsh environments with -40°C to +85°C temperature range and IP69K protection.
Complies with multiple industrial standards including EN 60068 and ISO 11452.
Low supply current of 40mA minimizes power consumption.
Pin count of 8 facilitates comprehensive signal and interface options.
Response time of 0.5 seconds supports dynamic measurement applications.

Product Description

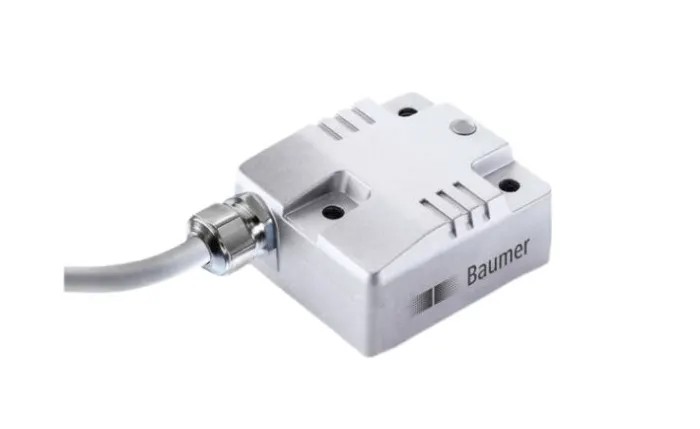

Baumer GIM500R-M118.FC4.A is a high-precision 1-axis inclination sensor designed for industrial and automotive applications requiring robust motion detection. Featuring analogue output and communication via SAE J1939 CAN protocol, it operates within an 8 V to 36 V supply range.

The sensor utilises MEMS capacitive measuring technology housed in a durable metal enclosure, offering a full 360° measurement range. The device is equipped with an 8-pin M12 connector and includes a 1-meter cable, ensuring straightforward integration into existing systems.

Operating temperatures range from -40°C to +85°C, and the sensor is protected to IP69K, making it suitable for exposure to harsh environmental conditions such as dust, moisture, and extreme temperatures.

Baumer's sensor complies with stringent international standards including EN 60068-2-6, EN 60068-2-27, EN 60529, ISO 11452-2, ISO 11452-5, EN 61000-6-4, ISO 7637-2, and ECE Regulation No. 10R04, ensuring reliability and electromagnetic compatibility for industrial and automotive use cases.

The low supply current of 40mA and a response time of 0.5 seconds make it energy efficient and suitable for real-time monitoring. The sensor uses MEMS capacitive technology for accurate and reliable inclination measurements.

Robust metal housing with polarity reversal protection improves durability in demanding conditions. 1 m integrated cable with M12 8-pin connector facilitates ease of installation. Wide operating temperature range and IP69K ingress protection enable use in extreme environments.

Compliance with multiple international standards ensures operational safety and reliability. Low power consumption contributes to energy efficiency. Fast response time supports dynamic and precise applications.

This inclination sensor is ideal for automotive systems, industrial automation, robotics, and other applications requiring precise angle measurements. Baumer’s dedication to quality and precision makes GIM500R-M118.FC4.A a dependable choice for engineers and system designers.
