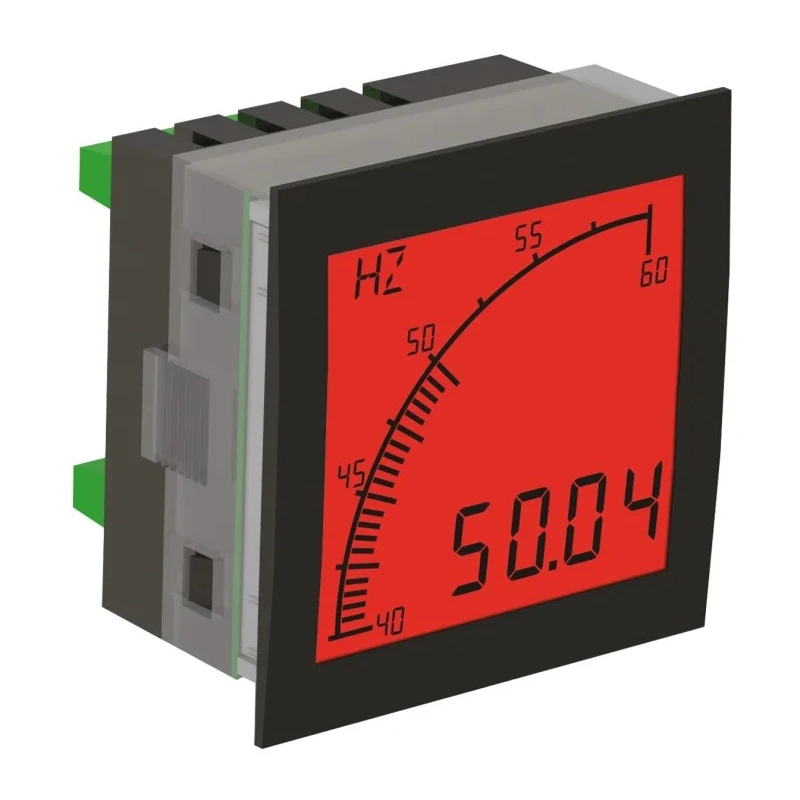

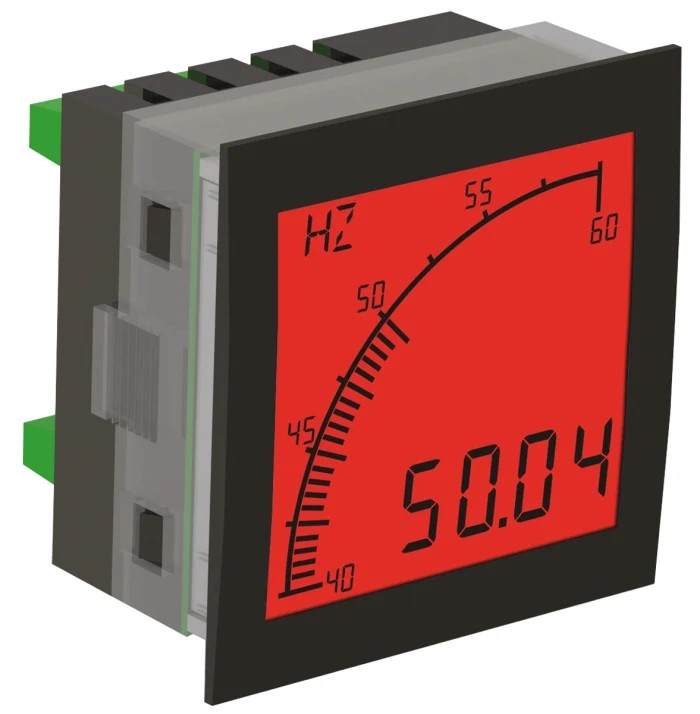

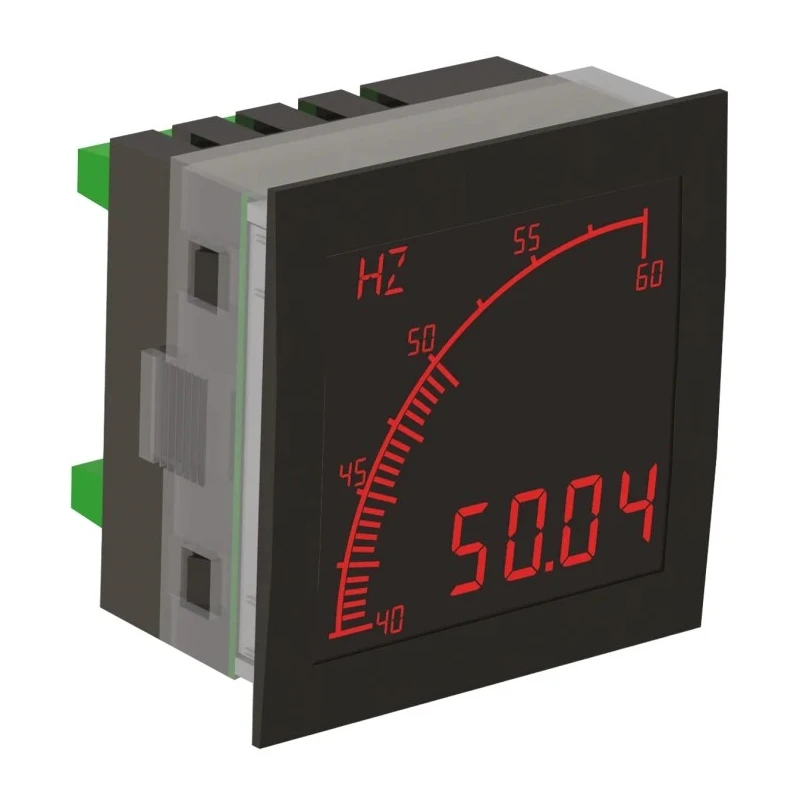

Trumeter Digital Panel Multifunction Frequency Meter, LCD Display, 68 mm x 68 mm, Model APM-FREQ-APN
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Brand | Trumeter |
| Model | APM-FREQ-APN |
| Depth | 53mm |
| Series | APM |
| Maximum Operating Temperature | 60°C |
| Meter Type | Frequency |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 12mm |
| Interfaces | USB port to connect to PC for custom user settings |
| Standards/Approvals | cULus, UL, CE |
| Properties Measured | Frequency |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
Key Features
- The meter features a large 4-digit LCD display for clear visibility.
- It can measure AC frequencies up to 400 Hz and accurately measure DC pulses after configuration.
- Includes a 40 segment bar graph display and separate starburst display for annunciators and alarms.
- User-adjustable backlight brightness, colour, and intensity enhances readability in various conditions.
- Equipped with 2 independent alarm set-points and analogue monitor output of 4-20 mA.
- USB port enables connection to PC for programmable custom user settings.
- IP65 protection ensures robustness in industrial environments.
- Wide operating temperature range from -10°C to 60°C for varied application conditions.
Product Description
Trumeter APM-FREQ-APN Digital Panel Multifunction Frequency Meter is an advanced frequency measuring instrument featuring a large 4-digit LCD display with 40 segment bar graph and additional starburst display area for annunciators and alarms. The meter supports AC frequencies up to 400 Hz and can also accurately measure DC pulses after simple configuration via free downloadable software. The 68 mm by 68 mm cutout size and 53 mm depth allow easy mounting in control panels.
This programmable panel meter is highly customizable with 15 built-in configurations and user-adjustable backlight brightness, colour, and intensity, providing excellent visibility in diverse environments. The meter includes two independent alarm set-points and outputs a 4-20 mA analog monitor signal for integration with external systems. An included USB port allows connection to a PC for fine-tuning and custom user settings.
Designed for robust industrial use, the APM-FREQ-APN operates reliably in temperatures from -10°C to 60°C and features IP65 protection against dust and water ingress. Certified to cULus, UL, and CE standards, this Malaysian-origin meter suits a wide range of frequency measurement applications in mains, industrial equipment, and aviation settings.
Its versatile and user-friendly design ensures it meets the demanding needs of process control and automation environments. The meter’s large LCD display and bar graph facilitate quick, at-a-glance readings. Programmable functions and USB connectivity provide flexibility for specialized applications.
High accuracy of 0.1% supports precise frequency measurement requirements. Durability assured by IP65 protection and wide operating temperature range. Ideal for industrial, commercial, and aviation frequency monitoring tasks.
Explore the Trumeter range and related Digital Panel Multifunction Meters on EnvMart for reliable measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC frequencies up to 400 Hz and can also measure DC pulses after configuration.
The cutout dimensions required for installation are 68 mm x 68 mm.
It operates reliably within a temperature range of -10°C to 60°C.
It features a large 4-digit LCD display with a 40 segment bar graph and a separate starburst display for alarms and annunciators.
It includes a USB port that allows connection to a PC for programmable custom user settings.
It is equipped with two independent alarm set-points for monitoring.
It is certified to cULus, UL, and CE standards.
The depth of this model is 53 mm, allowing for easy mounting in control panels.
The digit height on the display is 12 mm, which aids visibility.
It has an IP65 rating, providing protection against dust and water ingress.
It is suitable for a wide range of applications including mains, industrial equipment, and aviation settings.
It supports a high accuracy of 0.1% for precise frequency measurement requirements.
