Trumeter APM LCD Digital Panel Multifunction Meter Frequency Current Voltage 68mm x 68mm APM-M1-ANO
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Brand | Trumeter |
| Model | APM-M1-ANO |
| Depth | 53mm |
| Series | APM |
| Maximum Operating Temperature | 60°C |
| Meter Type | Electronic |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | CE, UL, RoHS |
| Properties Measured | Frequency, Current, Voltage |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
Key Features
- Measures frequency, current, and voltage with high accuracy.
- Features a large 4-digit LCD display with a 40-segment bar graph.
- Dynamic colour-changing backlight for instant condition feedback.
- Fully configurable via free APM software for scaling, alarms, and messaging.
- Two independent outputs configurable as digital or analogue (4-20 mA).
- Operates on 12-24 V AC/DC power supply.
- Robust design with IP65 protection and wide operating temperature range.
- Remote monitoring enabled through Trumeter Cloud with IoT Gateway.
Product Description

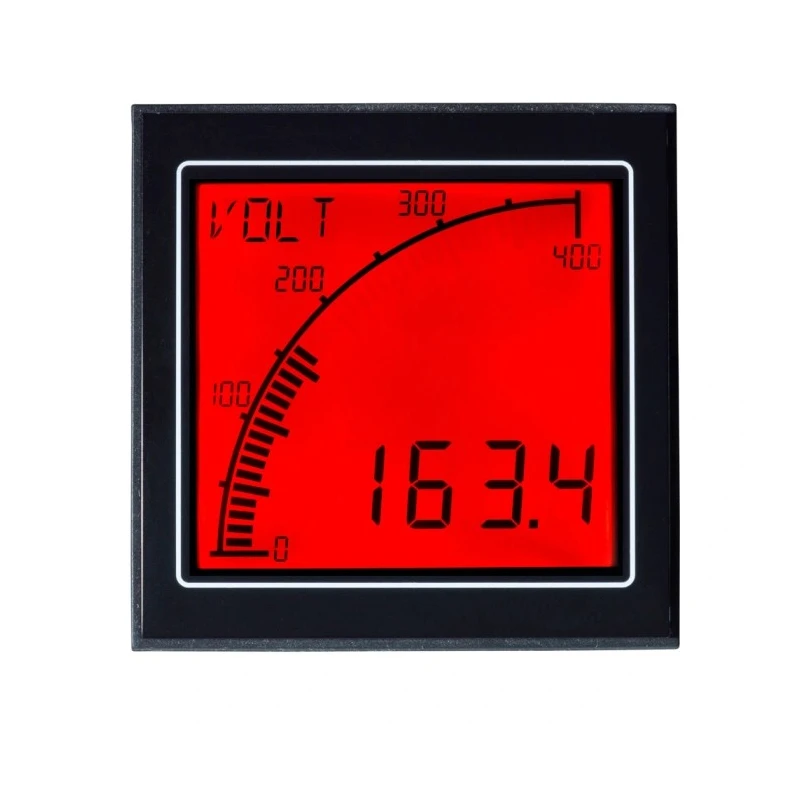

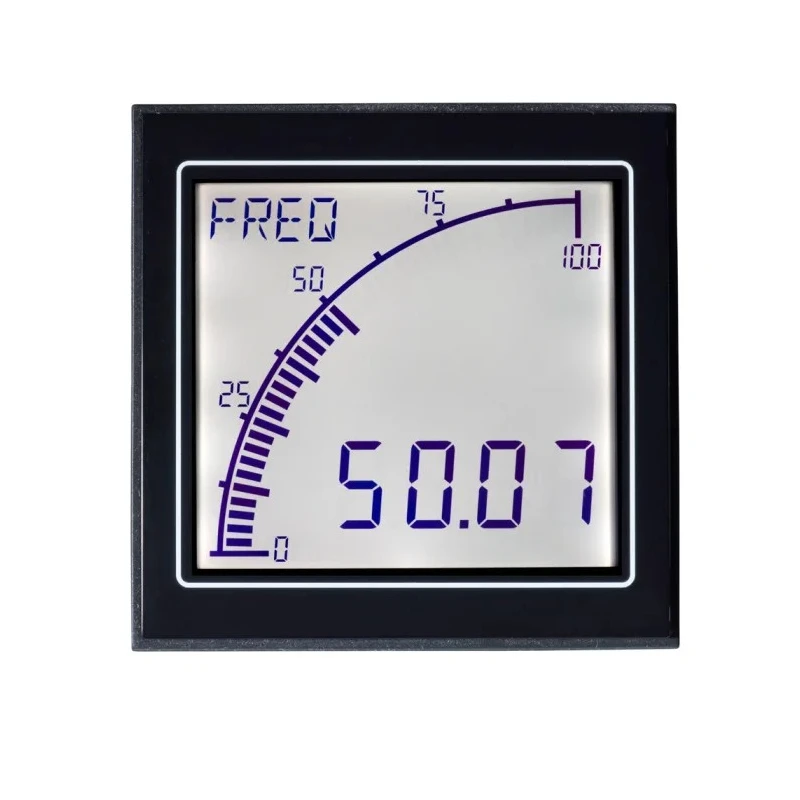

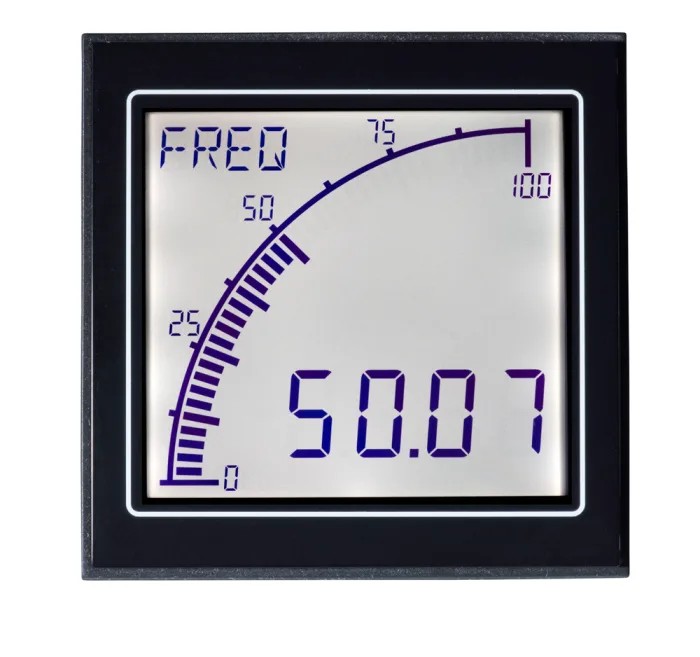

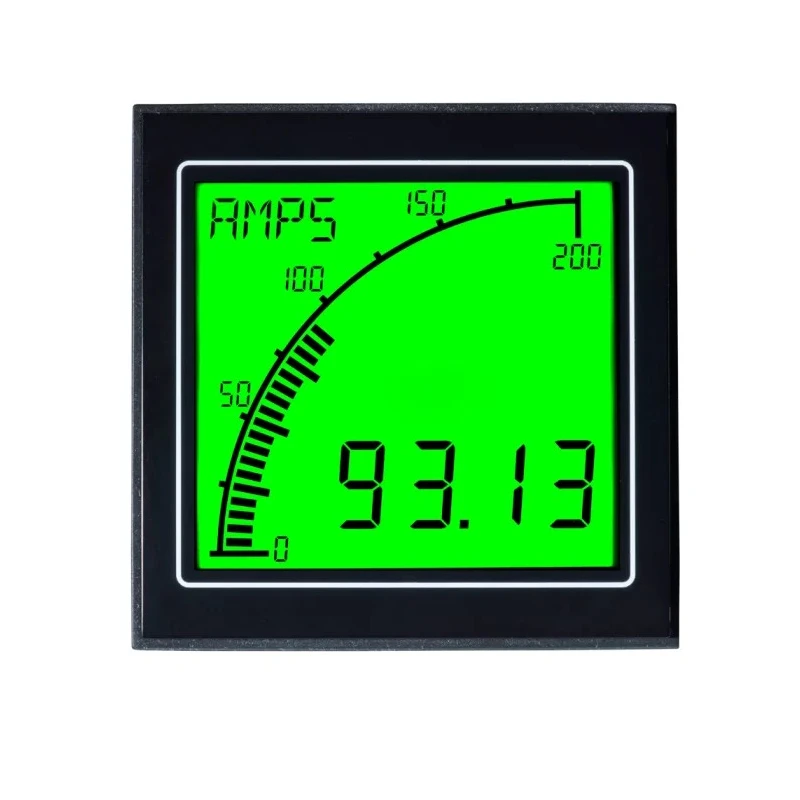

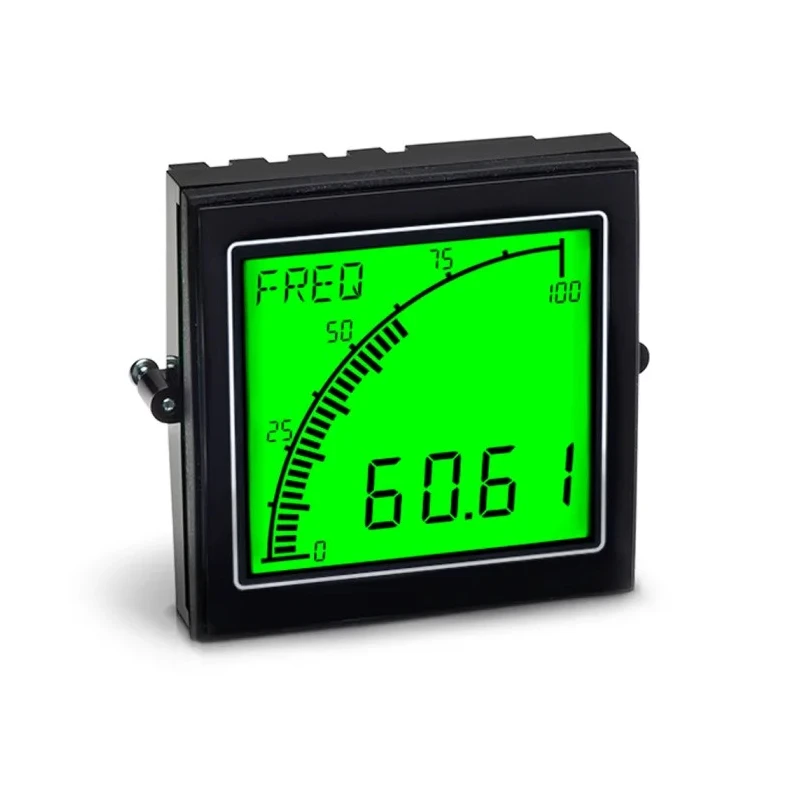

Trumeter APM-M1-ANO is an advanced LCD Digital Panel Multifunction Meter designed for precise measurement of frequency, current, and voltage. It features a compact 68 mm x 68 mm cutout size and an easy-to-read large 4-digit LCD display enhanced with a 40-segment bar graph and dynamic colour-changing backlight that provides immediate feedback on operating conditions.
This multifunction meter operates on a 12-24 V AC/DC power supply and is fully user-configurable through the free Trumeter APM configuration software. Users can adjust scaling, ranges including nonlinear scaling, alarm set points, messaging, and colour schemes according to their requirements, enabling versatility across various industrial applications.
The APM-M1-ANO is equipped with two independent outputs that can be configured as digital open collector outputs or analogue 4-20 mA signals, offering excellent integration capabilities with control systems. Its rugged build includes an IP65 protection rating, allowing use in harsh industrial, manufacturing, electrical, and automation environments, withstanding temperatures from -10°C to 60°C.

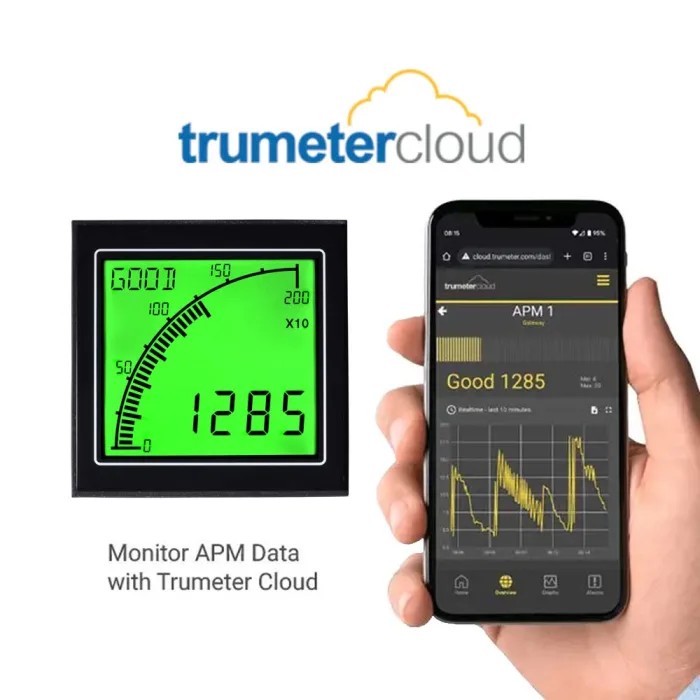

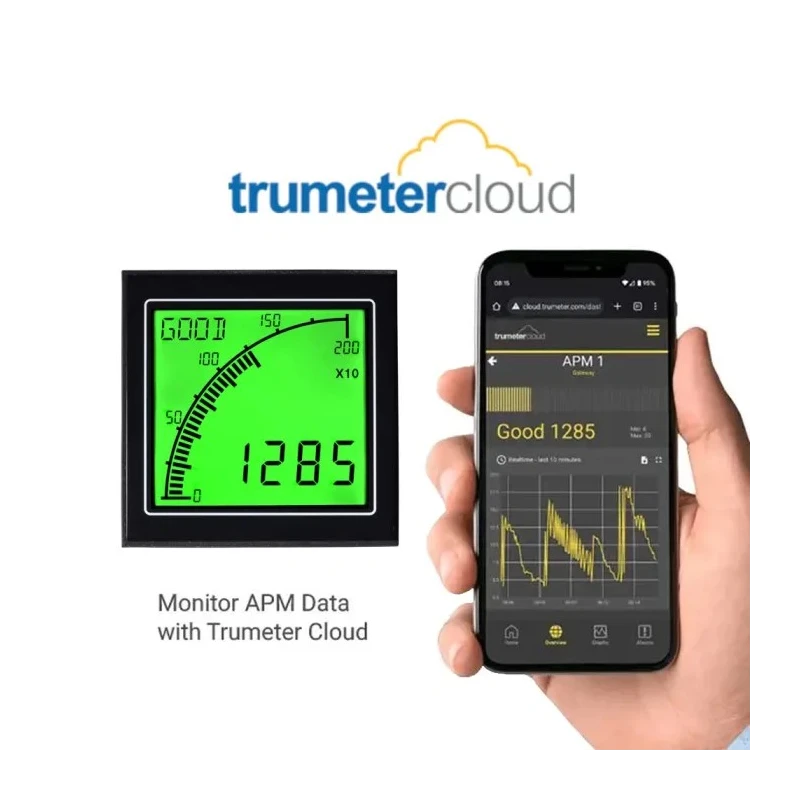

Remote monitoring is facilitated when paired with the Trumeter APM IoT Gateway, enabling data access anytime via the Trumeter Cloud platform, with features such as data logging, and SMS or email alert notifications, perfect for process control and monitoring applications.
Its positive display, designed for bright ambient light environments, shows black figures on a colour-changing background, enhancing legibility and alarm identification. The starburst display area highlights messages and alarms for straightforward operation.
The meter complies with CE, UL, and RoHS standards, ensuring safety and environmental adherence. Measures frequency, current, and voltage with high accuracy. Large 4-digit LCD with 40-segment bar graph and dynamic backlight.
User-configurable scaling, alarms, and messaging via free software. Two configurable outputs: digital open collector or analogue 4-20 mA. IP65 protection suitable for harsh industrial environments. Operates on 12-24 V AC/DC power supply.
Remote monitoring through Trumeter Cloud with IoT Gateway. Positive display optimized for bright environments. Wide operating temperature range from -10°C to 60°C. Compliant with CE, UL, and RoHS standards.
Trumeter multifunction meters are ideal for industrial automation, process control, electrical panels, manufacturing, and laboratory instrumentation. Discover more instruments and meters in the Digital Panel Multifunction Meter category on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures frequency, current, and voltage with high accuracy.
The cutout size for this model is 68 mm x 68 mm.
It operates within a temperature range of -10°C to 60°C.
It features a large 4-digit LCD display with a 40-segment bar graph.
This model operates on a 12-24 V AC/DC power supply.
It has two independent outputs that can be configured as digital open collector outputs or analogue 4-20 mA signals.
Yes, it has an IP65 protection rating, making it suitable for harsh industrial environments.
Yes, it is fully configurable via the free Trumeter APM software for scaling, alarms, and messaging.
It complies with CE, UL, and RoHS standards.
The depth of this model is 53 mm.
Remote monitoring is enabled through the Trumeter Cloud when paired with the IoT Gateway, allowing data access and alerts.
It belongs to the APM series of multifunction meters.
