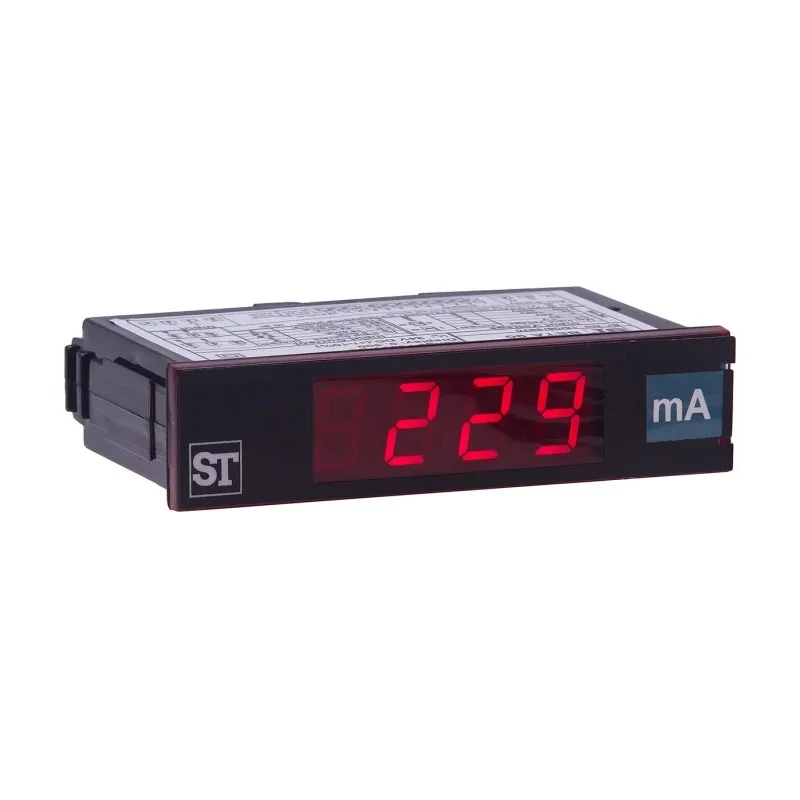

Sifam Tinsley Digital Panel Multifunction Meter Current Measurement 7 Segment Display BT90-C030490000000

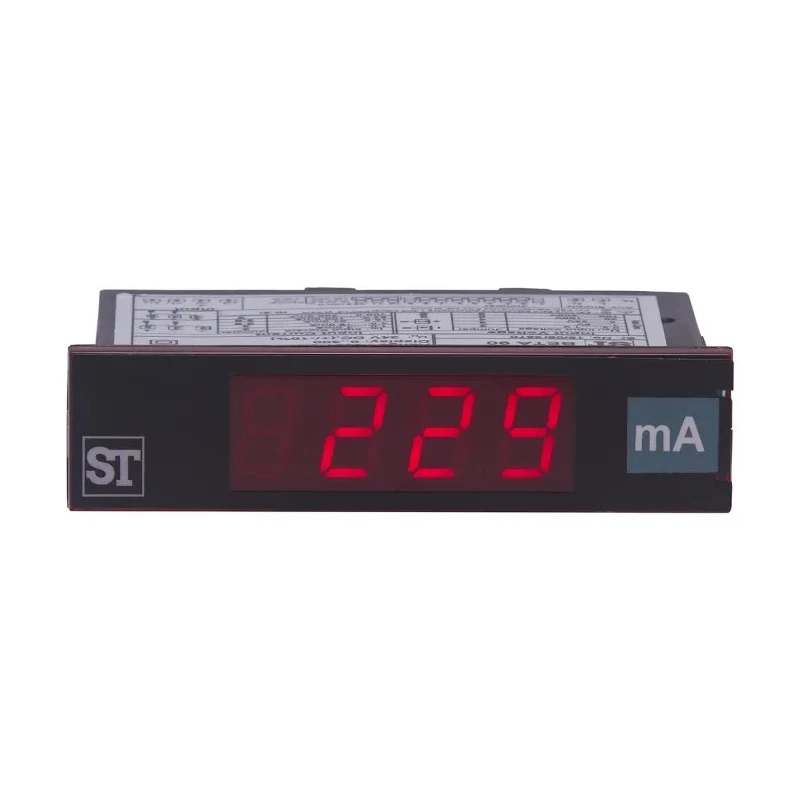

Sifam Tinsley BT90-C030490000000 Digital Panel Multifunction Meter is engineered for accurate DC current measurement in industrial and process control applications. Its 7 segment digital display with 4 digits and digit height of 14 mm ensures clear visibility for operators.

The meter features cutout dimensions of 22.2 mm height by 92 mm width and a compact depth of 66.5 mm, allowing for efficient panel mounting in tight spaces. It works effectively within a temperature range of 0°C to 50°C, suitable for demanding industrial environments.

Factory preset with multiple measuring ranges selectable via jumpers, it provides flexibility with user-adjustable zero point and full-scale values to accommodate specific application needs. The electronic meter type is compliant with major standards including ASTA, CE, CSA, and UL, ensuring safety and quality.

The Beta 90 series panel meters by Sifam Tinsley are designed to support on-site range adjustments, making them suitable for maintenance and calibration in various industrial settings such as manufacturing plants, electrical installations, and laboratory process monitoring.

Powered by a 230V AC power supply option, this multifunction meter integrates seamlessly into existing control systems and instrumentation panels. The meter is designed for current measurement applications in industrial settings.

Features a 7 segment digital display with 4 digits and 14 mm digit height for readability. Cutout dimensions of 22.2 mm height and 92 mm width fit standard panel mount slots. Depth of 66.5 mm and overall depth of approximately 72 mm ensures compact installation.

Operates within 0 to 50°C temperature range, making it suitable for various industrial environments. Factory pre-set measuring ranges with user adjustment for zero and full-scale calibration. Electronic meter type with adherence to ASTA, CE, CSA, and UL standards for reliability and safety.

Powered by optional 230V AC supply for flexible installation.

This Sifam Tinsley Beta 90 Digital Panel Multifunction Meter is ideal for industrial automation, electrical control panels, process monitoring, and laboratory instrumentation applications.
