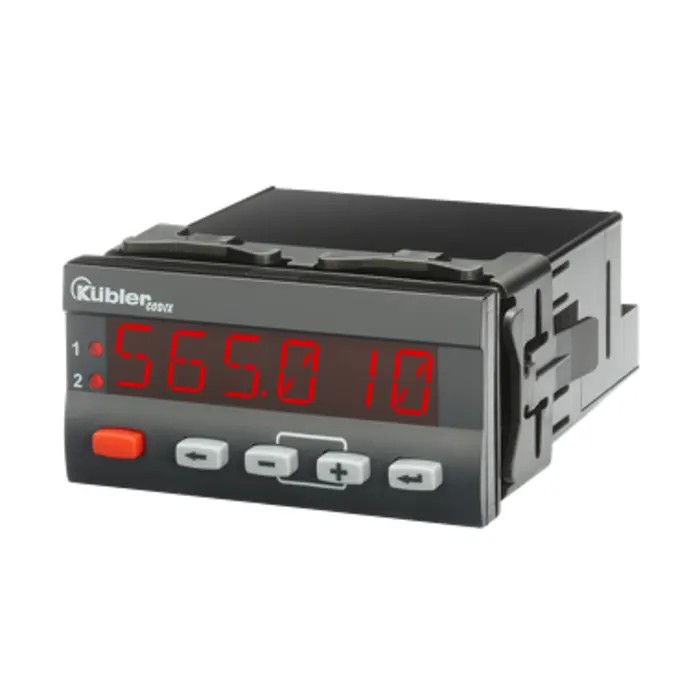

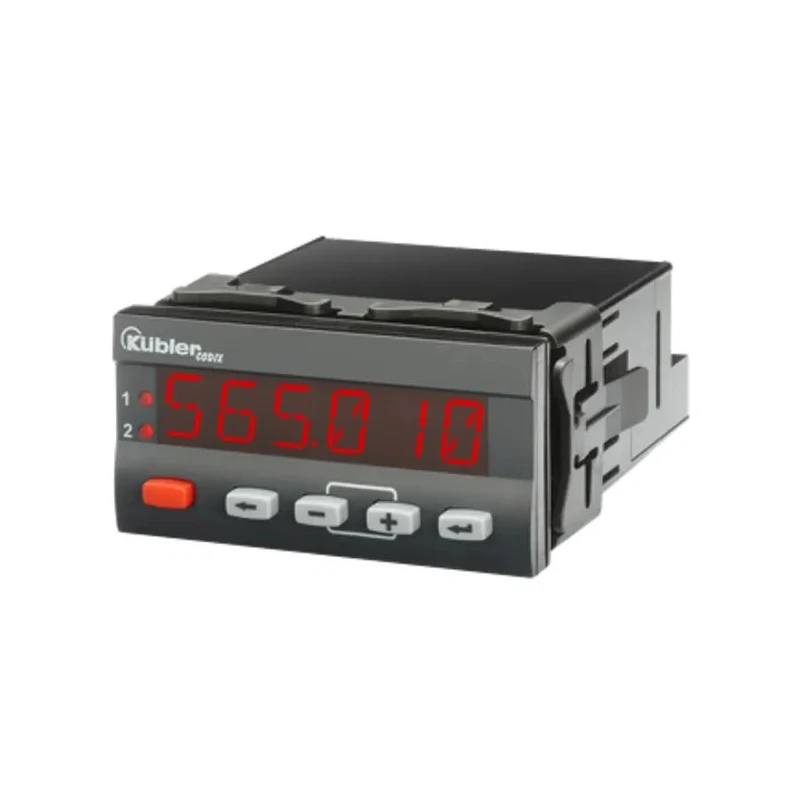

Kubler Digital Panel Multifunction Meter for Voltage, Current, LED Display, 45 mm x 92 mm 6.565.010.300

Kubler 6.565.010.300 Digital Panel Multifunction Meter offers precise measurement of voltage and current with an intuitive LED display sized at 45 mm by 92 mm and a cut-out depth of 90.5 mm. Designed to fit industrial panels seamlessly, it provides high-resolution readings through its 6-digit, 14-segment LED interface. The device simplifies complex process measurements in manufacturing, automation, and electrical monitoring systems.

Easy programming is enabled via 4 keys on the front panel, allowing quick adjustment of parameters without requiring extensive manuals. The multiplier function supports 12 control points for custom characteristic curves across all measurement inputs, enhancing versatility.

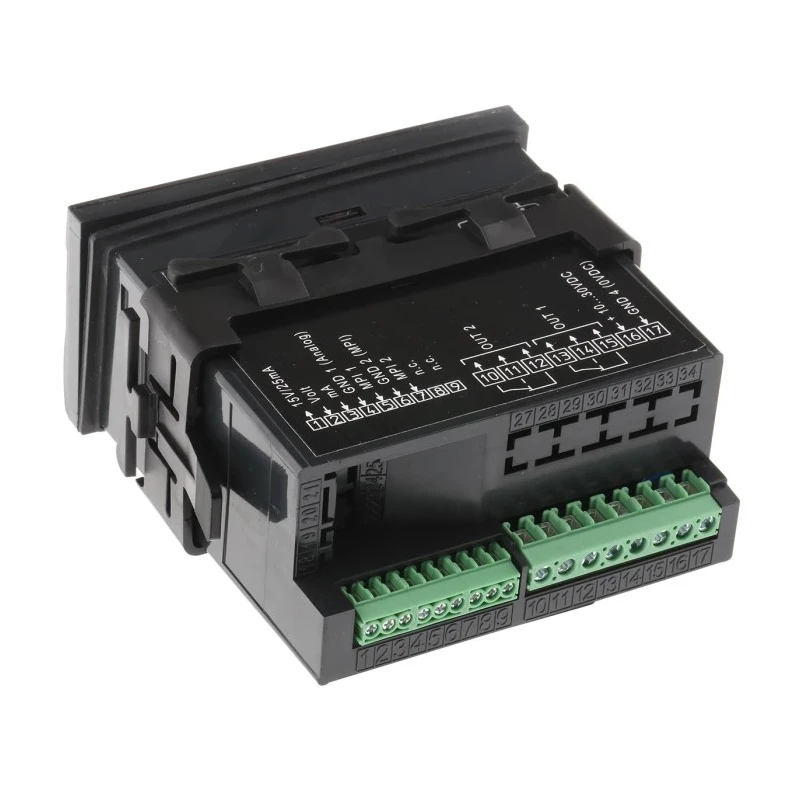

The meter supports a sampling rate of 10 readings per second and operates reliably within a wide power supply range of 10VDC to 30VDC. Galvanically isolated inputs and outputs protect the system from electrical disturbances and ensure signal integrity during measurement.

Additional features include 2 relay outputs (changeover contacts) for monitoring two user-defined limit values with hysteresis and ON/OFF delay, a minimum/maximum memory function with reset option, and a tare function. The device incorporates a digital filter to reduce display fluctuations caused by unstable input signals, ensuring stable readouts.

The temperature operating range from -20°C to 65°C makes it well suited for demanding industrial environments. The compact form factor (45x92 mm cutout) optimizes panel space usage. It complies with RoHS, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 standards, and is manufactured in Germany, assuring quality and reliability.

6-digit 14-segment LED display with easy-to-read digits of 14 mm height. Sampling rate of 10 readings per second for accurate signal capture. Power supply voltage rating from 10VDC to 30VDC for flexible installations. Galvanic isolation ensures protection of input/output circuits.

2 relay outputs for precise limit value monitoring. Supports customer-specific linearization via 12 control points. Minimum/maximum memory with individual reset options. Digital filter smooths unstable input signals. Wide operating temperature range from -20°C to 65°C.

Compact size with 45 mm height, 92 mm width, and 90.5 mm depth cutout.

This multifunction meter is ideal for use in industrial automation, process control, laboratory instrumentation, electrical panel monitoring, HVAC systems, manufacturing plants, and other commercial applications requiring accurate voltage and current measurements with real-time display and responsive limit control.
