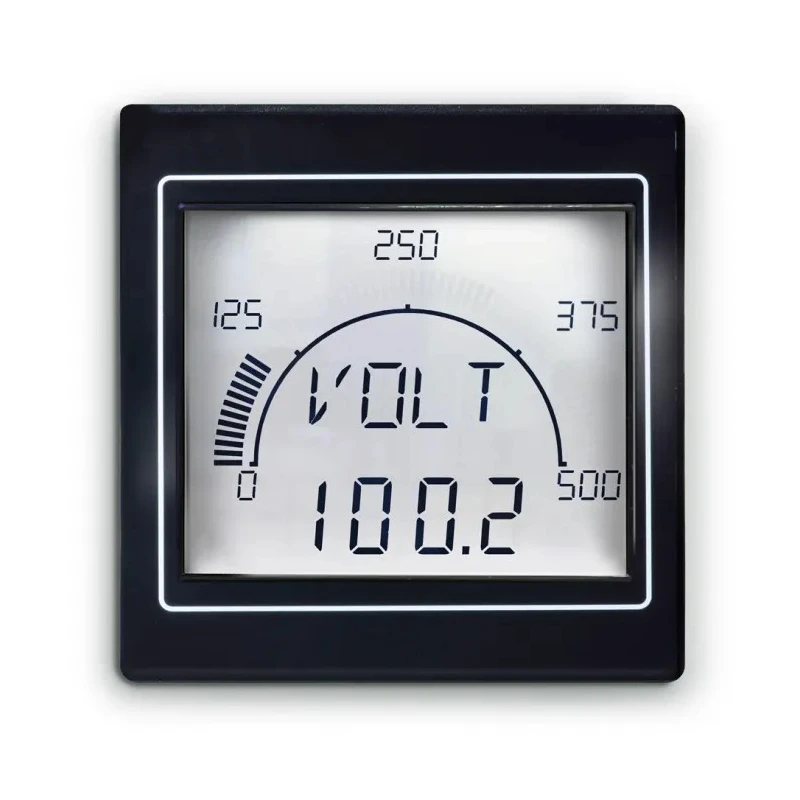

Trumeter APM-MAX LCD Digital Panel Multifunction Meter for Current Frequency Power Voltage 68 mm x 68 mm APM-MAX-M21-PU-4B
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Display | screen |
| Brand | Trumeter |
| Model | APM-MAX-M21-PU-4B |
| Depth | 45mm |
| Series | APM-MAX |
| Maximum Operating Temperature | 60°C |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.5mm |
| Standards/Approvals | UL and cUL, CE |
| Properties Measured | Current, Frequency, Power, Voltage |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| 2 independent outputs | 2 digital (open collector), 1 analogue (4 - 20mA) |
Key Features
- Large 81.5mm x 66mm LCD screen with 25% larger display than standard models.
- Full colour RGB dynamic backlight for instant visual alerts and messages.
- Programmable scaling, range, two independent alarm setpoints, and output options including digital and analogue.
- Robust IP65 rating ensuring protection against dust and water ingress.
- Supports serial MODBUS TCP/IP and RTU communication protocols for integration with automation systems.
- Designed for 0-600V DC/AC applications with 0.5% voltage and 0.1% frequency accuracy.
- Compact panel mount with 68 mm x 68 mm cutout and 45 mm depth for versatile installation.
- Operating temperature range from -10°C to 60°C suitable for varied environments.
Product Description
Trumeter APM-MAX-M21-PU-4B is a sophisticated LCD Digital Panel Multifunction Meter designed for industrial process control and electrical automation. It accurately measures current, frequency, power, and voltage within the range of 0-600V DC/AC applications, making it versatile for a wide range of monitoring needs.

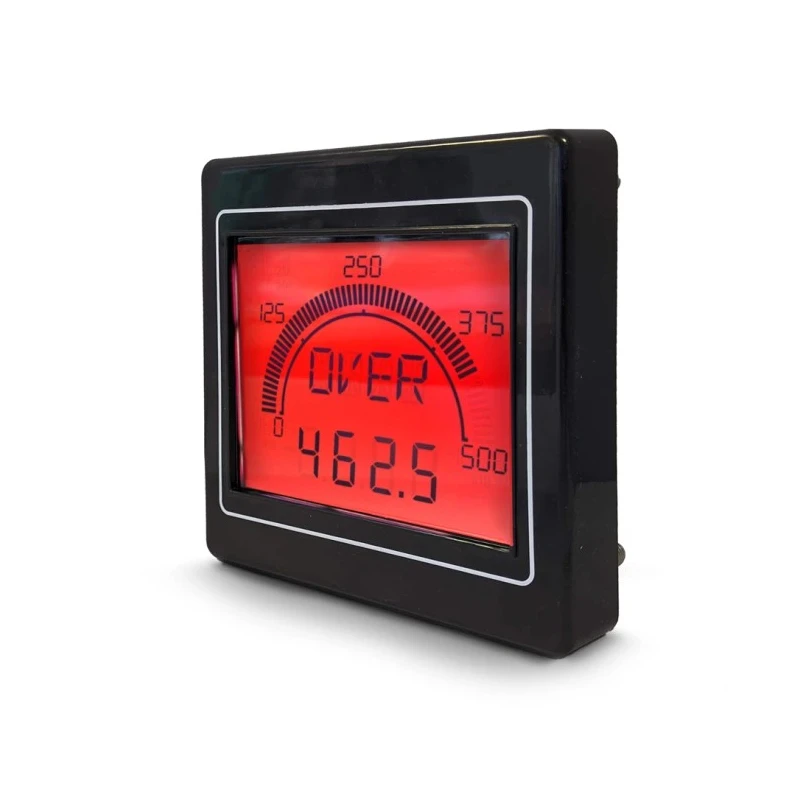

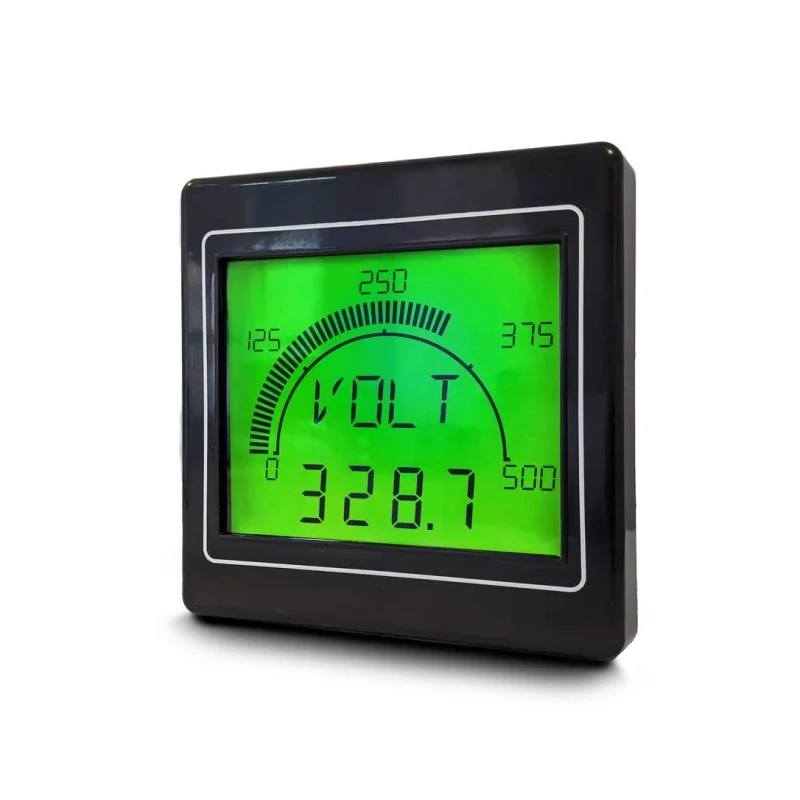

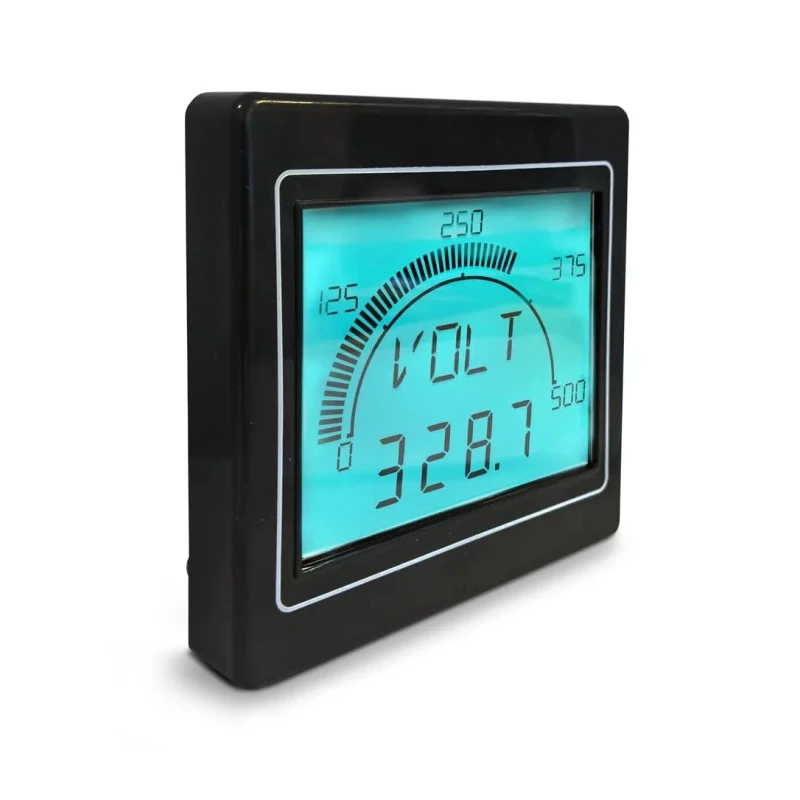

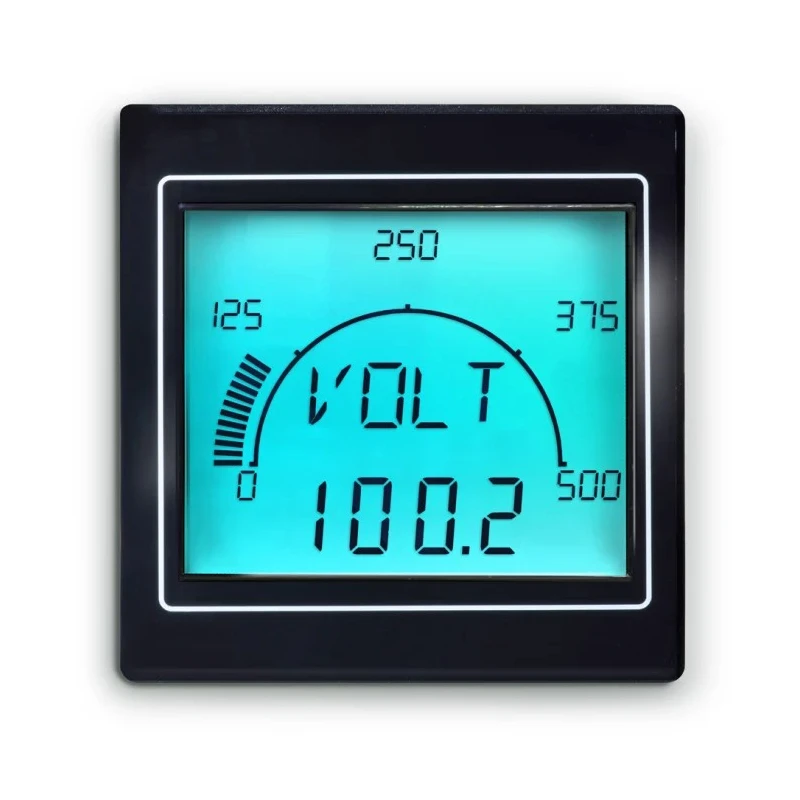

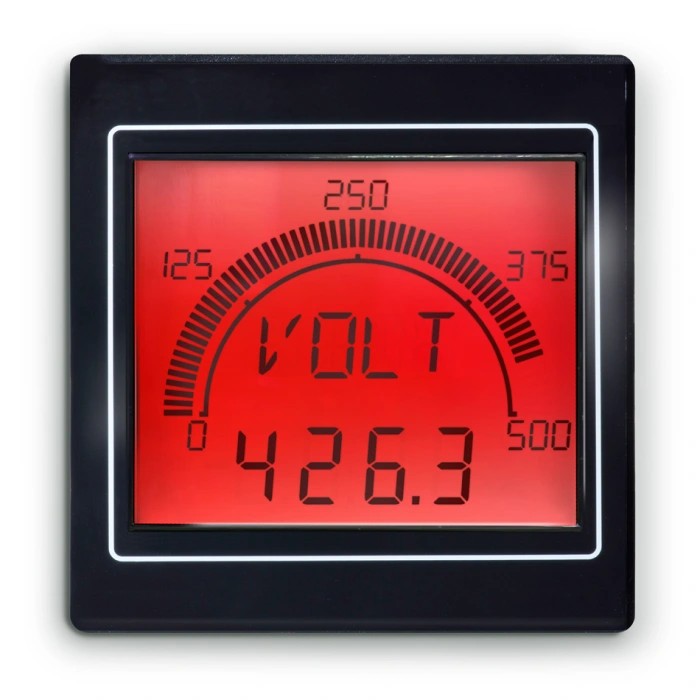

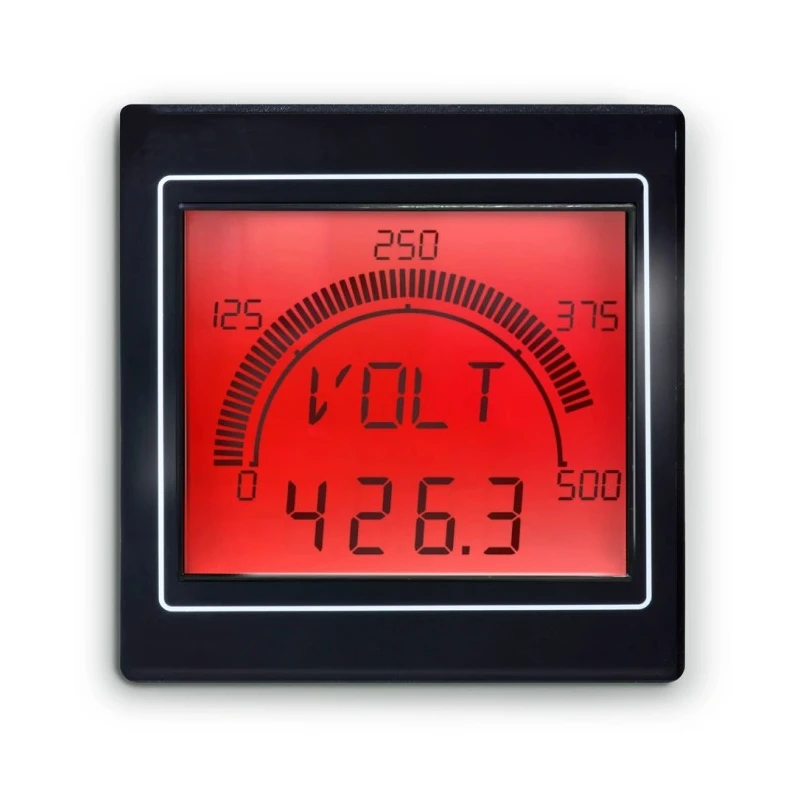

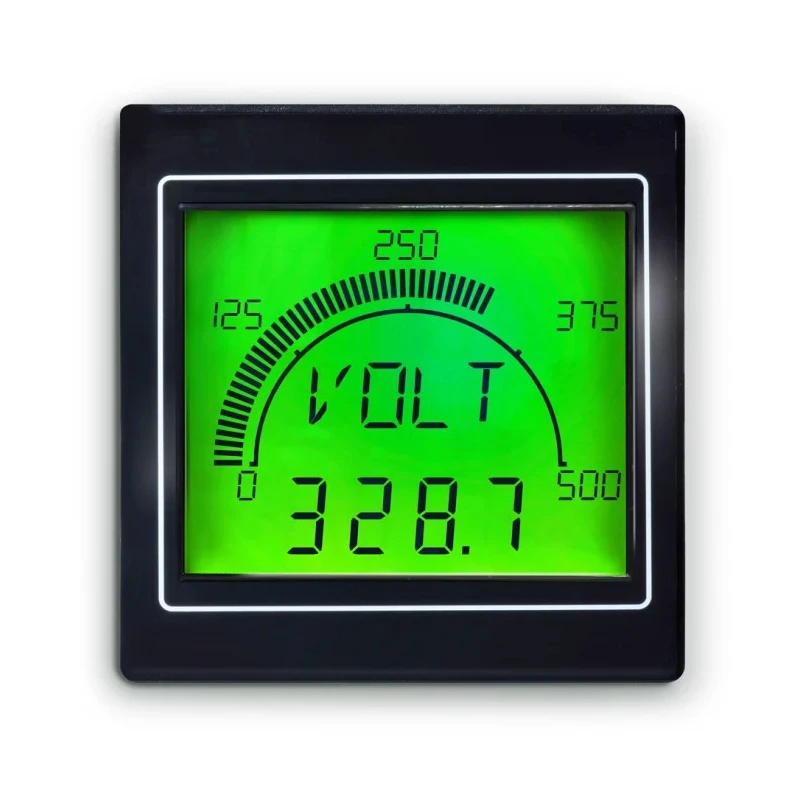

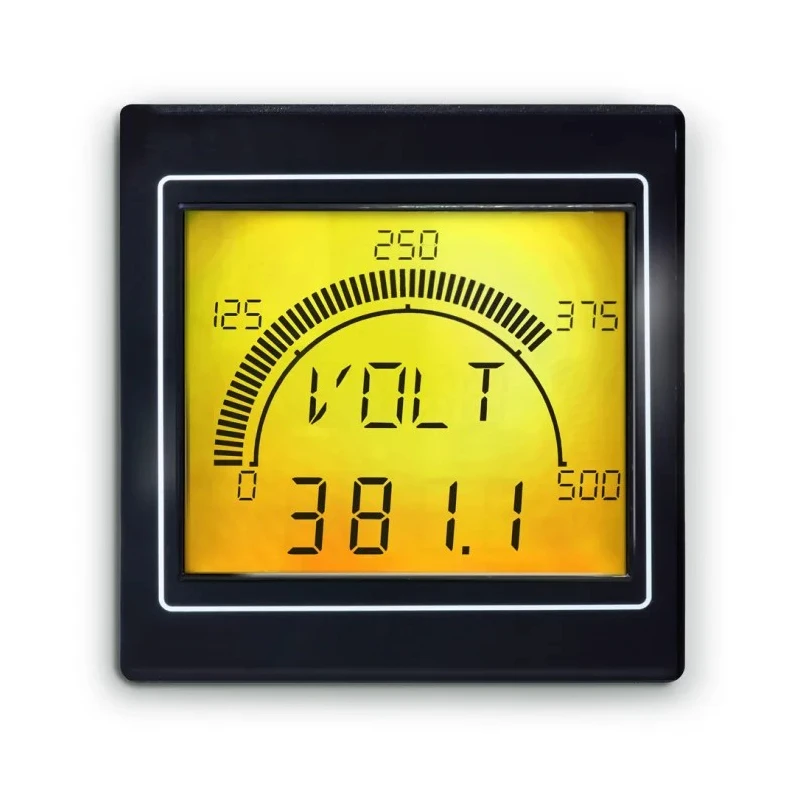

The meter features a large 81.5mm x 66mm screen - 25% larger than standard models - incorporating a 60-segment bar graph display and a separate Starburst display area for messages and alarm information. Its full colour RGB backlight provides dynamic visual alerts, enhancing readability in bright or demanding environments.
This device offers extensive programmability including scaling and range adjustments, offset and gain control, and 20-point non-linearization scaling. It includes two independent alarm set-points for effective monitoring and control, along with two digital outputs (open collector) and one analogue output (4 - 20mA) for versatile interfacing.
Connectivity is supported via serial MODBUS TCP/IP and RTU protocols, enabling seamless integration into larger industrial control systems and remote monitoring setups. The IP65 rating ensures the meter's durability against dust and water, ideal for harsh industrial conditions.
Operating within a temperature range of -10°C to 60°C and compliant with UL, cUL, and CE standards, this panel meter guarantees reliability and safety. Its compact dimensions (68mm x 68mm cutout, 45mm depth) allow for easy installation in standard 2.7-inch square or 4-inch diameter cutouts.
Large LCD screen with dynamic colour backlight for clear visibility. Measures current, frequency, power, voltage, and power factor accurately. Programmable scaling, offsets, and dual alarm set-points for customized operation.
Multiple output options including digital and analogue signals. MODBUS TCP/IP and RTU serial communication support. Durable IP65 rated enclosure suitable for industrial environments. Wide operating temperature range for varied conditions.
Certified UL, cUL, and CE for global compliance. Compact form factor for easy panel mounting.
This multifunction meter is ideal for use in industrial automation, process control, electrical power monitoring, and manufacturing systems. It combines precision with user-friendly configurability, making it a reliable choice for electrical engineers and system integrators.
Explore the full range of Trumeter multifunction panel meters and related industrial electrical instrumentation available on EnvMart for your control and monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures current, frequency, power, and voltage within the range of 0-600V DC/AC applications.
The voltage accuracy is 0.5% and the frequency accuracy is 0.1%.
The required cutout dimensions are 68mm x 68mm.
It features a large LCD display with a screen size of 81.5mm x 66mm and a digit height of 14.5mm.
It includes two digital outputs (open collector) and one analogue output (4 - 20mA).
It supports serial MODBUS TCP/IP and RTU communication protocols for integration with automation systems.
The operating temperature range is from -10°C to 60°C.
It has an IP65 rating, ensuring protection against dust and water ingress.
It is certified with UL, cUL, and CE standards.
The depth of the meter is 45mm.
It has a full colour RGB dynamic backlight for instant visual alerts and messages, improving visibility in various lighting conditions.
It is suitable for industrial automation, process control, electrical power monitoring, and manufacturing systems.
