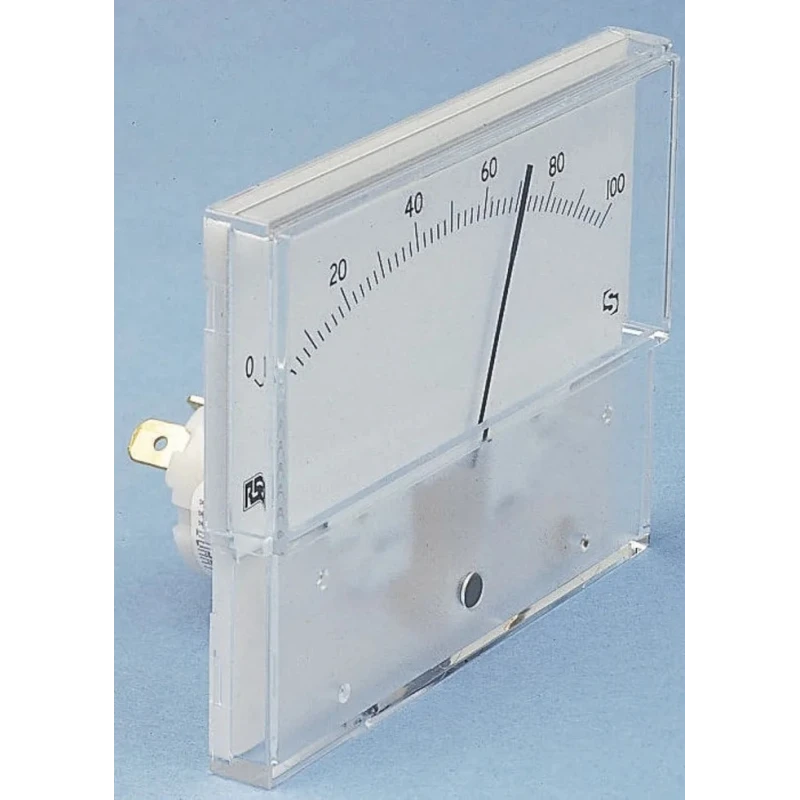

Sifam Tinsley Analogue Panel Ammeter 25 A AC/DC, 20.2 mm x 42.4 mm Cutout, ±1.5 % Moving Coil IS 10999

Sifam Tinsley IS 10999 Analogue Panel Ammeter is designed for measurement of AC and DC currents up to 25 A with high precision of ±1.5 % accuracy. The device employs a moving coil mechanism that provides stable and reliable readings suitable for industrial and laboratory applications.

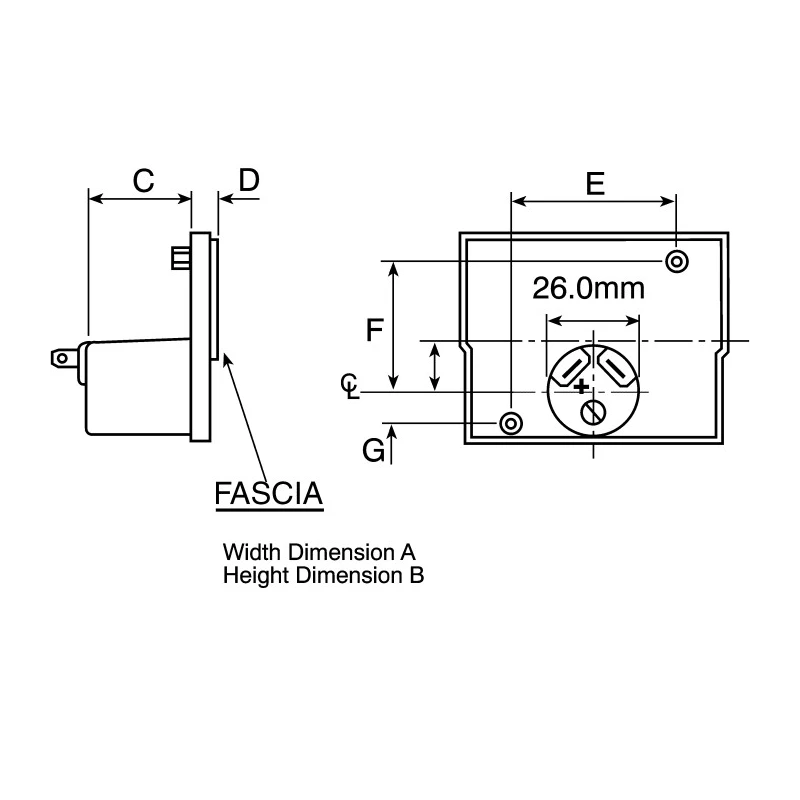

The ammeter features a compact panel mounting design with cutout dimensions of 20.2 mm height by 42.4 mm width, with a depth of 31.2 mm, allowing easy installation in control panels or distributed measurement systems. It is rated for maximum operation temperature of 55°C and can withstand minimum temperatures down to -25°C, making it appropriate for a range of environmental conditions.

This model complies with stringent standards such as BS89, EN60 051, BS3693, ANSI C39.1, and IEC 51, ensuring compliance and safety in process control, automation, and electrical measurement setups. The unit supports a maximum measurement voltage of 500 V, allowing integration into numerous electrical circuits requiring precise current monitoring.

Electrical connections are facilitated through 6 mm tag terminals, and fixing studs of size M2 x 10.0mm or M2.5 x 10.0mm are provided depending on mounting dimensions, enhancing versatility in panel installation.

Measures AC and DC currents up to 25 A with ±1.5 % moving coil accuracy. Panel cutout size 20.2 mm x 42.4 mm allows standard mounting fits. Capable of operating in temperatures from -25°C to 55°C for robust performance. Conforms to multiple national and international electrical standards for reliability.

Supports maximum voltage readings of 500 V for broad application scope. Secure electrical connections via standard 6 mm tag terminals ensuring stable contact. Manufactured in the United Kingdom, indicating high quality standards.

This ammeter is suited for industrial automation, process control, electrical panels, and measurement laboratories requiring dependable analogue current measurement solutions. Its compact size and compliance with various standards make it a preferred choice for precision instrumentation.
