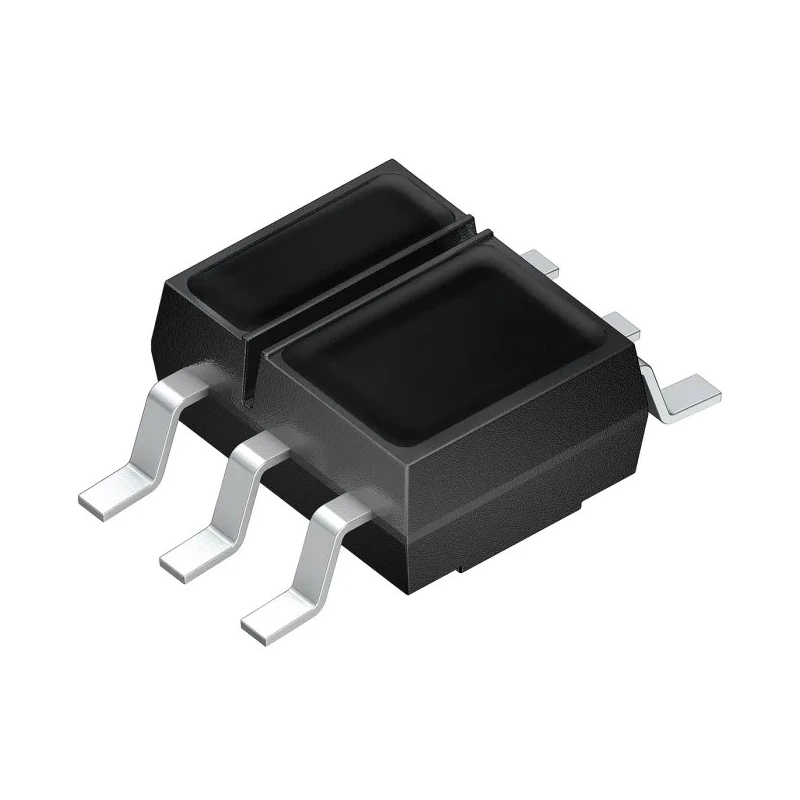

ams OSRAM SFH 9206 Surface Reflective Optical Sensor, Phototransistor Output, 5mm Peak Sensor Distance, Tape & SFH 9206-6/7
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Height | 2.1mm |
| Length | 4.2mm |
| Model | SFH 9206-6/7 |
| Packaging | Tape & Reel |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | SFH 9206 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Output Device | Phototransistor |
| Standards/Approvals | MSL Level 4 |
| Number of Pins | 6 |
| Typical Rise Time | 30μs |
| Typical Fall Time | 40μs |
| Peak Sensor Distance | 5mm |
Key Features
- Features a 5 mm peak sensor distance for effective reflective sensing.
- Includes a phototransistor output device suitable for signal processing.
- Typical rise time of 30 microseconds ensures quick sensor response.
- Typical fall time of 40 microseconds supports rapid signal decay.
- Surface mount (SMD) package with 6 pins for compact PCB integration.
- Operates reliably in temperatures from -40°C to 100°C.
- Packaged in tape and reel format for automated assembly.
- Incorporates a daylight filter to reduce interference in bright environments.
Product Description
ams OSRAM SFH 9206-6/7 surface reflective optical sensor features a built-in 950 nm LED and silicon NPN phototransistor output designed for accurate detection in various industrial applications.
This sensor operates with a peak sensor distance of 5 mm, making it well-suited for position reporting, end position switches, speed regulation, and motion transmitters. Its phototransistor output allows for straightforward signal integration in electronic circuits.
The SFH 9206-6/7 is a surface mount device with a compact form factor measuring 4.2 mm in length, 3.4 mm in width, and 2.1 mm in height. It includes a daylight filter which enhances performance in ambient light conditions. The sensor is rated for operation in a temperature range from -40°C to 100°C, offering reliability in demanding industrial settings.
The sensor has a typical rise time of 30 microseconds and a fall time of 40 microseconds, enabling efficient and quick signal response. It comes packaged in tape and reel format to support automated PCB assembly processes.
Applications include automation systems, machinery control, position sensing, speed measurement, and industrial equipment monitoring. 5 mm peak sensor distance for reflective sensing. Phototransistor output for easy signal detection.
Compact SMD package with 6 pins. Operating temperature range from -40°C to 100°C. Daylight filter included for improved accuracy in bright conditions. Typical rise and fall times of 30 μs and 40 μs respectively. Tape and reel packaging for assembly line readiness.
Manufactured in Malaysia ensuring quality standards. Explore the complete range of Reflective Optical Sensors at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SFH 9206-6/7 has a peak sensor distance of 5 mm, making it effective for reflective sensing applications.
This model features a phototransistor output, which is suitable for straightforward signal processing in electronic circuits.
The typical rise time of the SFH 9206-6/7 is 30 microseconds, while the typical fall time is 40 microseconds, allowing for quick sensor response.
This sensor operates reliably within a temperature range of -40°C to 100°C, suitable for various industrial environments.
The SFH 9206-6/7 has dimensions of 4.2 mm in length, 3.4 mm in width, and 2.1 mm in height, making it compact for PCB integration.
It is packaged in tape and reel format, which supports automated assembly processes on production lines.
This optical sensor is suitable for applications such as position reporting, end position switches, speed regulation, and motion transmitters.
Yes, it includes a daylight filter designed to reduce interference from ambient light, improving its performance in bright conditions.
This model is a surface mount device (SMD), which allows for compact integration on printed circuit boards.
The SFH 9206-6/7 features 6 pins, facilitating its connection in electronic circuits.
This sensor is rated with MSL Level 4, indicating its suitability for various industrial applications.
It is manufactured in Malaysia, ensuring adherence to quality standards.
