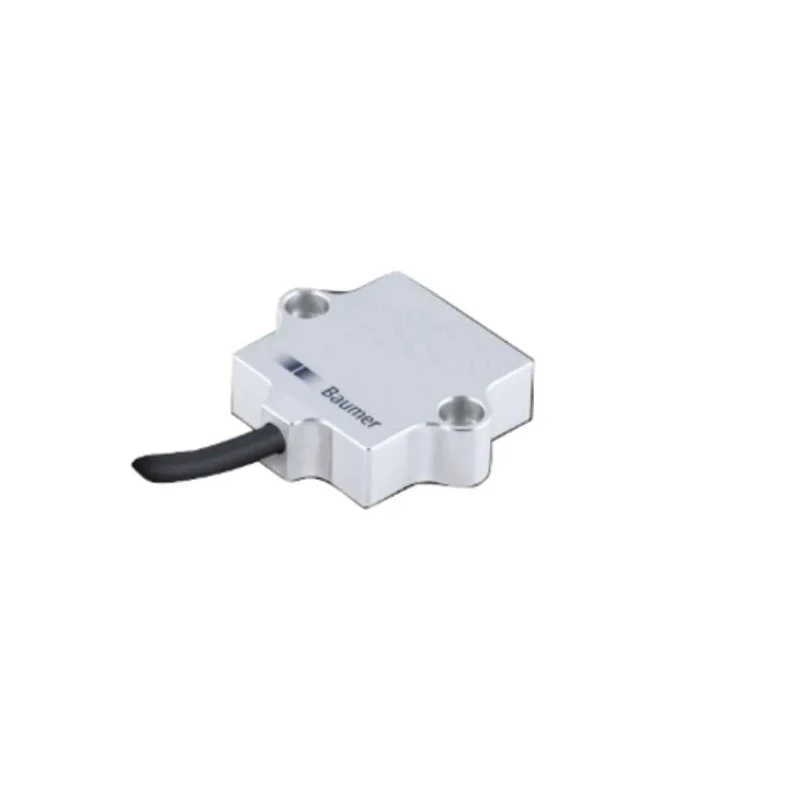

Baumer 1-Axis MEMS Analogue Sensor 8 V to 30 V, 5-Pin, IP67/IP69K, Metal Housing GIM140R-M1060.KC0.A

Baumer GIM140R-M1060.KC0.A is a 1-axis MEMS analogue sensor designed for precise inclination measurement with a full 0 to 360° range. It operates within a supply voltage range of 8 V to 30 V and provides an analogue output through a 5-pin interface. The sensor uses a capacitive MEMS technology, ensuring reliable and stable sensing in industrial environments.

The sensor is housed in a robust metal body that offers protection against short circuits and polarity reversal. It meets rigorous international standards including DIN EN 61000-6-3, DIN EN 61000-6-2, and environmental protections IP 67 and IP 69K, making it suitable for use in harsh and demanding conditions including manufacturing, automation, and automotive testing applications.

The operating temperature ranges from -40° C to +85° C, supporting a wide spectrum of ambient conditions. Its compact dimensions - 48 mm width, 45 mm length, and 14 mm height - allow for easy integration into electronic assemblies and control systems. The sensor draws a low supply current of just 12 mA, enabling efficient power usage.

A 0.3-meter cable is provided for sensor connectivity, facilitating straightforward installation without complex wiring. This device is made in Italy, adhering to strict quality standards and reliability expectations.

The Baumer 1-axis sensor is ideal for applications requiring accurate single-axis tilt measurement such as industrial automation, robotics, laboratory instrumentation, and construction equipment monitoring.

This 1-dimensional inclination sensor has a measuring range of 0 to 360 degrees. MEMS capacitive measurement principle is employed for precise sensing. The sensor is protected against short circuit and polarity reversal for robust usage.

Operating temperature range is from -40° C to +85° C. Ingress protection rating is IP 67/IP 69K, suitable for harsh environments. Physical dimensions include width 48 mm, length 45 mm, and height 14 mm. Supply current is 12 mA ensuring low power consumption.

Equipped with a 0.3 m long cable for easy installation. The device complies with DIN EN 61000-6-3, DIN EN 61000-6-2, DIN EN 60068-2-27, DIN EN 60529 standards. Manufactured in Italy and intended for industrial and electronic sensor integration applications.
