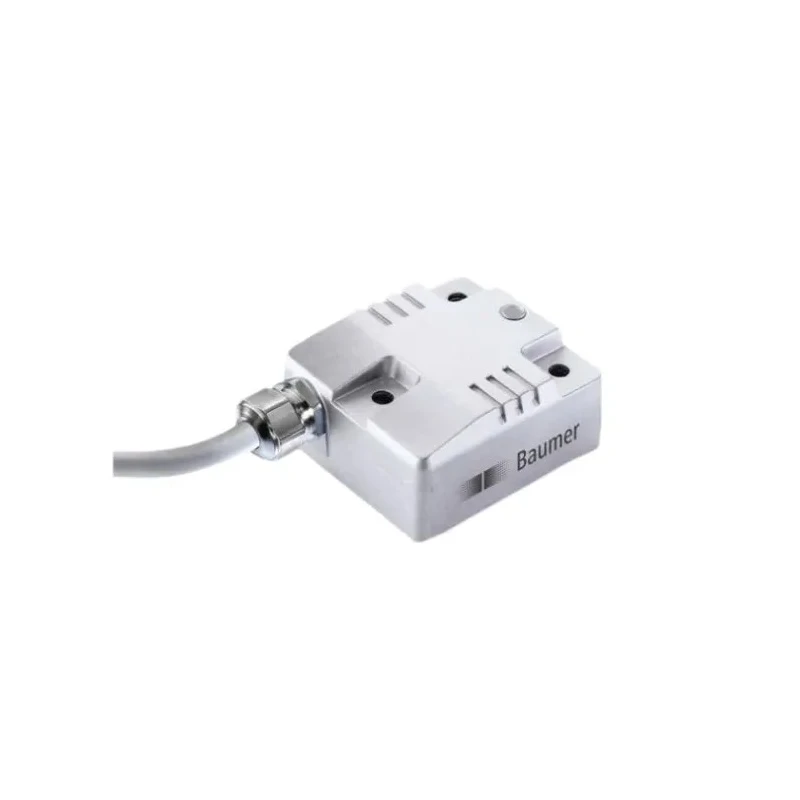

Baumer 2 Axis MEMS Analogue Sensor Metal Package 8-Pin 8 V-36 V Supply Voltage GIM500R-M230.FC4.A

Baumer GIM500R-M230.FC4.A is a precision 2-axis inclination sensor employing MEMS capacitive measuring principle, delivering accurate analogue output for tilt measurement applications. Encased in a robust metal package, this sensor supports supply voltages from 8 V up to 36 V and features an 8-pin connector suitable for industrial environments. It offers a wide measuring range of ±90°, enabling precise angle detection in demanding applications.

The sensor is designed to operate in harsh conditions with an operating temperature range from -40°C to +85°C and is protected against polarity reversal, ensuring high reliability. The compact design, measuring 52 mm in length, 48 mm in width, and 24 mm in height, integrates seamlessly into various equipment. It includes a 1-meter cable with an M12 connector for convenient installation.

Featuring CAN and SAE J1939 interface protocols, the sensor facilitates integration into automotive and industrial networks, providing versatile communication capabilities. It has a low supply current of 40 mA, making it efficient for continuous operation.

With an E1 compliant design standard, Baumer ensures this device meets stringent automotive quality requirements. The sensor is ideal for industrial automation, automotive inclination monitoring, and vibration control applications.

Applications span industrial machinery, automotive systems, agricultural equipment, and environmental monitoring where precise angular measurement is critical. The metal housing ensures durability and long-term stability even under tough operating conditions.

Measures tilt with ±90° range using capacitive MEMS technology. Features analogue output and 8-pin metal housing for robust industrial use. Operates reliably between -40°C to +85°C with 0.5 second response time. Designed with CAN and SAE J1939 interfaces for versatile connectivity.

Compact dimensions of 52 mm length, 48 mm width, and 24 mm height. Supply current is nominally 40 mA, suitable for low power applications. Equipped with M12 connector and 1 m cable for easy integration. Compliant with E1 automotive design standard for quality assurance.

Metal housing protects against polarity reversal and environmental factors. Manufactured in Germany ensuring high quality and performance standards.

This Baumer sensor is essential for precise inclination measurements in motion sensing, suitable for applications in industrial automation, laboratory instrumentation, automotive systems, and environmental monitoring. Explore more products in the Sensors category at EnvMart for additional electronic components and Sensor solutions.
