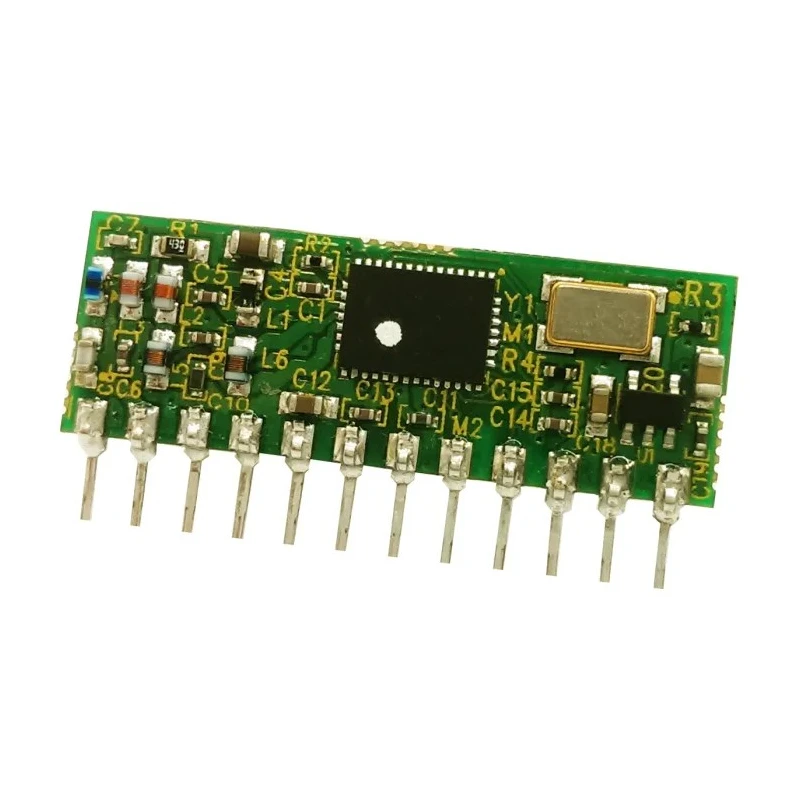

RF Solutions Remote Control Base Station 4 Channels 869.5 MHz FM Modulation KAPPA-T868
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 869.5MHz |
| Range | up to 500m (line of sight) |
| Brand | RF Solutions |
| Dimensions | 31.5 x 11 x 2.5mm |
| Height | 2.5mm |
| Operating Temperature Range | -20 to +55°C |
| Model | KAPPA-T868 |
| Depth | 11mm |
| Width | 31.5mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 4 |
| Receiver Sensitivity | -121dBm |
| Modulation | FM |
| OTA Data Rate | 19200bps |
| RF Carrier frequency | 869.5MHz ISM Band |
| RF Solutions ZPT-8TD RF Module FM 868 MHz 3.6VBrand | RF Solutions |
Key Features
- Compact unit measuring 31.5 x 11 x 2.5 mm suitable for embedded applications.
- Operates reliably within -20°C to 55°C temperature range.
- Features high RF power output of +13 dBm ensuring strong signal transmission.
- Receiver sensitivity of -121 dBm provides excellent range performance up to 500 meters line of sight.
- OTA data rate of 19200 bps with FSK modulation supports secure telemetry communication.
- Supports UART serial output and pairing with up to 70 transmitters for versatile control.
- Designed for use in remote control and digital telemetry industrial applications.
- Includes serial UART output, learn switch input, and self-test mode for diagnostic convenience.
Product Description
RF Solutions KAPPA-T868 Remote Control Base Station is a sub-1GHz RF telemetry receiver module designed for remote control systems and digital telemetry with a frequency of 869.5 MHz in the ISM band and FM modulation.
It features a compact form factor with dimensions 31.5 x 11 x 2.5 mm and a robust operating temperature range from -20°C to 55°C, making it suitable for various industrial and commercial environments.
This module delivers an RF power output of +13 dBm and a receiver sensitivity of -121 dBm, providing reliable communication up to 500 meters line of sight. The Over-The-Air (OTA) data rate supports speeds of 19200 bps using FSK modulation, ensuring efficient and secure data transmission.
Equipped with a UART serial interface, it outputs all received data and supports one-to-one pairing with up to 70 transmitters, each capable of 16 button presses. Additional features include a learn switch input, RF activity LED connector, transmitter battery status output, and a self-test mode to assist in diagnostics.
The power supply voltage is flexible from +1.8 V to +3.6 V DC for easy integration into existing systems. Typical applications of the KAPPA-T868 include remote control systems, digital telemetry in industrial automation, security systems, and wireless data acquisition.
Compact design measuring 31.5 x 11 x 2.5 mm for easy installation. Operates within -20°C to +55°C for versatile environments. High output power of +13 dBm enables extended signal range. Excellent receiver sensitivity of -121 dBm for reliable communication.
Supports up to 4 channels and pairing with 70 transmitters. UART serial output allows for integration with digital systems. Over-The-Air data rate of 19200 bps with FSK modulation. Flexible power supply from +1.8 to +3.6 V DC.
Includes features like learn switch input and self-test mode. Explore EnvMart's extensive range of Remote Control Base Stations and wireless telemetry modules for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -20°C to +55°C.
The RF power output is +13 dBm, ensuring strong signal transmission.
It uses FM modulation for communication.
The receiver sensitivity is -121 dBm, which provides excellent range performance.
The OTA data rate is 19200 bps, supporting efficient data transmission.
It measures 31.5 x 11 x 2.5 mm, making it compact for embedded applications.
It requires a flexible power supply voltage ranging from +1.8 V to +3.6 V DC.
It includes a learn switch input and a self-test mode for diagnostic convenience.
It is designed for use in remote control systems and digital telemetry in industrial applications.
It provides UART serial output, allowing for integration with digital systems.
