Steute Remote Control Base Station Receiver 4 Channels 868.3 MHz 250 V RF Rx SW868 4S 24VDC

Free Delivery in India | Lowest Global Shipping Charges

Steute Remote Control Base Station Receiver 4 Channels 868.3 MHz 250 V RF Rx SW868 4S 24VDC

Name: Steute Remote Control Base Station Receiver 4 Channels 868.3 MHz 250 V RF Rx SW868 4S 24VDC
Brand: Steute
SKU: 145378
Price: 461.63 USD
Availability: InStock



Category Remote Control Base Station Brand Steute Condition New

Specifications

Country of Origin	Germany
Frequency	868.3MHz
Brand	Steute
Height	69.5mm
Model	RF Rx SW868 4S 24VDC
Depth	69.5mm
Width	22.6mm
Maximum Operating Temperature	55°C
Sub Type	Receiver
Minimum Operating Temperature	0°C
Number Of Channels	4
Nominal Supply Voltage	250 V

Key Features

Operates with 4 relay outputs rated up to 3 A each for reliable switching.
Utilizes sWave wireless protocol designed for safety-related industrial applications.
Low energy consumption enhances operating efficiency.
Capabilities include fast link connection and easy programming via teach buttons.
Equipped with SMA plug-in connector for external antenna adaptation.
Mountable on DIN Rail for convenient industrial installation.
Built to operate within 0°C to 55°C temperature range.
Compliance with EN standards including EN 60947-5-1 and EMC standards.

Product Description

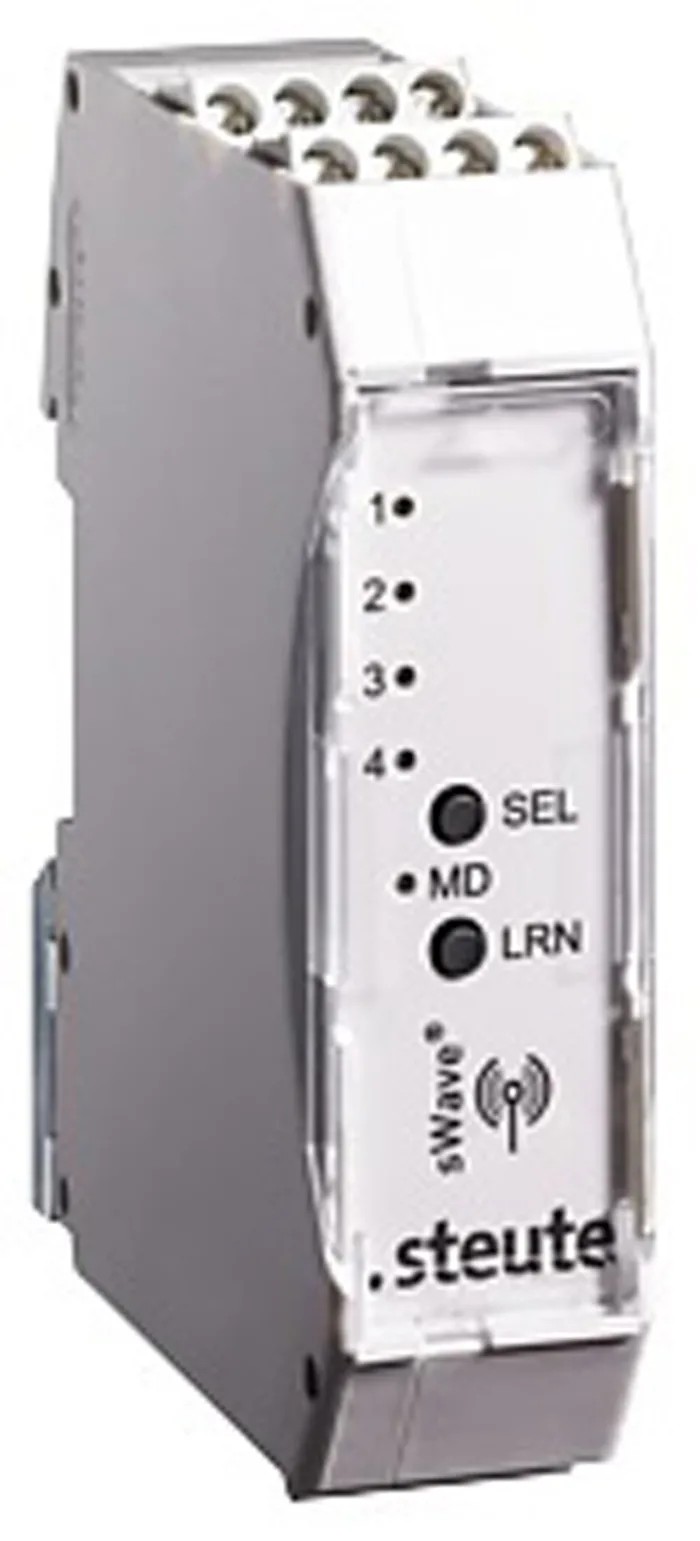

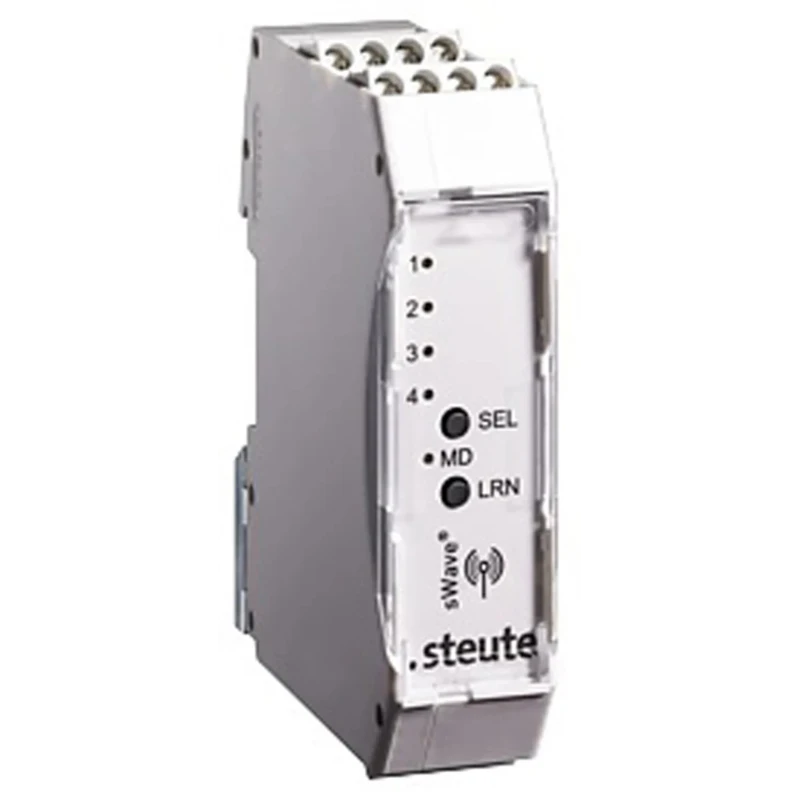

Steute RF Rx SW868 4S 24VDC Remote Control Base Station Receiver operates at 868.3 MHz frequency with a nominal supply voltage of 250 V. This high-quality receiver is designed for industrial and safety-related applications, providing a reliable wireless control solution with four relay outputs that feature LED indication for switching state.

The device uses the advanced sWave wireless technology, ensuring manageable and practicable wireless communication developed for demanding safety applications. It offers low energy consumption and fast link connection saving energy and setup time. Programming is user-friendly via integrated teach buttons.

The receiver also includes an SMA plug-in connector for an external antenna, enhancing signal reception and flexibility in diverse industrial environments. Its robust DIN Rail mounting ensures easy integration into control cabinets and electrical enclosures.

Designed to function reliably from 0°C up to 55°C, the compact unit measures 22.6 mm in width, 69.5 mm in height, and 69.5 mm in depth, making it suitable for installation in constrained spaces.

4 relay outputs each rated for maximum 3 A switching. Compliance with EN standards: EN 60947-5-1, EN 301 489-1, EN 61000-4-2, EN 61000-6-2. Utilizes sWave wireless technology optimized for safety-related industrial use. Low energy requirement supports efficient operation.

Fast wireless link connection for instant responsiveness. Easy-to-use teach buttons for programming. SMA connector allows flexible external antenna deployment. Compact DIN Rail mount design suitable for industrial installations.

Operating temperature range 0°C to 55°C.

This remote control base station is ideal for industrial automation, manufacturing safety systems, process control, building automation, and other commercial applications requiring dependable wireless control of machinery and equipment.
