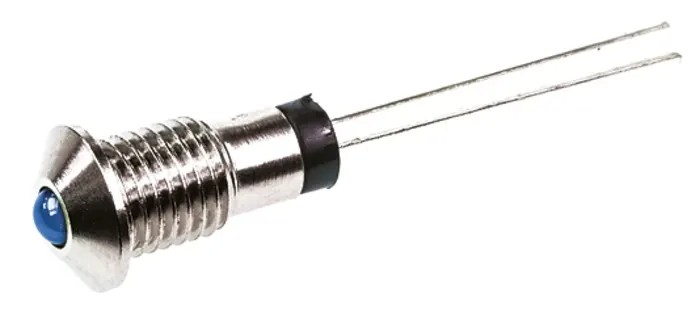

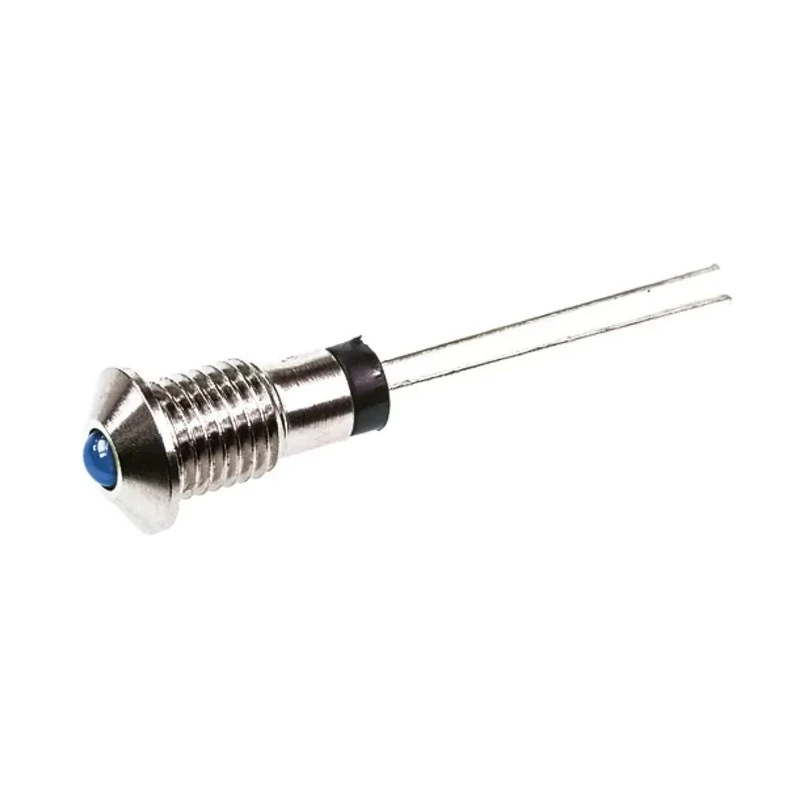

Marl Blue LED Panel Mount Indicator 570 Series 6 mm 4.5V Lead Pin Termination 570-320-04
Specifications
| Country of Origin | China |
|---|---|
| Brand | Marl |
| Length | 15.1mm |
| Series | 570 |
| Maximum forward current | 25mA |
| Viewing angle | 35 ° |
| Sub Type | LED |
| Terminal type | Lead Pin |
| Lens Colour | Blue |
| Luminous Intensity | 10mcd |
| Standards/Approvals | CE, UKCA, RoHS |
| LED Colour | Blue |
| Lens Finish | Diffused |
| Maximum Supply Voltage | 4.5V |
| Minimum Supply Voltage | 4V |
| Mount Hole Size | 6 mm |
| Multicolour/Single Colour | Single Colour |
Key Features
- Features diffused blue LED lens with 6 mm mounting hole size.
- Operates on DC voltage with a minimum supply voltage of 4V and maximum voltage of 4.5V.
- Maximum forward current rating of 25mA ensures efficient operation.
- Offers 10mcd luminous intensity and a viewing angle of 35° for clear visibility.
- Constructed with nickel plated brass housing for durability and corrosion resistance.
- Complies with CE, UKCA, and RoHS standards for safety and environmental adherence.
- Ideal for panel mount applications requiring single colour blue LED indicators.
- Requires a suitable series resistor for current limiting to prevent damage.
Product Description
Marl 570-320-04 Panel Mount Indicator is a blue LED indicator designed for use in electronic panels and control systems. Operating at 4.5V with lead pin termination, this device fits a 6 mm cut-out, accommodating panel mounting requirements with precision.
Manufactured with a nickel plated brass housing, it provides corrosion resistance and robust mechanical strength. The diffused blue lens offers a soft, evenly distributed light output, making it highly visible even in varied lighting conditions.
Designed specifically for DC voltage applications, it has a minimum supply voltage of 4V and a maximum forward current of 25mA, delivering 10mcd luminous intensity with a 35° viewing angle. These indicators are compliant with CE, UKCA, and RoHS standards, ensuring product safety and environmental compliance.
The indicator series 570 is ideal for industrial, laboratory, commercial, and general electronic panel use cases, where reliable and clear visual indication is necessary for operational status or alerts.
Note that operation without a suitable series resistor or current-limiting device is not recommended, as this protects the LED from overcurrent and prolongs its lifespan. Diffused blue LED lens with 6 mm mounting hole size.
Lead pin termination for secure electrical connection. Nickel plated brass housing for durability. Operating voltage: 4 - 4.5 V DC supply. Maximum forward current of 25mA, ensuring efficient performance. Luminous intensity rating of 10mcd for clear visibility.
Viewing angle of 35 degrees for wide field indication. Compliant with CE, UKCA, and RoHS certifications. Length of 15.1 mm suitable for panel integration.
For detailed technical data and mounting guidelines, consulting product datasheets and certificates is recommended. This panel mount indicator is widely used in automation, control panels, instrumentation, and electronic equipment.
Browse more options in the Panel Mount Indicator category at EnvMart for your industrial and commercial panel signaling needs.
