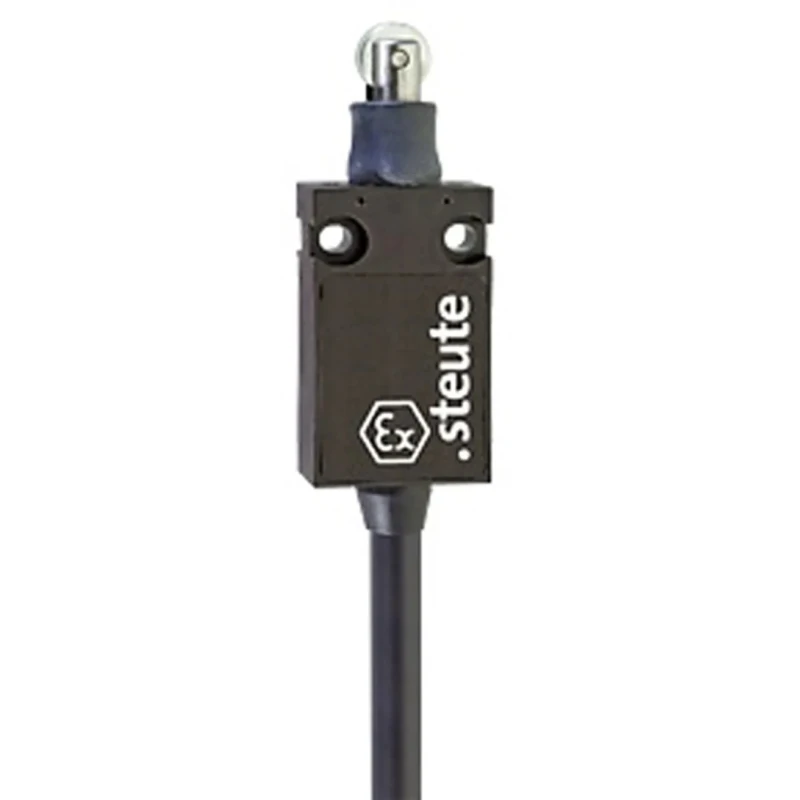

Steute Ex 14 Series Roller Plunger Limit Switch, 1 NO/1 NC Contact, Fibreglass Reinforced Thermoplastic Housing, 250V AC IP65
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Steute |
| Length | 762mm |
| Model | IP65 |
| Depth | 406.4mm |
| IP Rating | IP65 |
| Width | 1.96m |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | Ex 14 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -20°C |
| Switching Current | 6A |
| Terminal type | Cable |
| Hazardous Area Certification | IECEx |
| Standards/Approvals | RoHS |
| Mechanical Life | 1000000Cycles |
| Switching DC Voltage | 230V dc |
| Switching AC Voltage | 250V ac |
Key Features
- The switch features one normally open and one normally closed contact configuration.
- Constructed with a fibreglass reinforced thermoplastic housing for durability and insulation.
- Rated for switching currents up to 6 amperes and voltage up to 250 volts AC.
- Designed for operation within a temperature range from -20°C to +75°C.
- Suitable for vertical mounting with mechanical life rating of 1,000,000 cycles.
- Certified for hazardous areas according to IECEx standards.
- Includes a pre-wired cable for straightforward installation.
- Complies with RoHS environmental standards.
Product Description
Steute Ex 14 WR 1O/1S-5m limit switch is designed for precise position monitoring and control of moving machine parts in industrial environments. This series features a roller plunger actuator with a robust fibreglass reinforced thermoplastic enclosure offering IP65 ingress protection to withstand dust and water jets.
It contains one normally open and one normally closed slow action contact for reliable switching. Suitable for applications requiring safety guard monitoring and control, the switch operates at AC voltages up to 250 volts and DC voltages up to 230 volts with a switching current of 6 amperes.
Engineered for durability, the switch offers a mechanical life expectancy of one million cycles and supports vertical mounting orientation. The operating temperature range from -20°C to 75°C enables use in diverse industrial conditions including hazardous areas certified by IECEx compliance.
The thermoplastic enclosure is double insulated, enhancing electrical safety, while the pre-wired cable simplifies integration in control panels or machine systems. This limit switch series meets RoHS directives reflecting environmentally responsible manufacturing.
The switch features one normally open and one normally closed contact configuration. Fibreglass reinforced thermoplastic housing ensures mechanical and electrical robustness. Provides IP65 rated protection for dust and water resistance.
CERTIFIED IECEx for hazardous area suitability. Switching current capacity up to 6A at 250V AC. Mechanical lifetime of 1,000,000 cycles ensures long service. Pre-wired cable enables straightforward installation in vertical orientation.
Used extensively in industrial automation, machinery safety monitoring, and process control, the Steute Ex 14 series limit switches deliver reliable performance to help maintain operational safety and compliance. Explore more Limit Switches and industrial control components through EnvMart.
